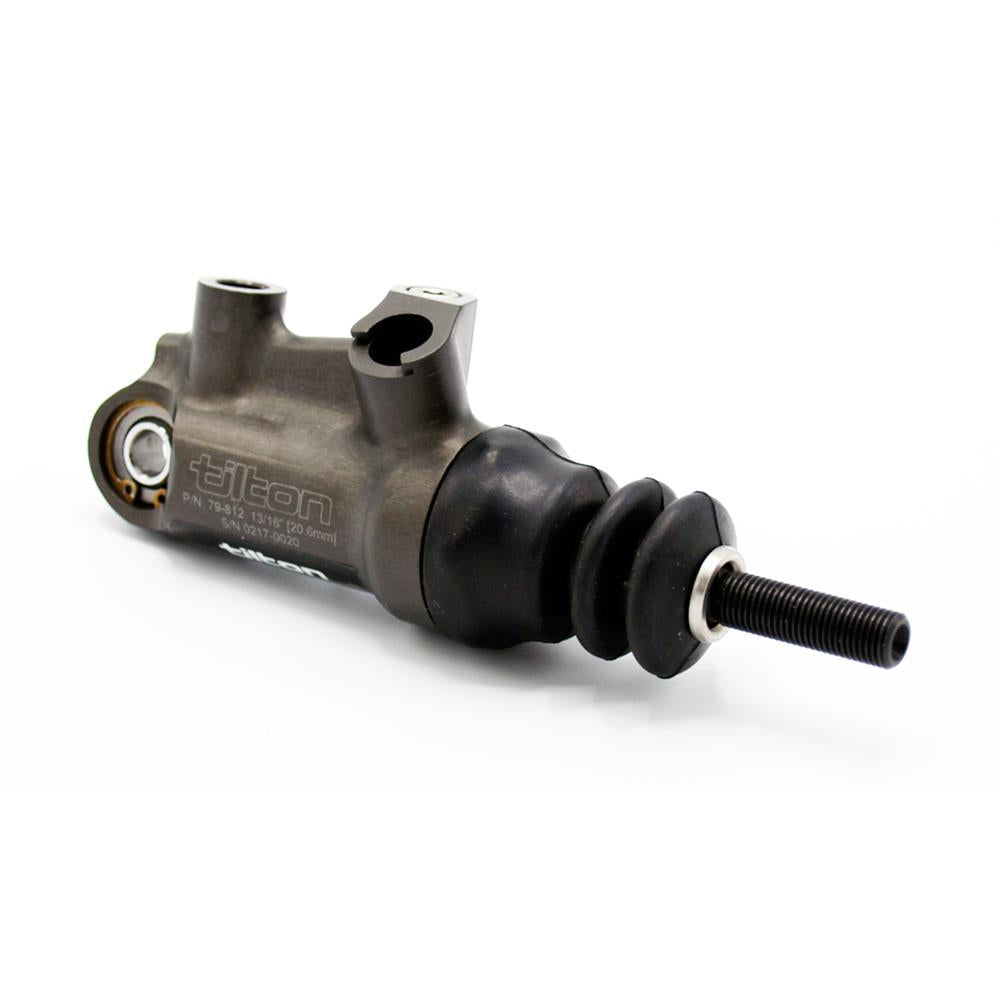

Tilton 79-Series Master Cylinders 79-700

Tilton 79-Series master cylinders are specifically designed for use with motorsport ABS systems. Unlike traditional master cylinders, these units do not utilize a conventional cutoff port and, instead, feature a new port strategy with a mechanically opened cut-off/compensation path. Elimination of the cutoff port greatly reduces the chance of seal damage caused by high-pressure pulsations from the ABS system. The 79-Series master cylinders are available in a variety of bore sizes. Choose the model that best fits your application.

Product details:

* Directly interchangeable with Tilton 77- and 78-Series master cylinders
* Billet aluminum body with proprietary low-friction coatings minimize wear and provide smooth operation
* Rear spherical bearing mount and one-piece piston/pushrod eliminates side thrust into the master cylinder bore, providing consistent and repeatable braking
* Hand-built, blueprinted, and function-tested
* Serialized and recorded into Tilton build database
* -3 AN outlet port
* Male -4 AN O-ring seal inlet swivel fitting

Brand: Tilton Engineering
Manufacturer's Part Number: 79-700
Part Type: Master Cylinders
Product Line: Tilton 79-Series Master Cylinders
HP Direct Part Number: TIL-79-700
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.700 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: -3 AN
Master Cylinder Material: Aluminum
Master Cylinder Finish: Gray/Silver
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: No
Reservoir Included: No
Master Cylinder Cap Included: No
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Fits Tilton 800-Series and 900-Series pedal assemblies/balance bars.
