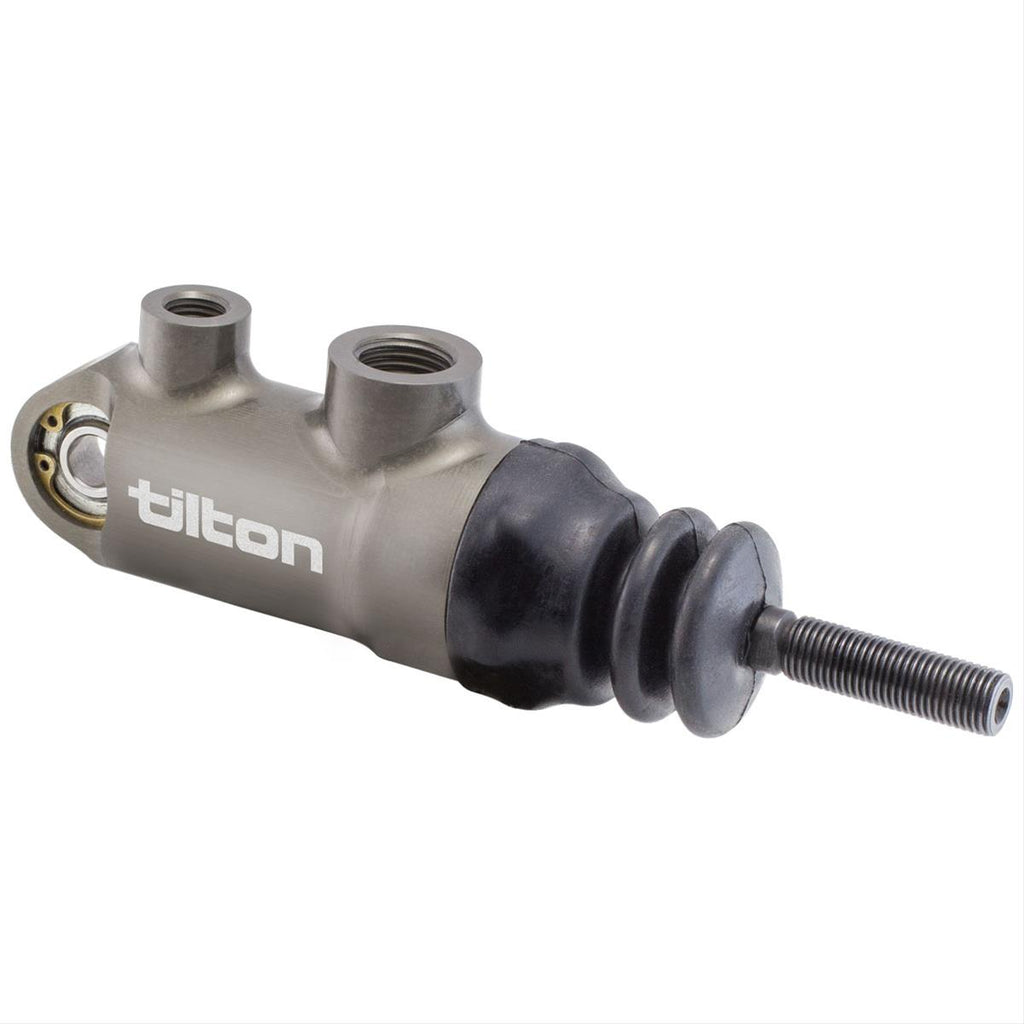

Tilton 78-Series Master Cylinders 78-1000

Tilton 78-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking.

Tilton 78-Series master cylinders feature:

* Directly interchangeable with 77-Series master cylinders
* Billet aluminum body with proprietary low-friction coatings minimize wear and provides smooth operation
* Hand-built and blueprinted for cut-off port travel
* External dust boot included
* O-ring seal at the main rod guide and body interface
* Seven bore sizes available
Brand: Tilton Engineering
Manufacturer's Part Number: 78-1000
Part Type: Master Cylinders
Product Line: Tilton 78-Series Master Cylinders
HP Direct Part Number: TIL-78-1000
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 1.000 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: -3 AN
Master Cylinder Material: Aluminum
Master Cylinder Finish: Gray/Silver
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: Yes
Reservoir Included: No
Master Cylinder Cap Included: No
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Designed specifically for use with Tilton 900-series pedal assemblies and balance bars.
