Description

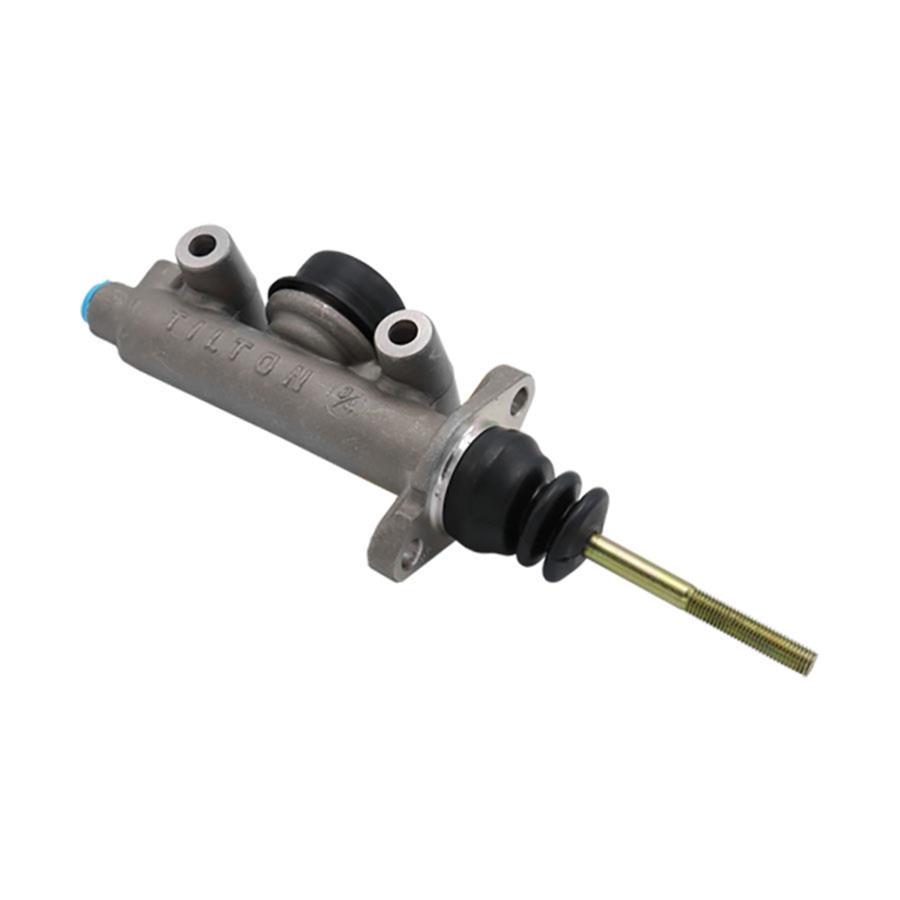

Tilton 74-Series master cylinders have been continuously improved upon since their introduction way back in 1986. These aluminum brake cylinders are a trusted favorite of car builders and race teams, due to their reliability and value. The units are compatible with front, rear, disc, or drum brakes. Order the bore size needed for your application.Brand: Tilton Engineering
Manufacturer's Part Number: 74-812
Part Type: Master Cylinders
Product Line: Tilton 74-Series Master Cylinders
HP Direct Part Number: TIL-74-812
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.812 in.
Power Brake Compatible: No
Outlet Quantity: 2
Outlet Size 1: -3 AN
Outlet Size 2: -3 AN
Master Cylinder Material: Aluminum
Master Cylinder Finish: Clearcoat
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: No
Reservoir Included: No
Master Cylinder Cap Included: No
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
Manufacturer's Part Number: 74-812
Part Type: Master Cylinders
Product Line: Tilton 74-Series Master Cylinders
HP Direct Part Number: TIL-74-812
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.812 in.
Power Brake Compatible: No
Outlet Quantity: 2
Outlet Size 1: -3 AN
Outlet Size 2: -3 AN
Master Cylinder Material: Aluminum
Master Cylinder Finish: Clearcoat
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: No
Reservoir Included: No
Master Cylinder Cap Included: No
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
