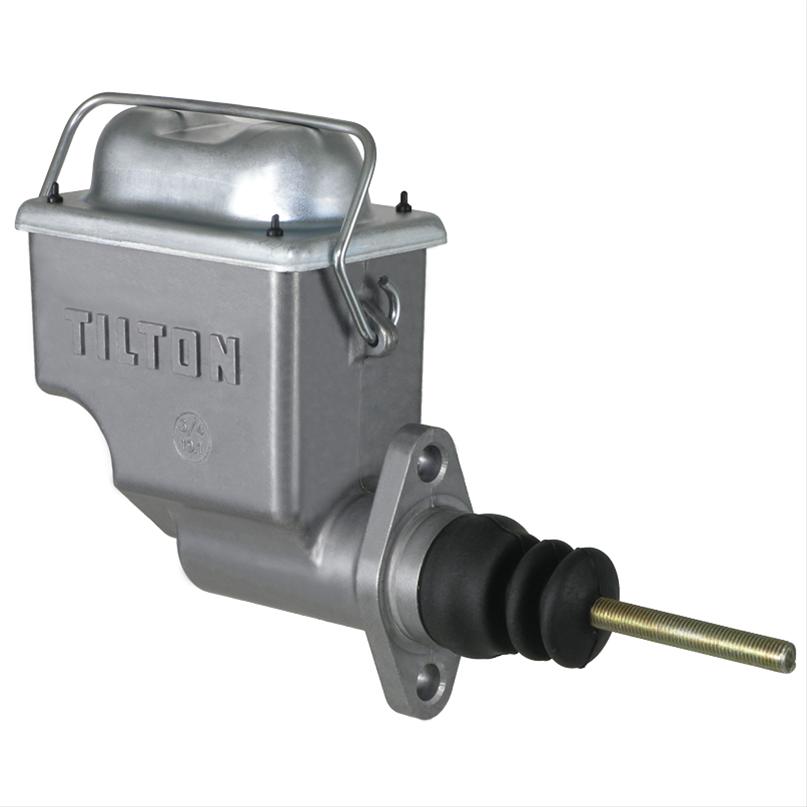

Tilton 73-Series Master Cylinders 73-750

Tilton 73-Series master cylinders are designed for applications that require large brake fluid capacity in a leakproof integral reservoir. They are manufactured from high-pressure, die-cast aluminum and provide a machined-look finish. The integral 10 oz. reservoir offers plenty of fluid capacity and uses an easy-to-remove lid held on by a high-tensile steel spring that provides consistent clamping force. Increase stopping power with one of these Tilton 73-Series master cylinders.Brand: Tilton Engineering
Manufacturer's Part Number: 73-750
Part Type: Master Cylinders
Product Line: Tilton 73-Series Master Cylinders
HP Direct Part Number: TIL-73-750
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.750 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 1/8 in. NPT
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: No
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
