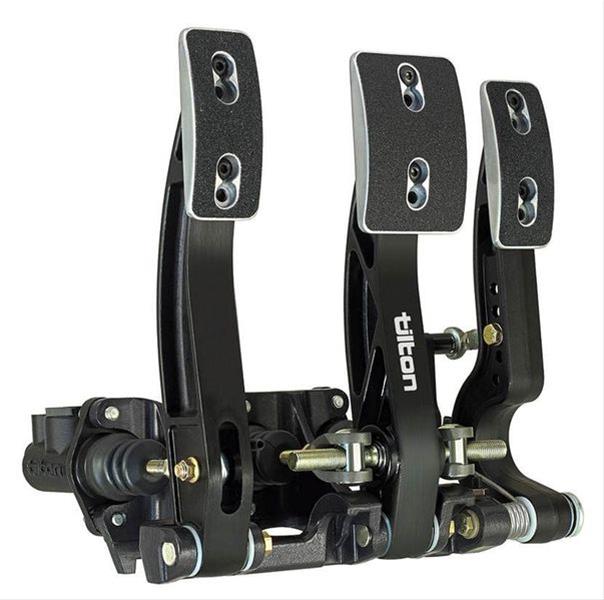

Tilton 600-Series Floor-Mount Pedal Assemblies 72-603

Tilton 600-series floor-mount pedal assemblies are engineered for performance excellence. Fully optimized for strength, stiffness, and weight using FEA software, Tilton 600-Series floor mounts feature a large-diameter traditional balance bar design allowing front/rear brake adjustments and minimal flex for a more solid pedal feel/response. Plus, these floor-mount pedal assemblies have lightweight aluminum frames with guide ramps to reduce balance bar tipping and by doing so brake repeatability is improved. The adjustable pedal ratios enable the brake pedal to be tuned to your preference without having to change master cylinder bore size. Whether vying to be the best in road racing, drifting, drag racing, on the street, or off-road, Tilton 600-series pedal assemblies will provide your competitive spirit with high performance to fit your budget.

Tilton 600-series features:

* Forged aluminum pedals
* Adjustable foot pads with anti-slip surfaces
* PTFE-coated aluminum clevises reduce friction
* Pedal pivots with wave washers
* Oil impregnated bronze bushings decrease stiction
* Adjustable clutch pedal stop
* Adjustable throttle pedal stops (3-pedal model)
Brand: Tilton Engineering
Manufacturer's Part Number: 72-603
Part Type: Pedal Assemblies
Product Line: Tilton 600-Series Floor-Mount Pedal Assemblies
HP Direct Part Number: TIL-72-603
Pedal Type: Throttle/Brake/Clutch
Pedal Mounting Location: Floor mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Black
Pedal Color: Black anodized
Balance Bar Included: Yes
Master Cylinder Style: Dual
Quantity: Sold individually.
Notes: Pedal ratio can be set at 5.29:1, 5.44:1, 5.61:1, or 5.75:1.
