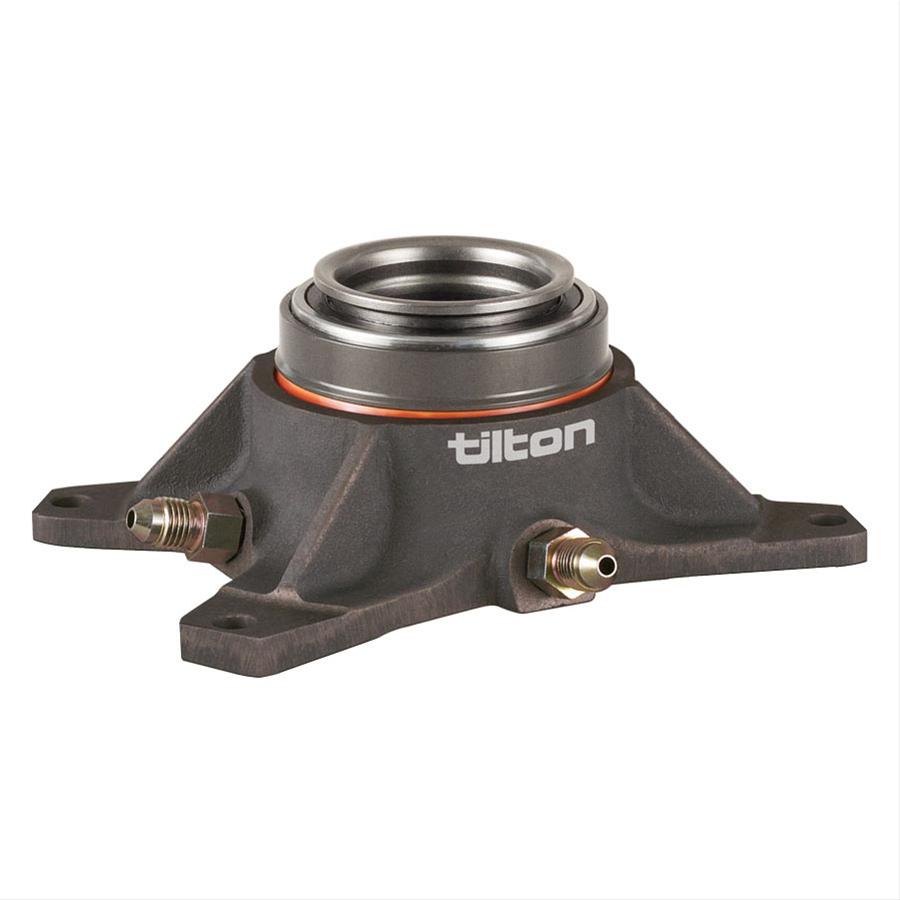

Tilton 5200-Series Hydraulic Throwout Bearings 60-5260

With race-proven Tilton reliability for the street, the 5000-Series hydraulic release bearings (HRB) are designed for low-profile, 4-bolt applications—and are optimal for direct mounting inside the bellhousing. These throwout bearings feature a 44mm radius-face contact bearing diameter ideal for 5.5 in.-7.25 in. clutches. Precision-machined from superior lightweight aluminum and treated with a durable, low-friction coating, the light, yet strong and durable hydraulic throwout bearings deliver winning results, time and time again.

Product features:

* Unique monoseal multi-edged, quad-tension seal
* Resilient orange seal for wipe seal debris prevention
* Constant contact design means your system is always ready to engage
* Self-adjusting to maintain the same pedal feel, shift after shift


Brand: Tilton Engineering
Manufacturer's Part Number: 60-5260
Part Type: Throwout Bearings
Product Line: Tilton 5200-Series Hydraulic Throwout Bearings
HP Direct Part Number: TIL-60-5260
Pressure Plate Style: Diaphragm
Throwout Bearing Style: Hydraulic
Throwout Bearing Type: Standard
Quantity: Sold individually.
Notes: 4-bolt mounting pattern. For use with 5.5 in. to 7.25 in. racing clutches only. Overall height is 2.47 in. without shims and 2.52 in. with shims. Radius face bearing features a contact diameter of 1.75 in.
