Description

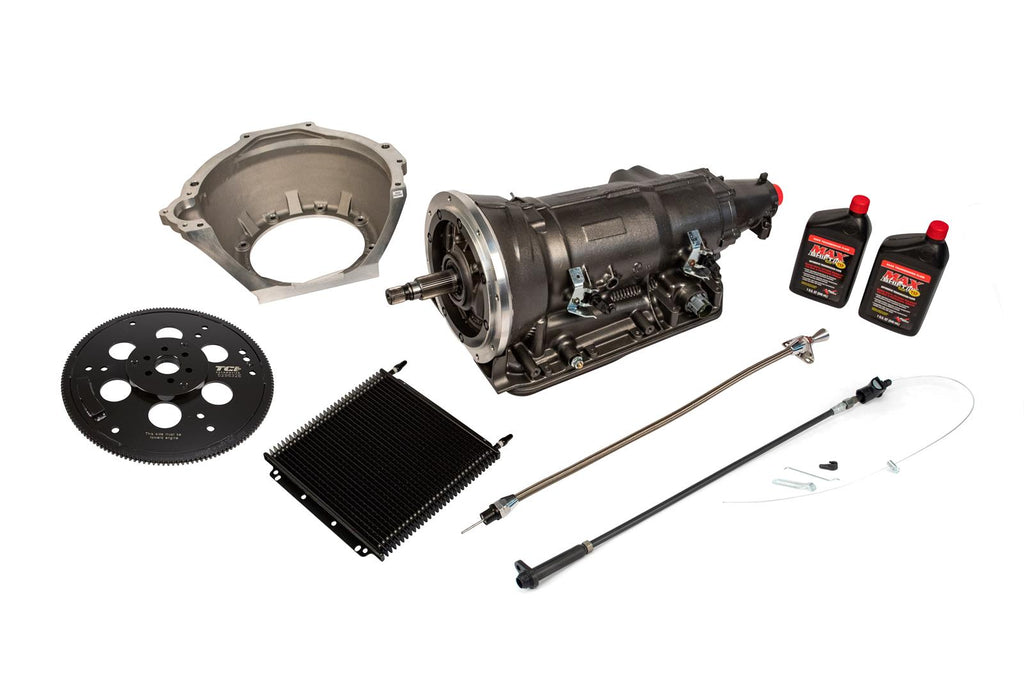

TCI 4x Four-Speed GM automatic transmission packages for externally balanced small block Fords allow you to bolt up your Ford engine to TCI's 4x Four-Speed electronically controlled 4L80E-based transmission or their non-electronic 700R4-based transmission. Bolting right up to your engine like a stock transmission, they make it easy to adapt either of these proven transmissions to any compatible engine by including the exact bellhousing, a special adapter flexplate, pilot adapter, dipstick, and other accessories in a complete package.
The 700R4-based transmission uses a Constant Pressure Valve Body to eliminate the need for careful TV cable tuning, the most common cause of 700R4 transmission failure. If you choose the 4L80E-based 4x transmission, these controls are handled electronically by your choice of the TCI EZ-TCU, TCU 2.0, or a factory GM transmission controller. All 4x Four-Speed transmissions are automatic overdrive 4-speeds with lock-up, so simply choose the one that fits your power level.
Brand: TCI Auto
Manufacturer's Part Number: 371700P12
Part Type: Automatic Transmissions
Product Line: TCI 4x Four-Speed GM Automatic Transmission Packages
HP Direct Part Number: TCI-371700P12
UPC: 788120162319
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Ford
Transmission Shift Pattern: Forward
Valve Body Style: Automatic
Transmission Advertised Horsepower Rating: 550
Torque Converter Included: No
Flexplate Included: Yes
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: Yes
Trans-Brake Included: No
Lockup Compatible: Yes
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Chrome
Tailshaft Length (in.): 6.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 27
Input Shaft Material: Hardened steel
Input Shaft Style: TH700R4
First Gear Ratio (Automatic Transmissions): 3.06
Clutch Hub: Aluminum
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Gray
Transmission Shield Built In: No
Flexplate Shield Built In: No
Transmission Fluid Included: Yes
Transmission Fluid Quantity Included: 2 qt.
Dipstick Included: Yes
Remanufactured: No
Quantity: Sold as a kit.
Notes: Kits includes 28 oz. flexplate.
The 700R4-based transmission uses a Constant Pressure Valve Body to eliminate the need for careful TV cable tuning, the most common cause of 700R4 transmission failure. If you choose the 4L80E-based 4x transmission, these controls are handled electronically by your choice of the TCI EZ-TCU, TCU 2.0, or a factory GM transmission controller. All 4x Four-Speed transmissions are automatic overdrive 4-speeds with lock-up, so simply choose the one that fits your power level.
Brand: TCI Auto
Manufacturer's Part Number: 371700P12
Part Type: Automatic Transmissions
Product Line: TCI 4x Four-Speed GM Automatic Transmission Packages
HP Direct Part Number: TCI-371700P12
UPC: 788120162319
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Ford
Transmission Shift Pattern: Forward
Valve Body Style: Automatic
Transmission Advertised Horsepower Rating: 550
Torque Converter Included: No
Flexplate Included: Yes
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: Yes
Trans-Brake Included: No
Lockup Compatible: Yes
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Chrome
Tailshaft Length (in.): 6.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 27
Input Shaft Material: Hardened steel
Input Shaft Style: TH700R4
First Gear Ratio (Automatic Transmissions): 3.06
Clutch Hub: Aluminum
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Gray
Transmission Shield Built In: No
Flexplate Shield Built In: No
Transmission Fluid Included: Yes
Transmission Fluid Quantity Included: 2 qt.
Dipstick Included: Yes
Remanufactured: No
Quantity: Sold as a kit.
Notes: Kits includes 28 oz. flexplate.
