Summit Racing™ LS Engine Swap Kits 08-0131

Brand: Sikky Manufacturing
Manufacturer's Part Number: 08-0131
Part Type: Engine Swap Kits
Product Line: Summit Racing™ LS Engine Swap Kits
Automotive Fittings Part Number: CMB-08-0131

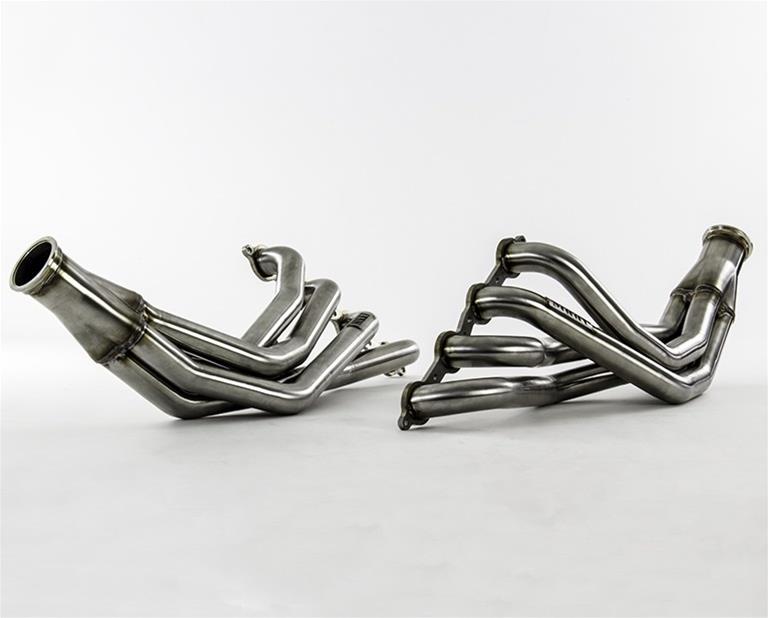

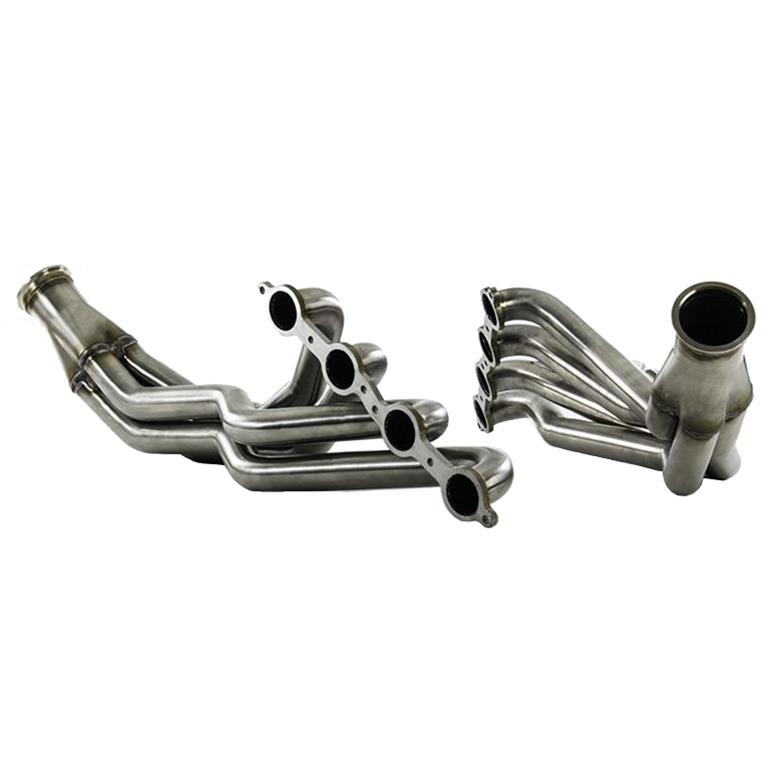

Headers Included: Yes
Header Material: 304 stainless steel
Header Color: Natural
Header Style: Long tube one-piece
Primary Tube Outside Diameter (in.): 1 7/8 in.
Primary Tube Gauge: 16-gauge
Collector Diameter (in.): 3.00
Collector Attachment: Slip fit
Flange Thickness (in.): 0.38 in.
Tuned: No

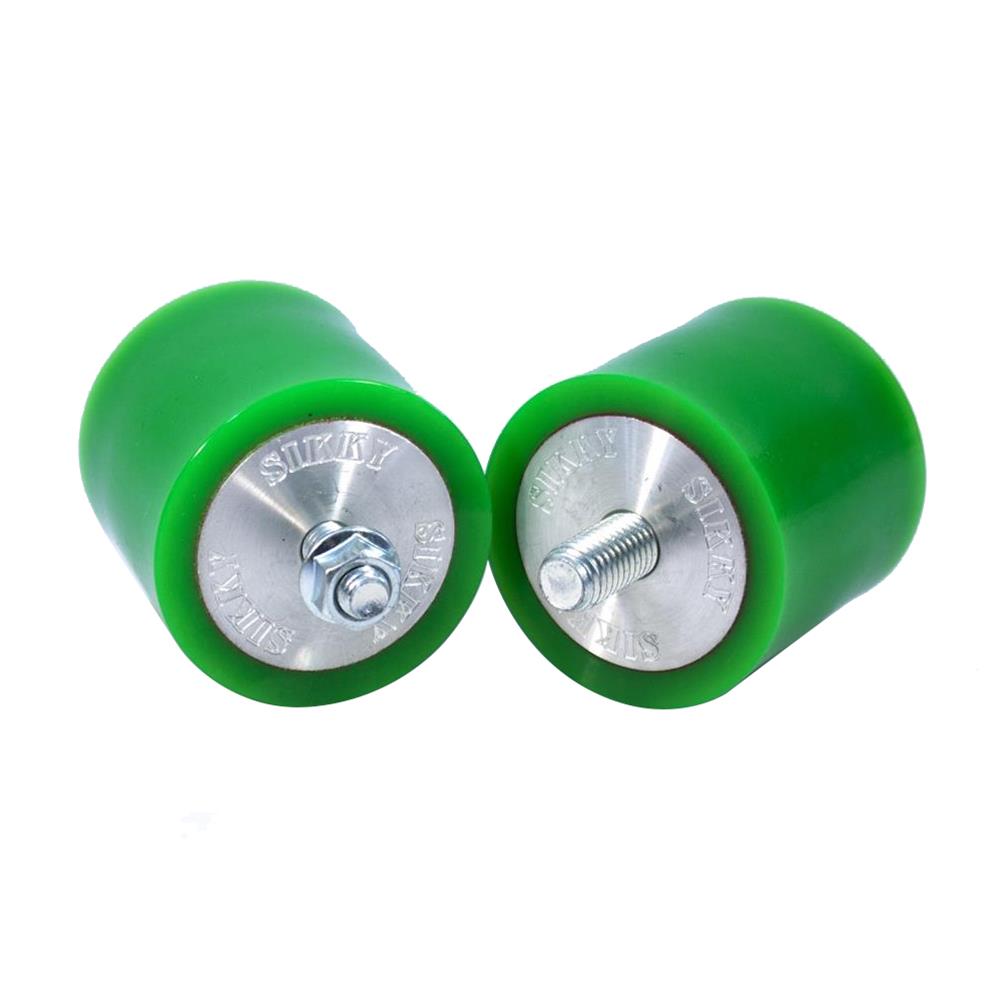

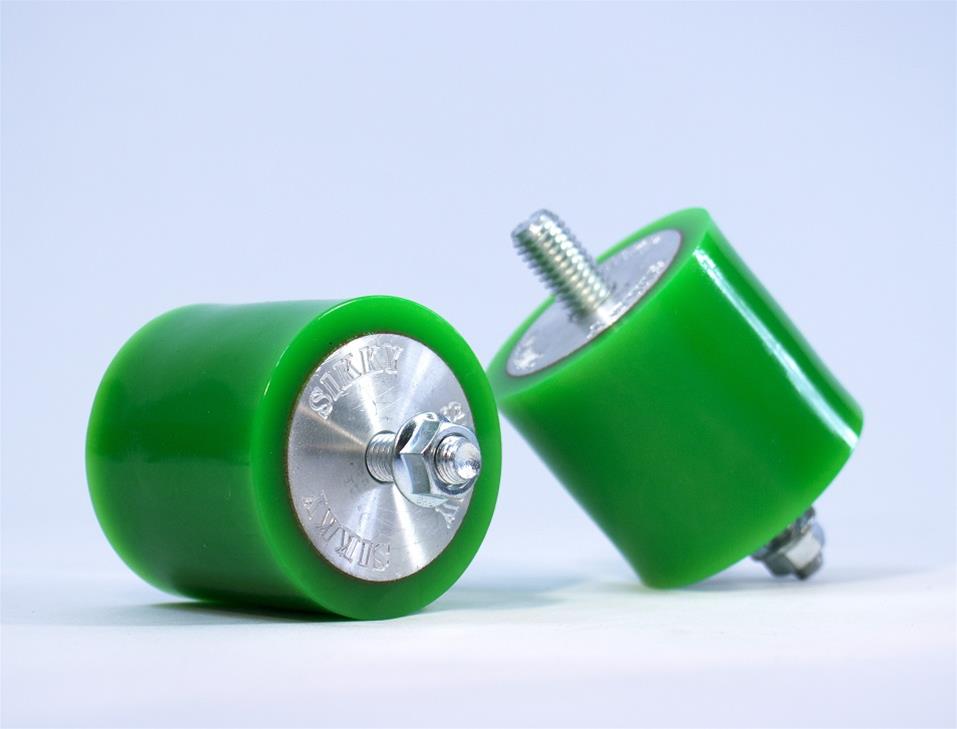

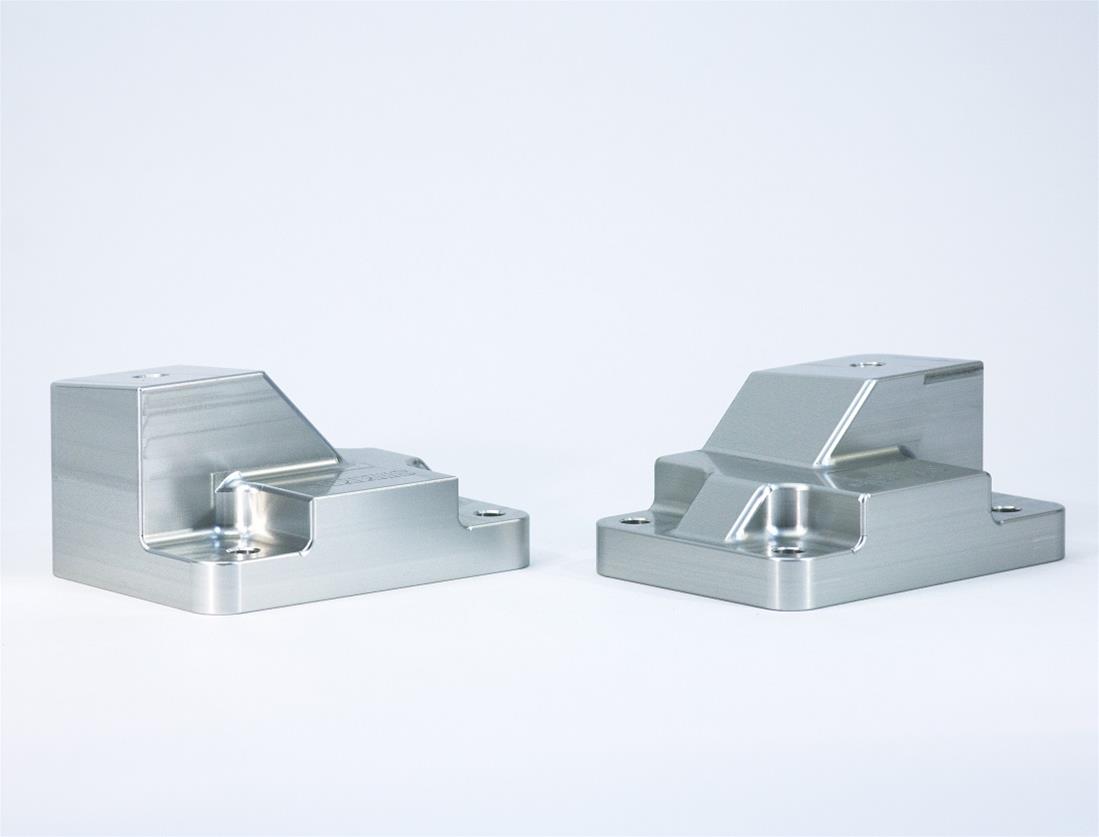

Motor Mounts Included: Yes

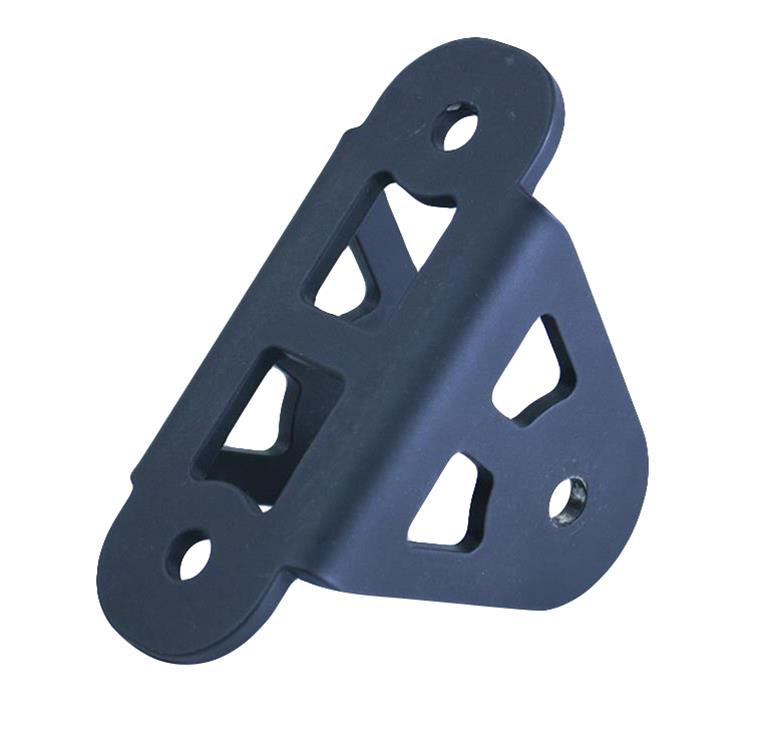

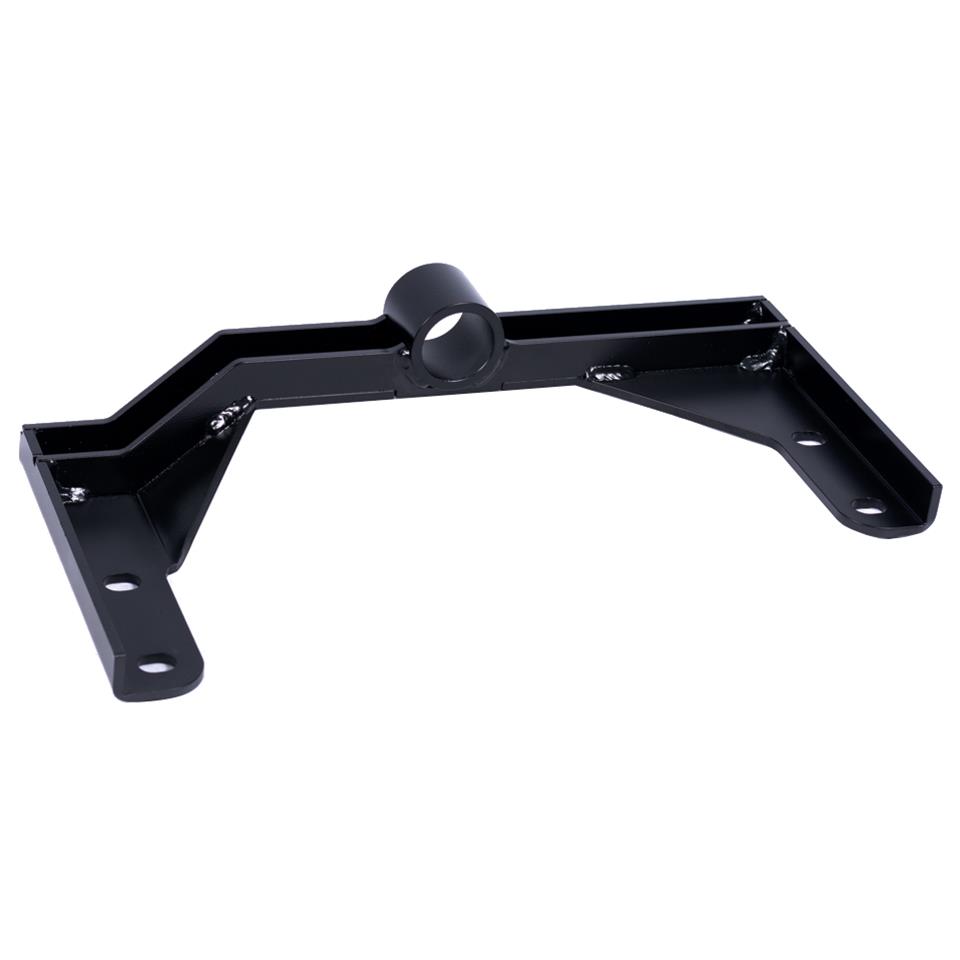

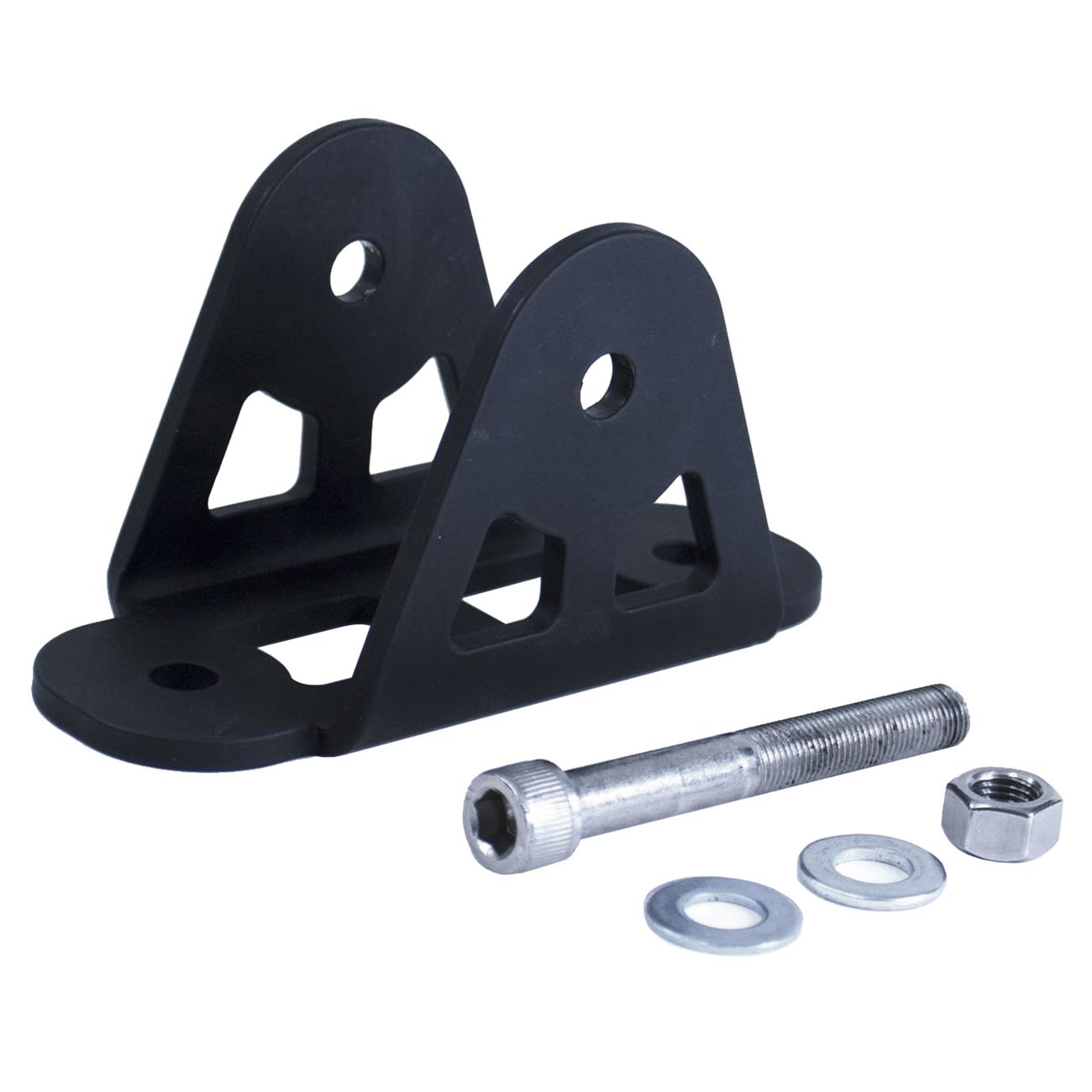

Transmission Crossmember Included: Yes

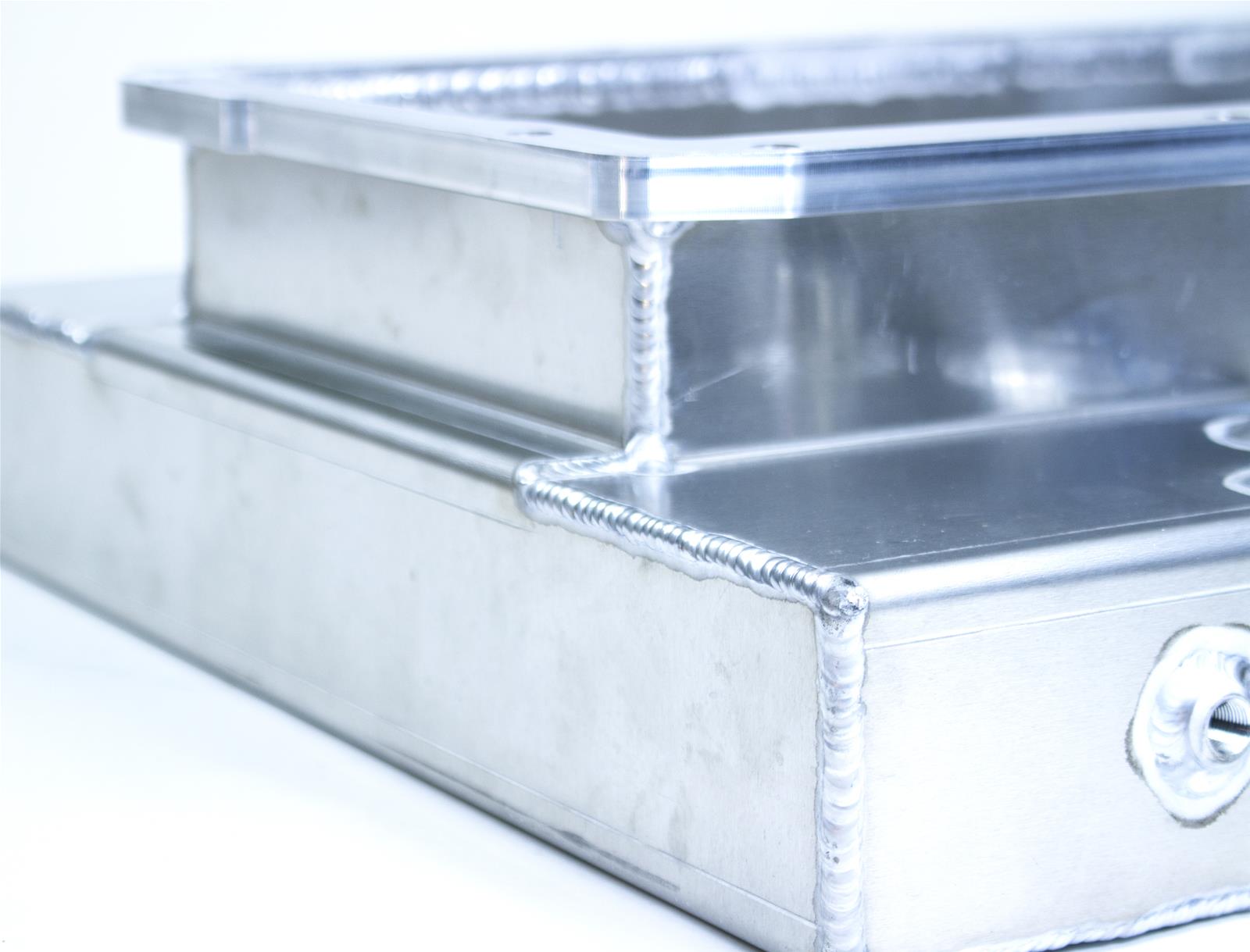

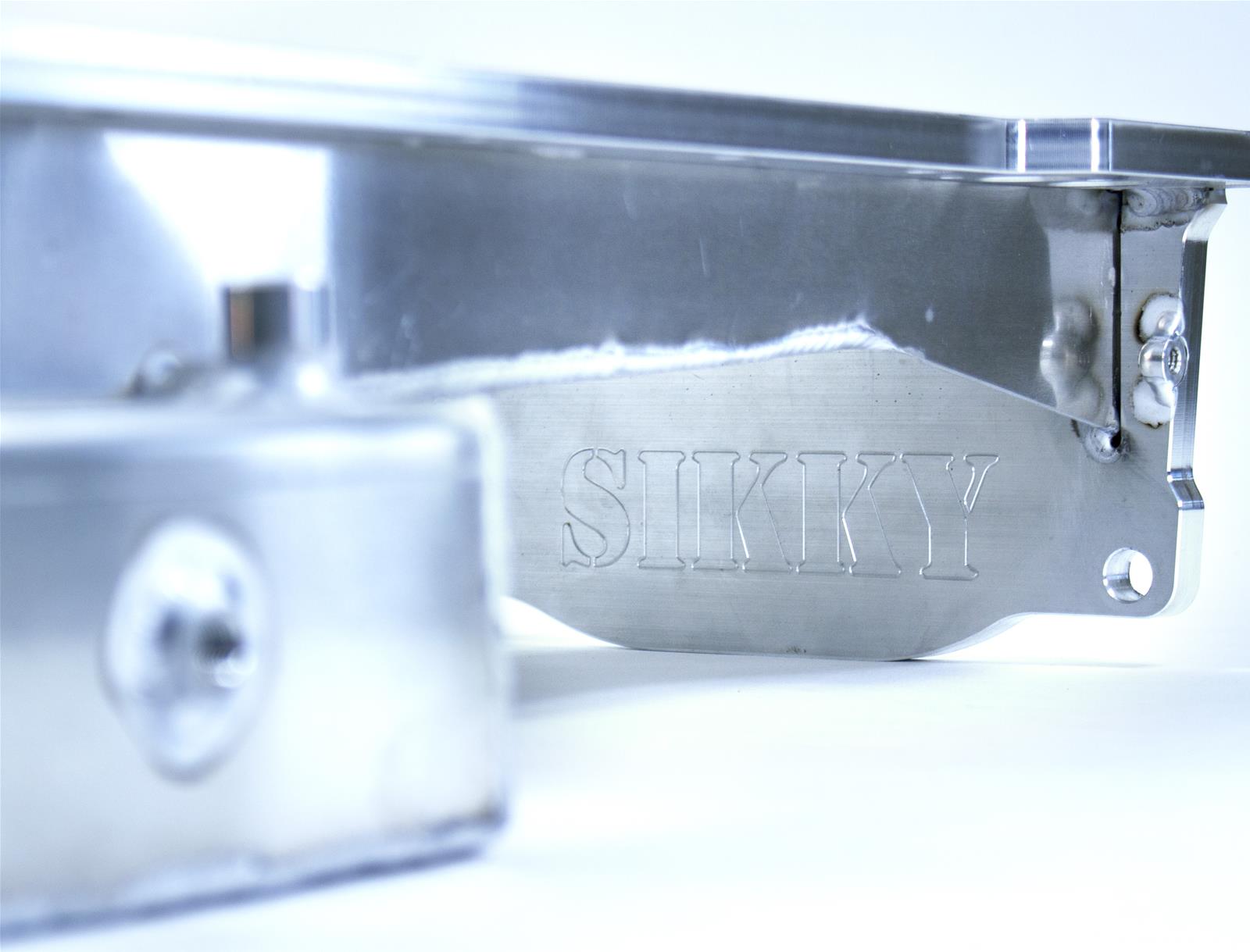

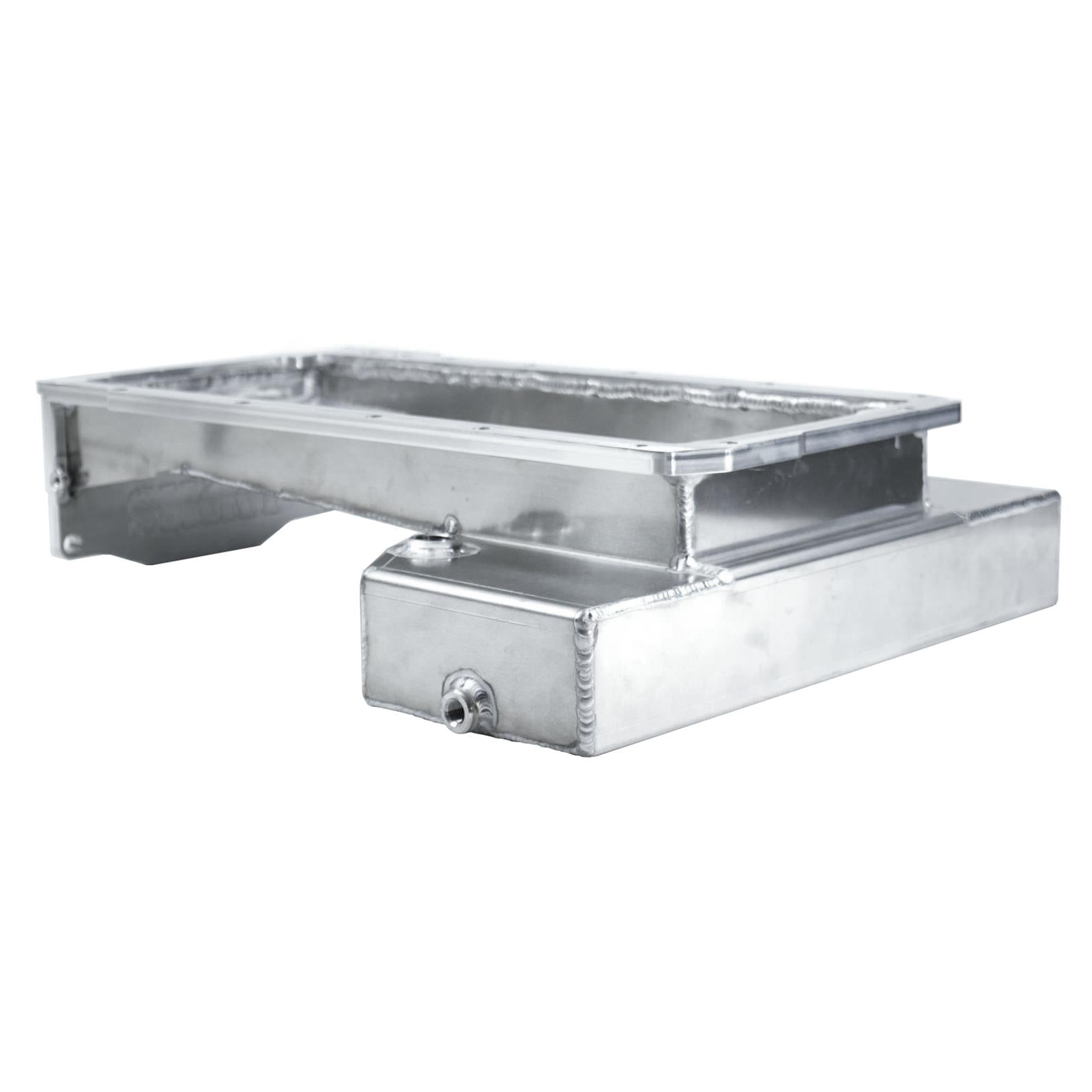

Oil Pan Included: Yes

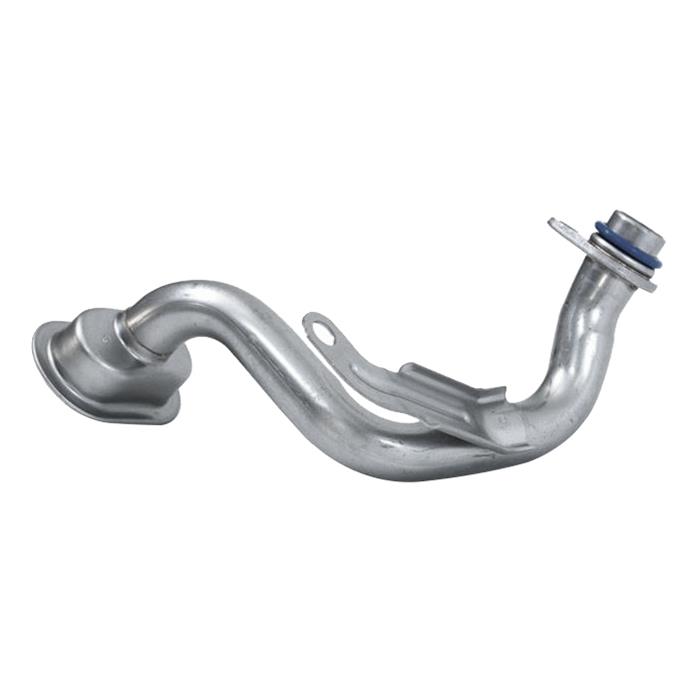

Pickup Included: Yes

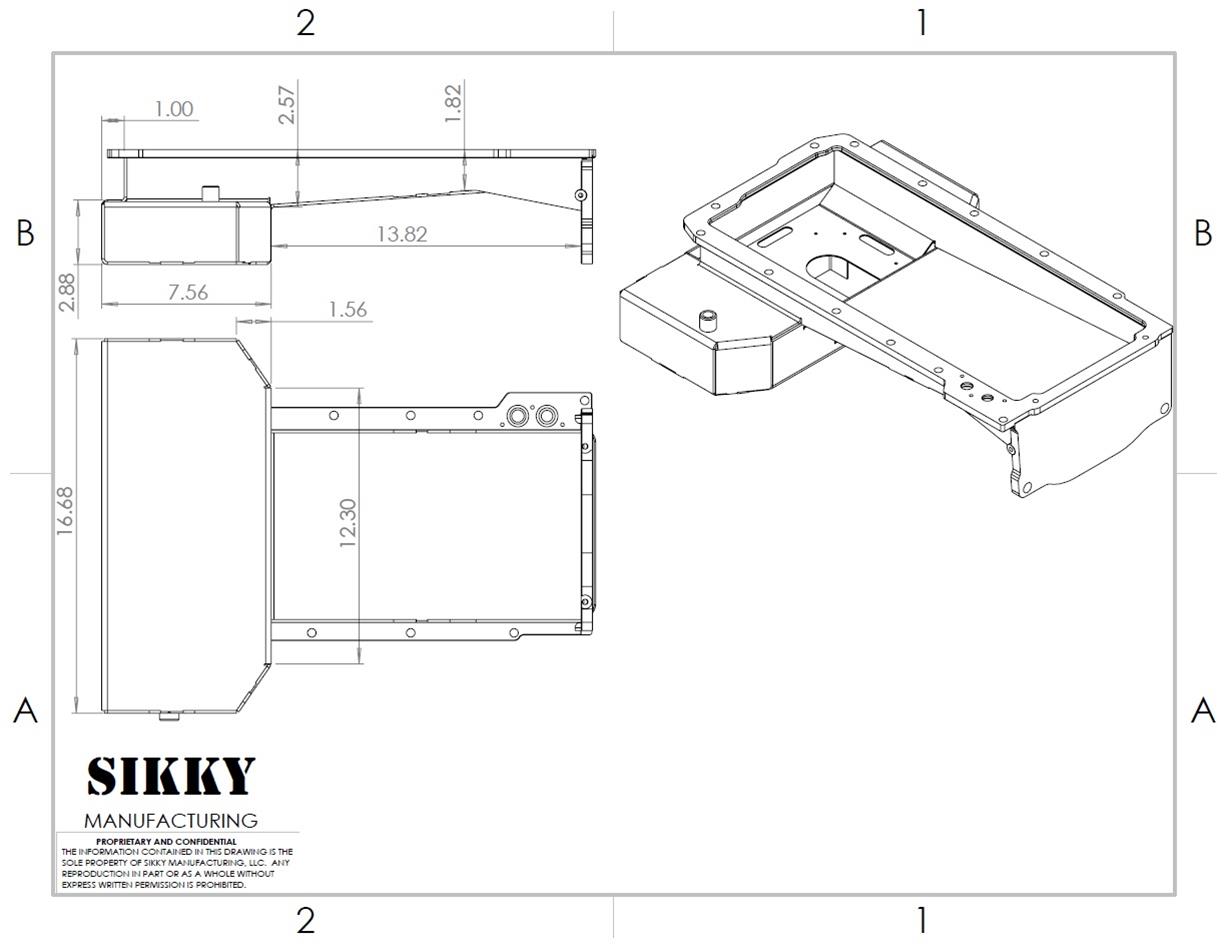

Oil Pan Material: Aluminum
Oil Pan Color: Natural
Oil Pan Capacity: 6.80 quarts
Rear Main Seal Style: 1-piece
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 4.125 in.

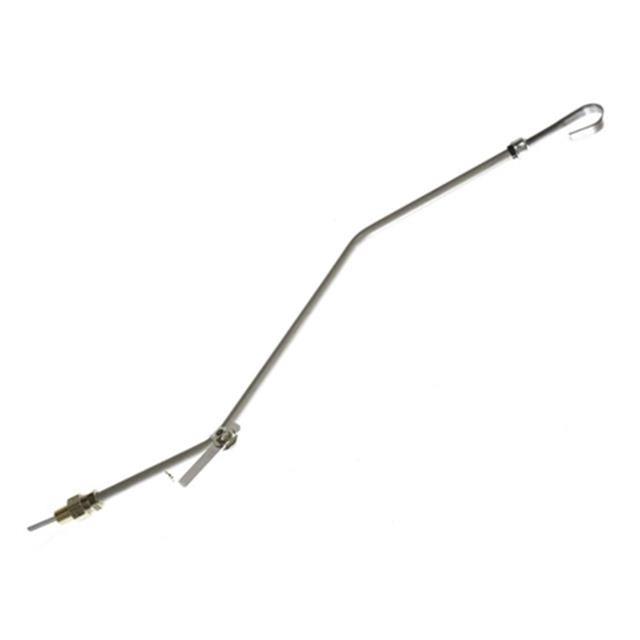

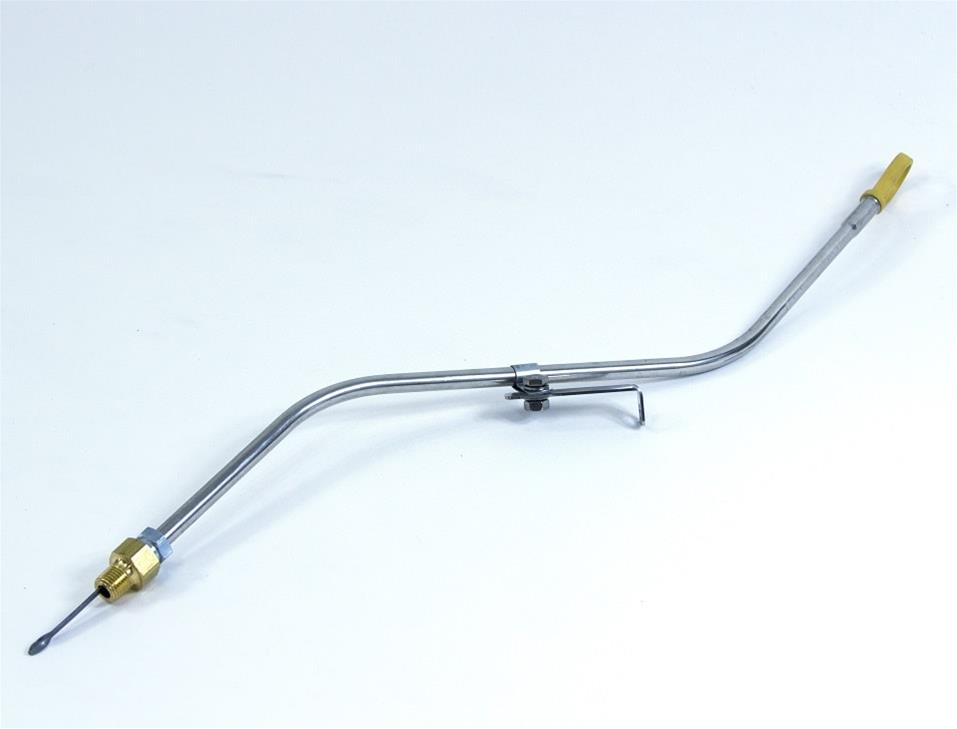

Dipstick Location: Driver side
Gaskets Included: Yes
Hardware Included: No
Quantity: Sold as a kit.

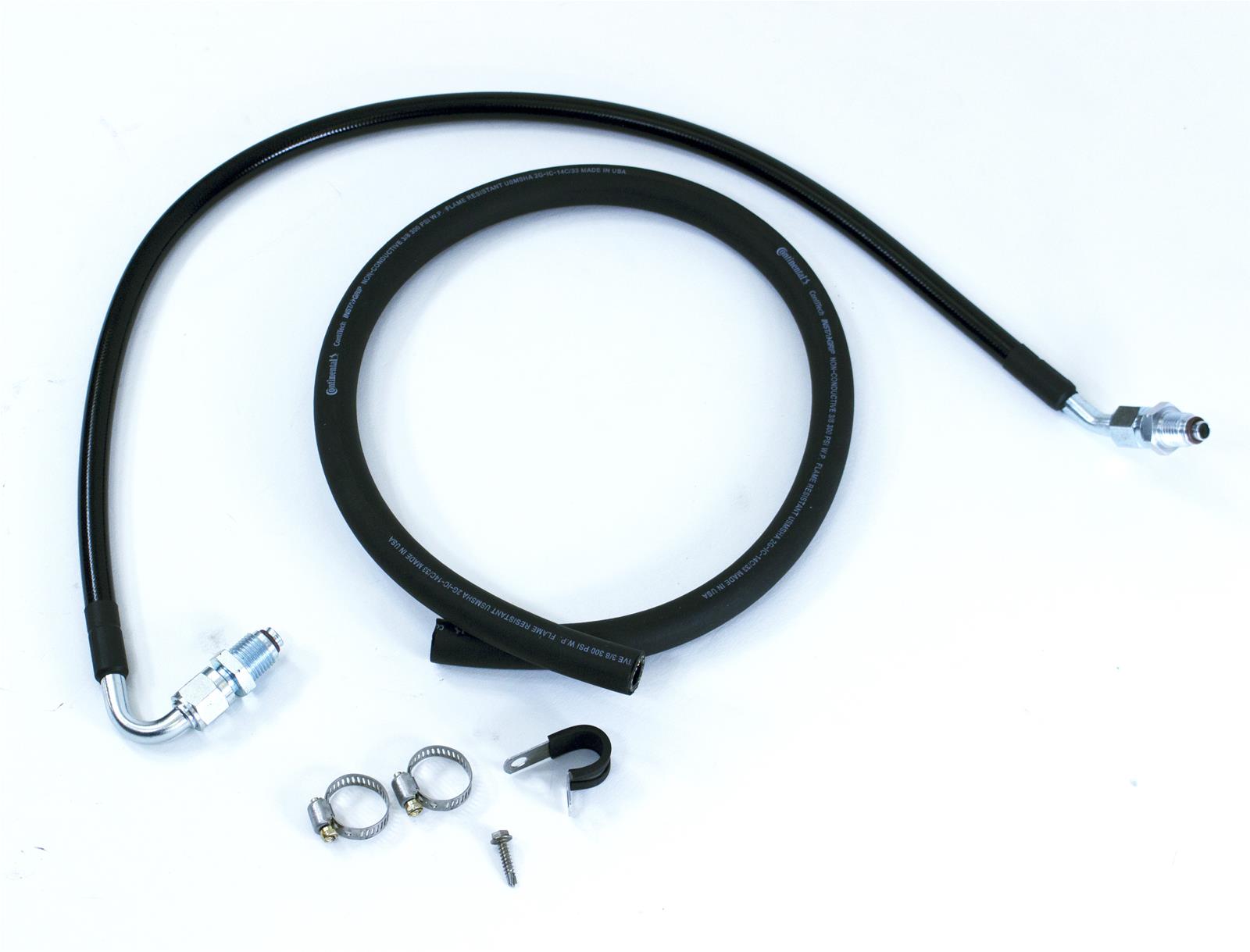

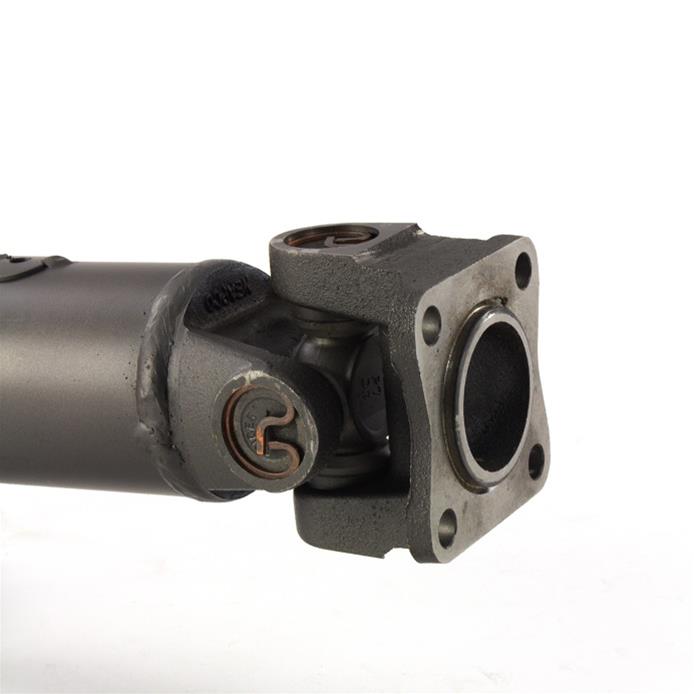

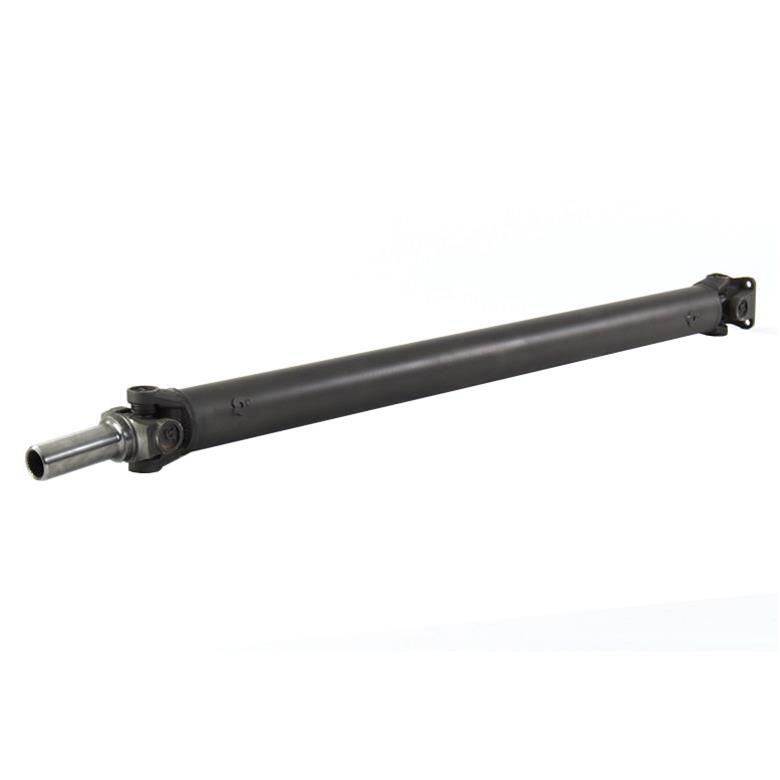

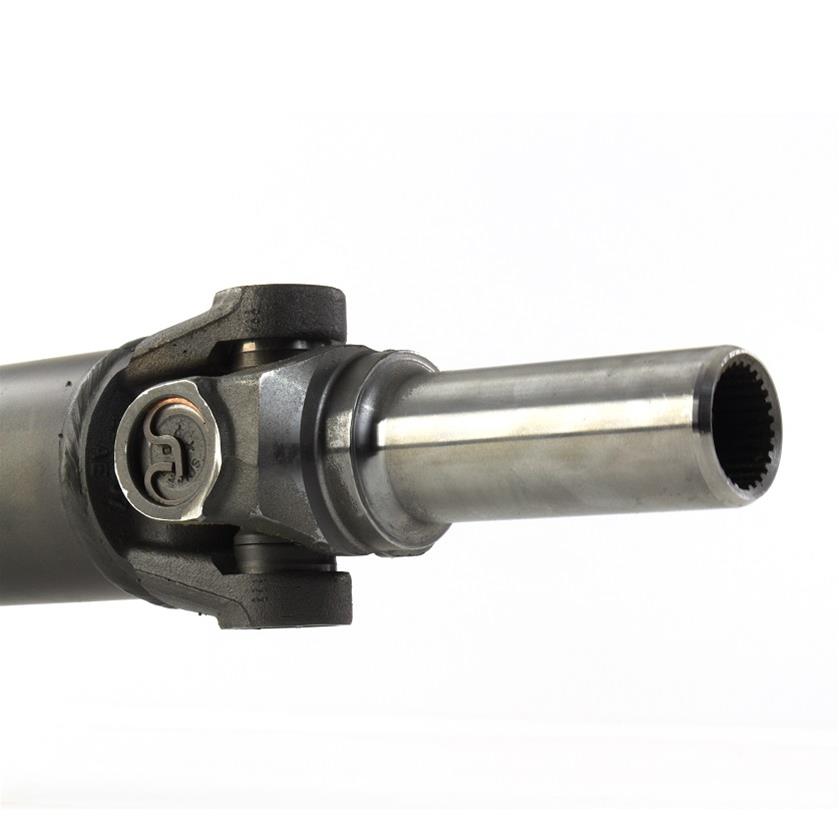

Notes: Includes steel non-ABS driveshaft designed for 4 bolt differential flanges. Power steering lines for LS3 style pump. Kit can be used on any LS based engine using this engine mount and oil pan bolt pattern.
Description:

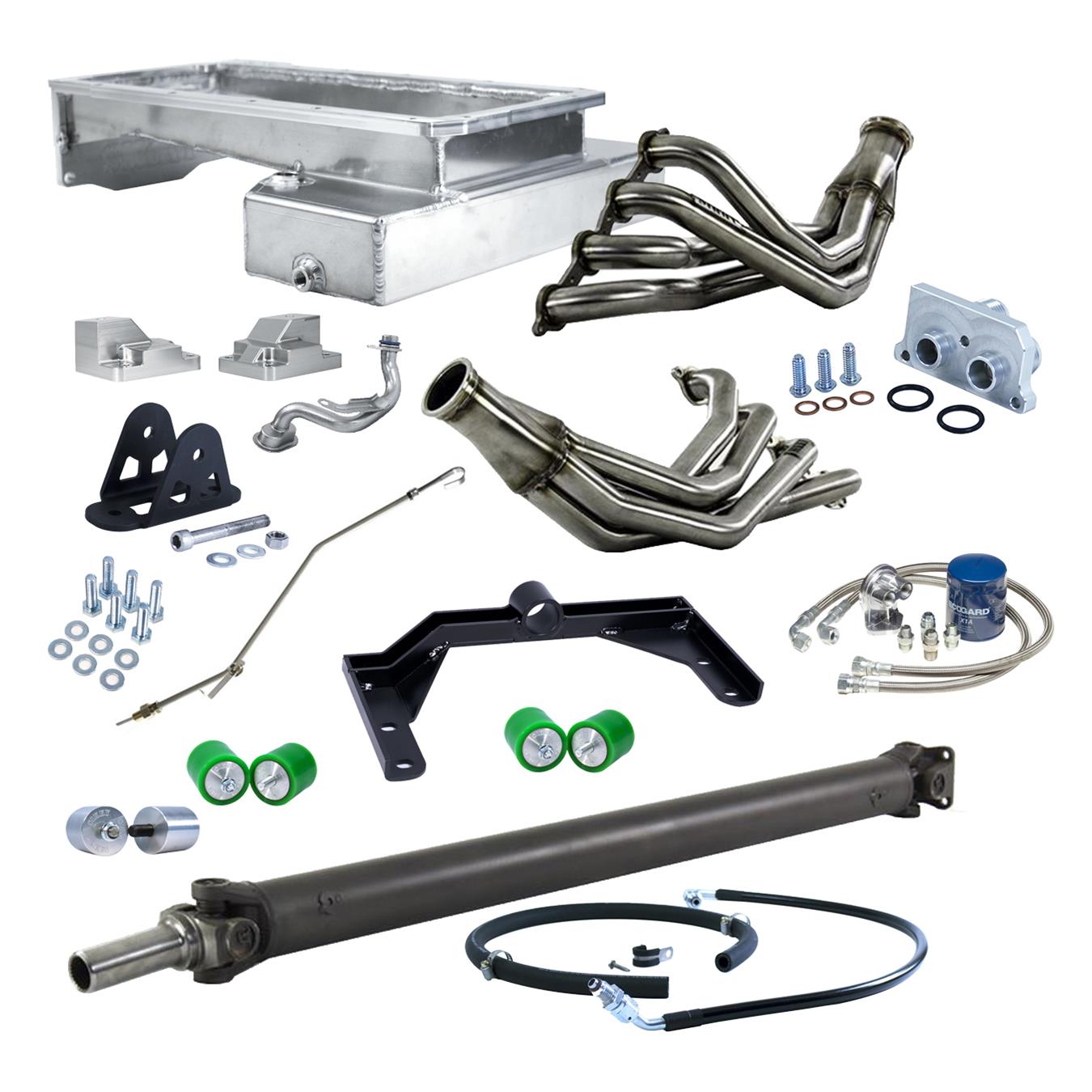

Summit Racing™ LS engine swap kits will help complete the exchange. We offer a large range of kits with the components that will make your build a success. Most kits, but not all, may include 304 stainless steel headers, mount mounts, crossmember, aluminum oil pan and pickup, gaskets, and hardware. Choose the kit packaged for your vehicle.
