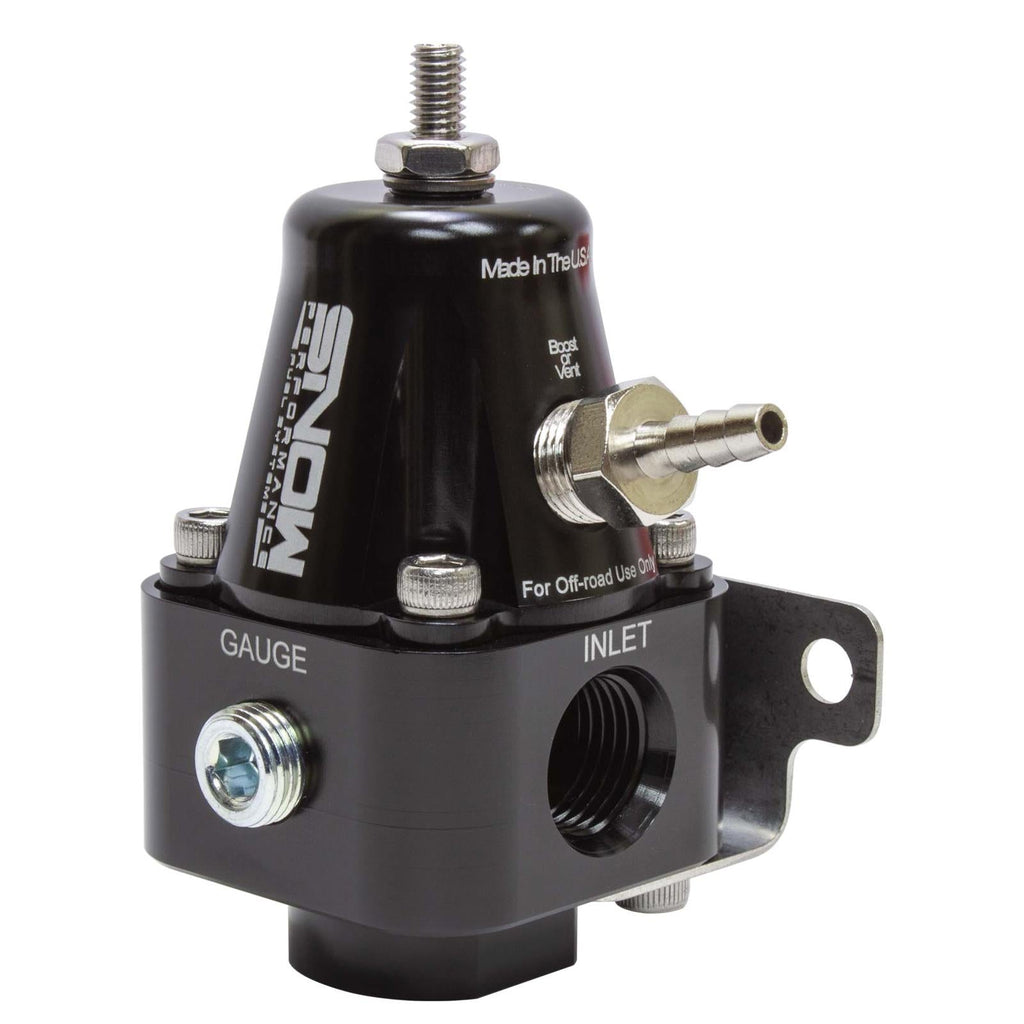

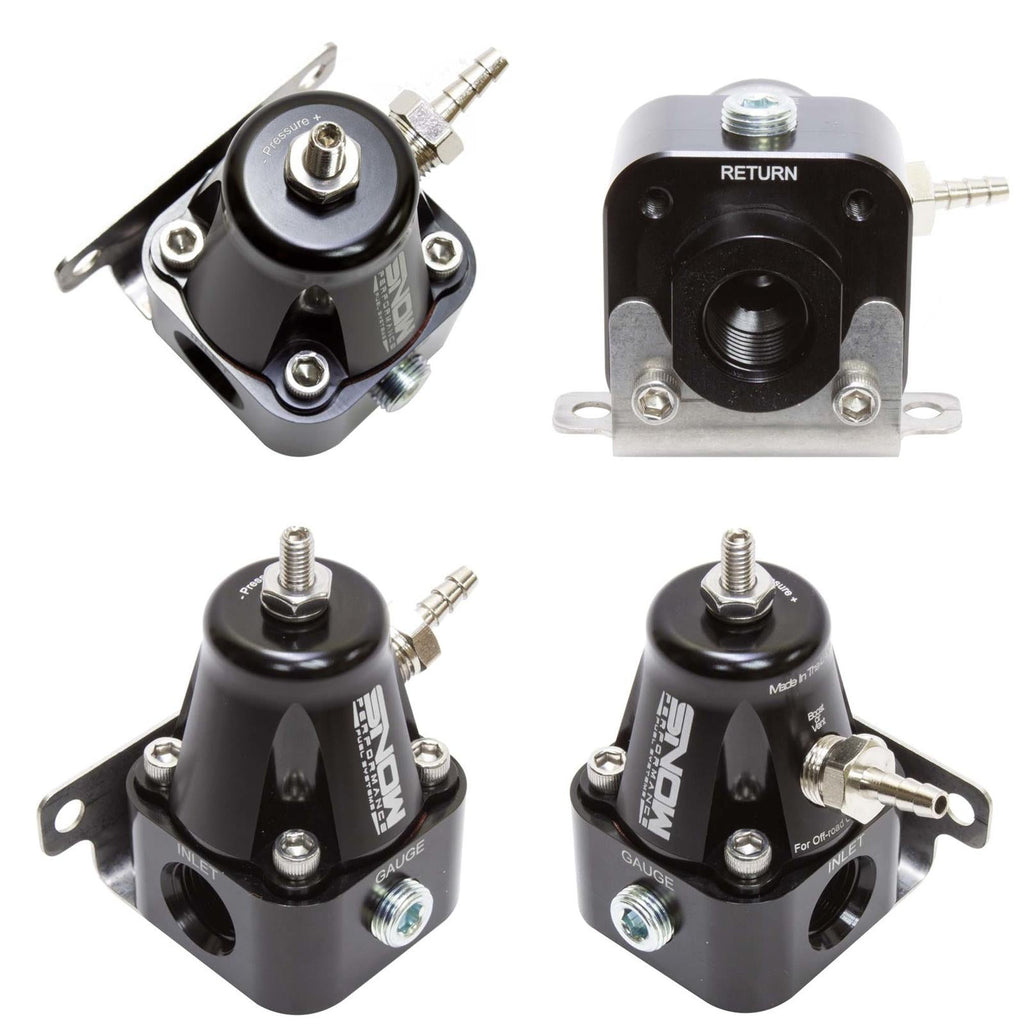

Snow Performance Billet Compact Fuel Pressure Regulators SNF-11000

Snow Performance billet compact fuel pressure regulators are high performing, high-quality components. They set themselves apart from the competition with a fluorosilicone coated Nomex diaphragm, and all stainless steel internal components, including the regulator spring. The bodies are CNC-machined billet aluminum for strength and durability, and then anodized black for the ultimate in corrosion resistance. Together, the result is fuel pressure regulators that respond lightning fast to your vehicle's ever-changing fuel flow demands, are compatible with any type of fuel, including E-85 and methanol, and look great!

Features:

* Adjustable from 3 to 80 psi
* Three 6AN ORB inlet/outlet ports
* 6AN ORB return port
* 1/8 in. hose barb for 1:1 vacuum/boost reference
* 1/8 in. NPT gauge port
Brand: Snow Performance
Manufacturer's Part Number: SNF-11000
Part Type: Fuel Pressure Regulators
Product Line: Snow Performance Billet Compact Fuel Pressure Regulators
HP Direct Part Number: SNO-SNF-11000
UPC: 653374981873
Regulator Pressure (psi): 3-80
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -6 AN O-ring
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -6 AN O-ring
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -6 AN O-ring
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: No
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
