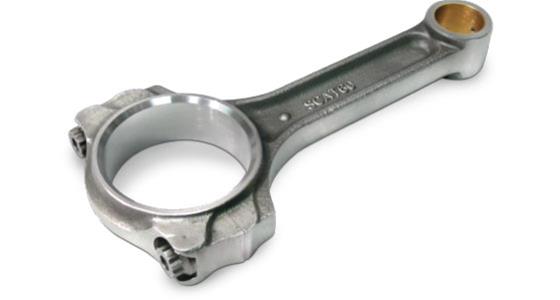

Scat Pro Comp I-Beam Connecting Rods 2-ICR63857/16-1

These Scat I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Scat Pro Comp I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers, and special hollow dowels with huge 7/16 in. ARP cap screw bolts to greatly increase strength and horsepower capabilities.Brand: SCAT Engine Components
Manufacturer's Part Number: 2-ICR63857/16-1
Part Type: Connecting Rods
Product Line: Scat Pro Comp I-Beam Connecting Rods
HP Direct Part Number: SCA-26385716-1
UPC: 846091052555
Connecting Rod Length Center to Center (in.): 6.385 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.990 in.
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.3250
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.992
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 200,000 psi
Connecting Rod Bolt Head Style: 12-point
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Polished and shot-peened
Notes: Custom pistons are required when using connecting rods with any length other than OE length.
