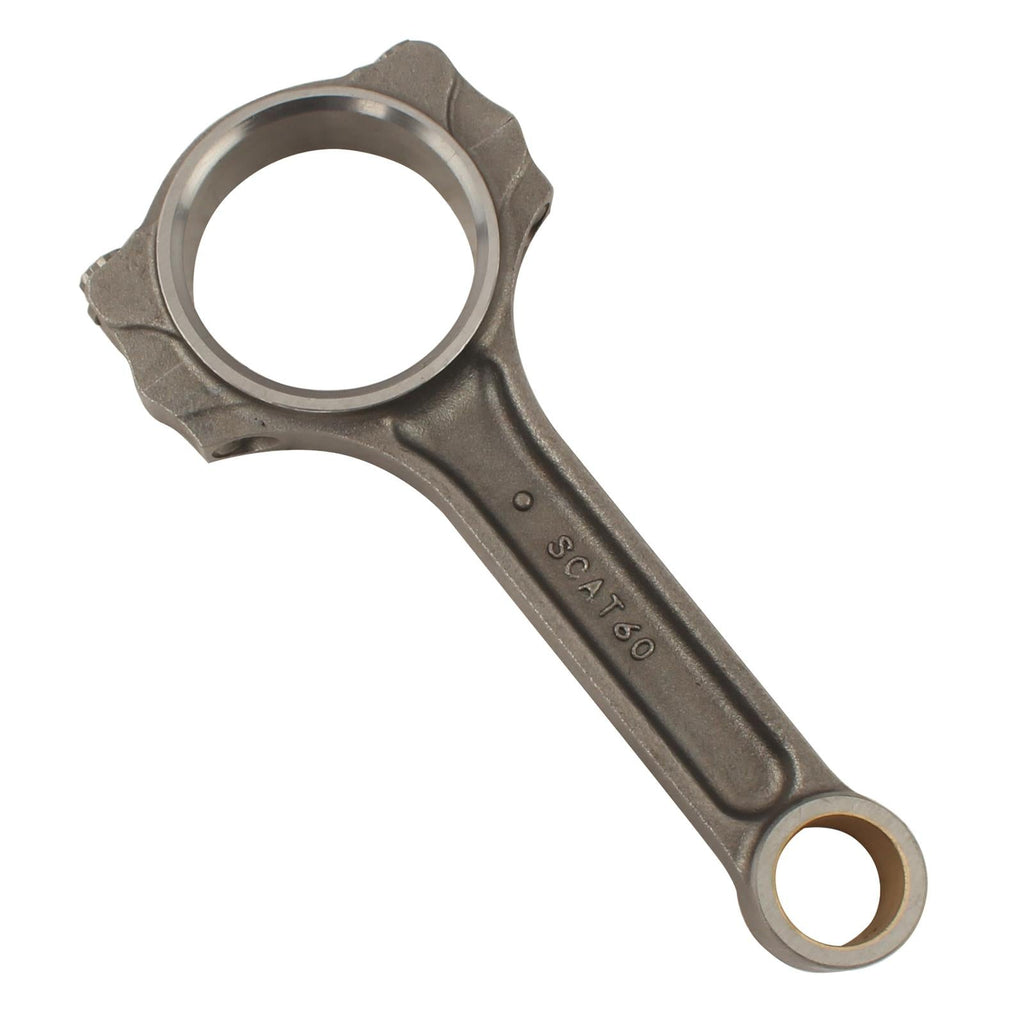

Scat Pro Comp I-Beam Connecting Rods 2-ICR60007/16-1

These Scat I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Scat Pro Comp I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers, and special hollow dowels with huge 7/16 in. ARP cap screw bolts to greatly increase strength and horsepower capabilities.Brand: SCAT Engine Components
Manufacturer's Part Number: 2-ICR60007/16-1
Part Type: Connecting Rods
Product Line: Scat Pro Comp I-Beam Connecting Rods
HP Direct Part Number: SCA-26000716-1
UPC: 00846091052418
Connecting Rod Length Center to Center (in.): 6.000 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 605
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Polished and shot-peened
Notes: Custom pistons are required when using connecting rods with any length other than OE length.
