Description

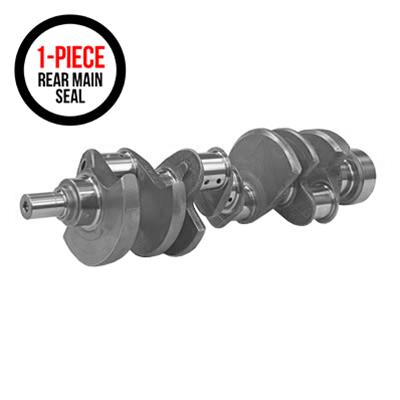

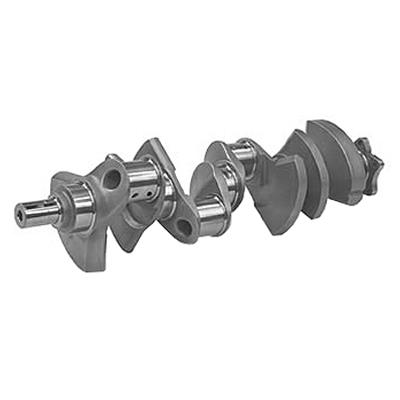

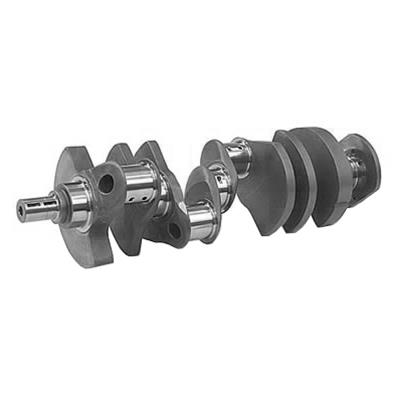

Scat forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower. These crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished for superior tolerance control. Scat crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws. They also have a large radius on all journals for improved strength and wear resistance. Scat forged standard weight crankshafts are available in dozens of sizes and configurations for fitment on vehicles spanning seven decades.Brand: SCAT Engine Components
Manufacturer's Part Number: 4-LS1-4000-6125-24
Part Type: Crankshafts
Product Line: Scat Forged Standard Weight Crankshafts
HP Direct Part Number: SCA-4LS140062
UPC: 846091047841
Engine Stroke (in.): 4.000 in.
Crankshaft Material: Forged 4340 steel
Engine Balance: Internal
Rear Main Seal Style: 1-piece
Reluctor Wheel Tooth Quantity: 24
Lightened: Yes
Requires Narrow Bearings: Yes
Rod Bearings Included: No
Main Bearings Included: No
Rod Journal Diameter (in.): 2.100
Main Journal Diameter (in.): 2.559 in.
Crankshaft Snout Style: Standard
Quantity: Sold individually.
Notes: Has 24 tooth reluctor wheel.
Manufacturer's Part Number: 4-LS1-4000-6125-24
Part Type: Crankshafts
Product Line: Scat Forged Standard Weight Crankshafts
HP Direct Part Number: SCA-4LS140062
UPC: 846091047841
Engine Stroke (in.): 4.000 in.
Crankshaft Material: Forged 4340 steel
Engine Balance: Internal
Rear Main Seal Style: 1-piece
Reluctor Wheel Tooth Quantity: 24
Lightened: Yes
Requires Narrow Bearings: Yes
Rod Bearings Included: No
Main Bearings Included: No
Rod Journal Diameter (in.): 2.100
Main Journal Diameter (in.): 2.559 in.
Crankshaft Snout Style: Standard
Quantity: Sold individually.
Notes: Has 24 tooth reluctor wheel.
