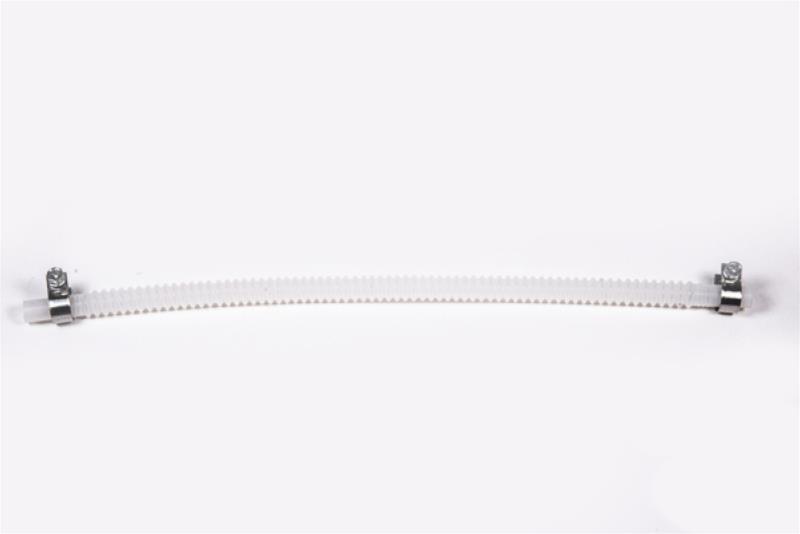

Radium Engineering Submersible Fuel Tubing 20-0175

Radium Engineering submersible fuel tubing is commonly used for plumbing in-tank submerged fuel pumps. The flexible convoluted tubing is manufactured from polyamide nylon and is resistant to all fuel types, including alcohol blends, such as E85. Radium tubing is suitable for EFI fuel pressure and available in two inner diameters and four lengths. Stainless steel clamps are included with each, and all tubes are translucent white except the 8.2 in. which are opaque black.

Additional features, benefits, and specs:

* Available I.D. of 5/16 in. (8mm) and 3/8 in. (10mm)
* Available lengths: 12.8 in., 6.5 in., 17.7 in., and 8.2 in.
* When installing, run hot water over the ends first to loosen the material, allowing the tubing to fit snugly over the barb
* Torque the re-useable stainless steel SAE J1508 clamps to 13.3 lbs./in.
* Clamps provide a 360 degree seal with rolled edges to protect the tubing
* Working pressure: 300 psi
* Burst pressure: 450 psi
Brand: Radium Engineering
Manufacturer's Part Number: 20-0175
Part Type: Hoses, Miscellaneous
Product Line: Radium Engineering Submersible Fuel Tubing
HP Direct Part Number: RDM-20-0175
Hose Size: 5/16 in.
Hose Material: Plastic
EFI Compatible: Yes
Hose Length (in.): 12.800 in.
Hose Length (ft.): 1.07
Hose Color: Clear
Hose Inside Diameter (in.): 0.313 in.
Quantity: Sold individually.
