Description
Because vehicles have different priorities when it comes to refueling, Radium offers different solutions to suit most needs. They offer their body-mount remote fuel fillers in a standard fill (cap) or dry break (no cap to unscrew) for those needing to refill quickly in a competitive environment.

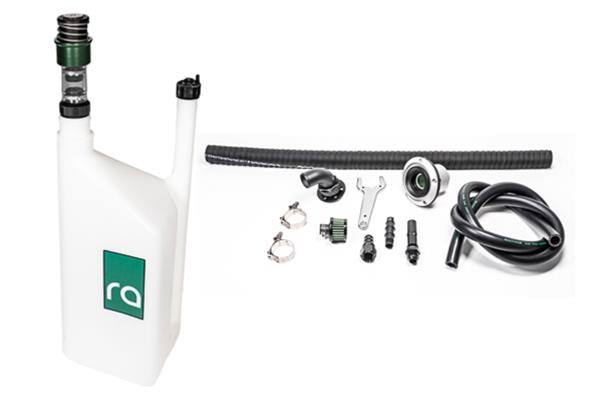

Radium Engineering remote mount fuel fillers secure to your vehicle's body, are vented, offer roll-over protection incase vehicle becomes inverted, and have a machined hose barb connection for 1.5 in. filler hose. Both fillers offer the same outer diameter of 4.75 in., use 4.25 in. PCD for the included stainless steel M5 bolts, and require a 3.03 in. (77mm) hole to be fabricated. They also include an ozone/flame-resistant gasket and an anodized aluminum nut ring.
The components, materials, and seals of the dry break quick-fill filler are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.) and the receptacle can be unscrewed and replaced with cap (sold separately) for standard filling. The standard fill filler can be upgraded to a dry break with a Radium kit (sold separately). Choose your preferred remote mount fuel filler option.
Brand: Radium Engineering
Manufacturer's Part Number: 20-0815-22
Part Type: Fuel Cell Filler Kits
Product Line: Radium Engineering Remote Mount Fuel Fillers
HP Direct Part Number: RDM-20-0815-22
Fender Fill Cap Flange Included: Yes
Fender Fill Cap Flange Material: Aluminum
Fender Fill Cap Flange Color: Silver
Vented: Yes
Fuel Hose Included: Yes
Fuel Hose Diameter (in.): 1.50 in.
Fuel Hose Length (in.): 36.00 in.
Vent Hose Included: Yes
Vent Hose Diameter (in.): 0.50 in.
Vent Hose Length (in.): 72.00 in.
Vent Fitting Included: Yes
Quantity: Sold as a kit.
Radium Engineering remote mount fuel fillers secure to your vehicle's body, are vented, offer roll-over protection incase vehicle becomes inverted, and have a machined hose barb connection for 1.5 in. filler hose. Both fillers offer the same outer diameter of 4.75 in., use 4.25 in. PCD for the included stainless steel M5 bolts, and require a 3.03 in. (77mm) hole to be fabricated. They also include an ozone/flame-resistant gasket and an anodized aluminum nut ring.
The components, materials, and seals of the dry break quick-fill filler are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.) and the receptacle can be unscrewed and replaced with cap (sold separately) for standard filling. The standard fill filler can be upgraded to a dry break with a Radium kit (sold separately). Choose your preferred remote mount fuel filler option.
Brand: Radium Engineering
Manufacturer's Part Number: 20-0815-22
Part Type: Fuel Cell Filler Kits
Product Line: Radium Engineering Remote Mount Fuel Fillers
HP Direct Part Number: RDM-20-0815-22
Fender Fill Cap Flange Included: Yes
Fender Fill Cap Flange Material: Aluminum
Fender Fill Cap Flange Color: Silver
Vented: Yes
Fuel Hose Included: Yes
Fuel Hose Diameter (in.): 1.50 in.
Fuel Hose Length (in.): 36.00 in.
Vent Hose Included: Yes
Vent Hose Diameter (in.): 0.50 in.
Vent Hose Length (in.): 72.00 in.
Vent Fitting Included: Yes
Quantity: Sold as a kit.
