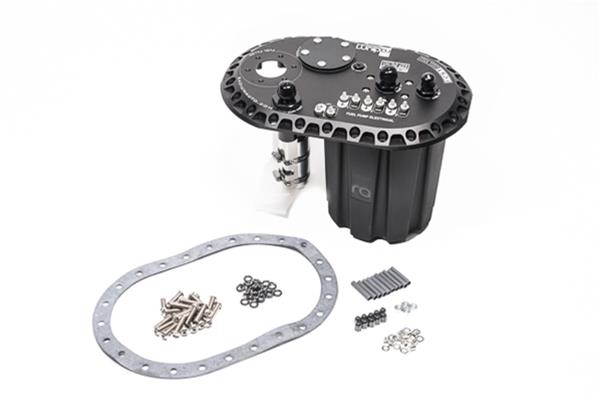

Radium Engineering Fuel Surge Tanks 20-0695-00

Radium Engineering offers fuel surge tanks in a variety of styles—including with two or three fuel pumps, and for gasoline and/or flex fuel. A fuel surge tank (FST) is designed to prevent fuel starvation to the engine on vehicles with inadequate fuel tank baffling. Fuel is supplied to the surge tank by a lift pump, which in most cases is the OEM in-tank fuel pump. The volume of fuel inside the surge tank acts as a buffer to always keep the FST pump(s) supplied with fuel, even if the lift pump starves momentarily. This volume is maintained by the lift pump as well as the fuel returning from the fuel pressure regulator. Excess fuel in the surge tank is returned back to the vehicle's main fuel tank. The surge tank also provides a quick and easy way to upgrade any standard fuel system without opening the stock fuel tank. This is an excellent fueling solution for vehicles installing large demand power upgrades such as forced induction.Brand: Radium Engineering
Manufacturer's Part Number: 20-0695-00
Part Type: Surge Tanks
Product Line: Radium Engineering Fuel Surge Tanks
HP Direct Part Number: RDM-20-0695-00
Fuel Pump Included: No
Capacity: 2 liters
Inlet Quantity: 1
Outlet Attachment: Female O-ring
Fuel Pump Outlet Size: -10 AN O-ring
Outlet Quantity: 1
Sending Unit Included: No
Gasket Included: Yes
Fuel Pressure Regulator Included: No
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Wiring Harness Included: No
Length (in.): 10.000 in.
Width (in.): 6.000 in.
Quantity: Sold individually.
