Radium Engineering Fuel Pressure Regulators 20-0014

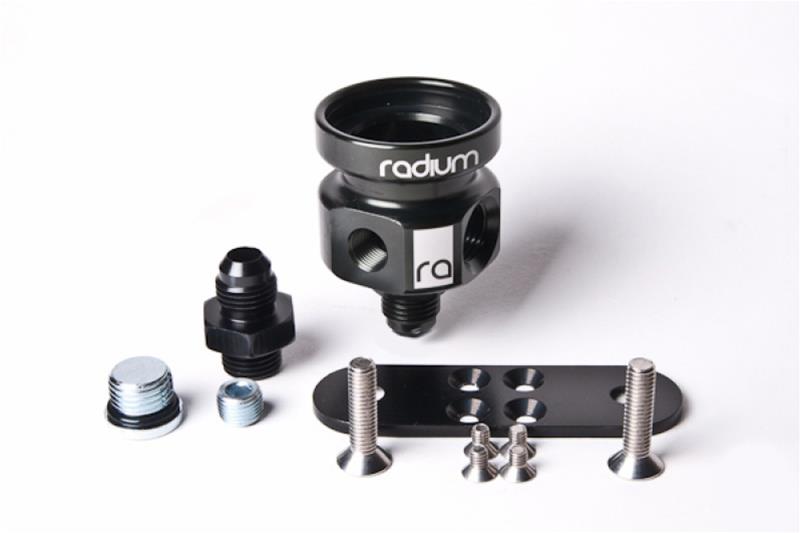

Radium Engineering fuel pressure regulators are designed with billet aluminum housings that are anodized for a superior finish and laser etched. Providing a convenient package for plumbing and mounting, the compact housings feature two main high-pressure ports threaded for 6AN ORB, a 6AN male return port, and a 1/8 NPT female port for a gauge, pressure transducer, and the like. Radium regulators are available without a top or with a genuine Bosch 3.0 Bar (43.5 psi) or 4.0 Bar (58.2 psi) static top vacuum referenced with a 1:1 ratio and are NOT adjustable. They are secured with a stainless steel snap ring and can easily be removed using snap-ring pliers. Fittings, plug, bracket, and stainless steel hardware are included. Choose the kit to best suit your needs.

Brand: Radium Engineering
Manufacturer's Part Number: 20-0014
Part Type: Fuel Pressure Regulators
Product Line: Radium Engineering Fuel Pressure Regulators
HP Direct Part Number: RDM-20-0014
Regulator Pressure (psi): 40-70
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: No
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -6 AN O-ring
Inlet Attachment: Female O-ring
Outlet Quantity: 1
Regulator Outlet Size: -6 AN O-ring
Outlet Attachment: Female O-ring
Return Fitting Size: -6 AN
Return Attachment: Female O-ring
Fittings Included: Yes
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: No
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Does not include a Bosch regulator top.
