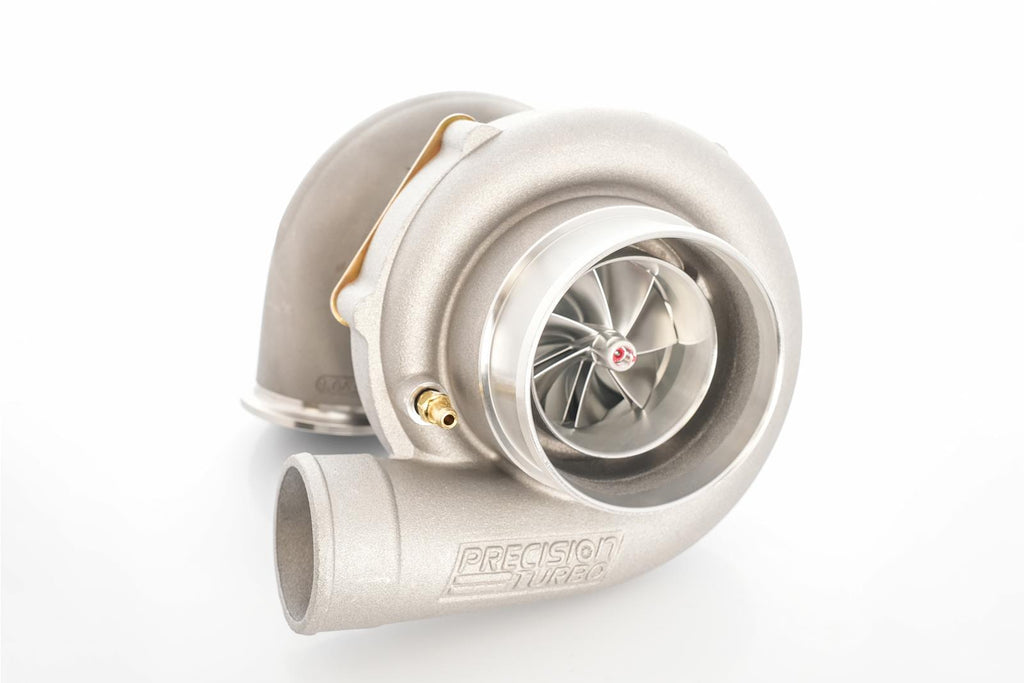

Precision Turbo and Engine Next Gen 6466 Turbochargers 27307210799

Precision Turbo and Engine Next Gen 6466 turbochargers are rated at 1,000 hp and are available in the all-new SCP (S Cast Ported) compressor cover, offering a 4 in. inlet and 2.5 in. outlet—and for the first time in the HP compressor cover, which features a 4 in. inlet and 3 in. outlet.

This evolution in Precision's lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All these improvements result in a 10 percent increase in flow compared to Gen 2 technology. The 6466 turbochargers are available with T3 or T4 turbine housing inlet flange, stainless steel or cast iron turbine housing material, and a variety of turbine housing A/R ratios.
Brand: PRECISION TURBO & ENGINE
Manufacturer's Part Number: 27307210799
Part Type: Turbochargers
Product Line: Precision Turbo and Engine Next Gen 6466 Turbochargers
HP Direct Part Number: PTU-27307210799
Turbine Housing Inlet Flange: T3
Turbine Housing Outlet Flange: V-band
Turbocharger Style: PT6466
Wastegate Location: External
Compressor Wheel Inducer Size: 64.00mm
Turbine Wheel Exducer Size: 86.00mm
Compressor Wheel Trim: 64.00
Turbine Wheel Trim: 66.00
Turbine Housing A/R Ratio: 1.05
Turbocharger Bearing Style: Journal bearing
Compressor Wheel Construction: Billet aluminum
Volute Type: Divided
Turbocharger Cooling: Oil
Compressor Housing Included: Yes
Compressor Housing Material: Aluminum
Compressor Housing Color: Natural
Turbine Housing Included: Yes
Turbine Housing Material: Stainless steel
Turbine Housing Finish: Natural
Compressor Outlet Style: Slip fit
Ported Compressor Housing: Yes
Wastegate Actuator Included: No
Exhaust Adapter Included: No
Intake Adapter Included: No
Oil Adapters Included: No
Remanufactured: No
Quantity: Sold individually.
