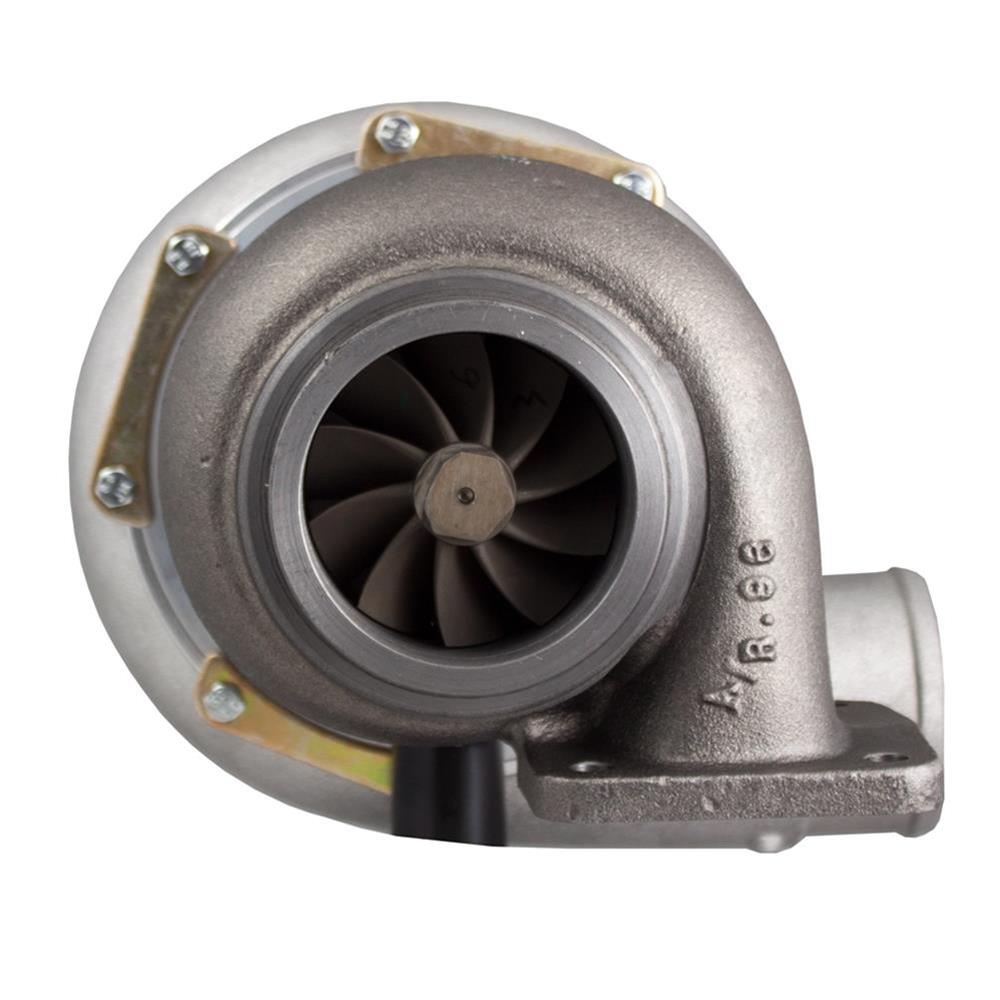

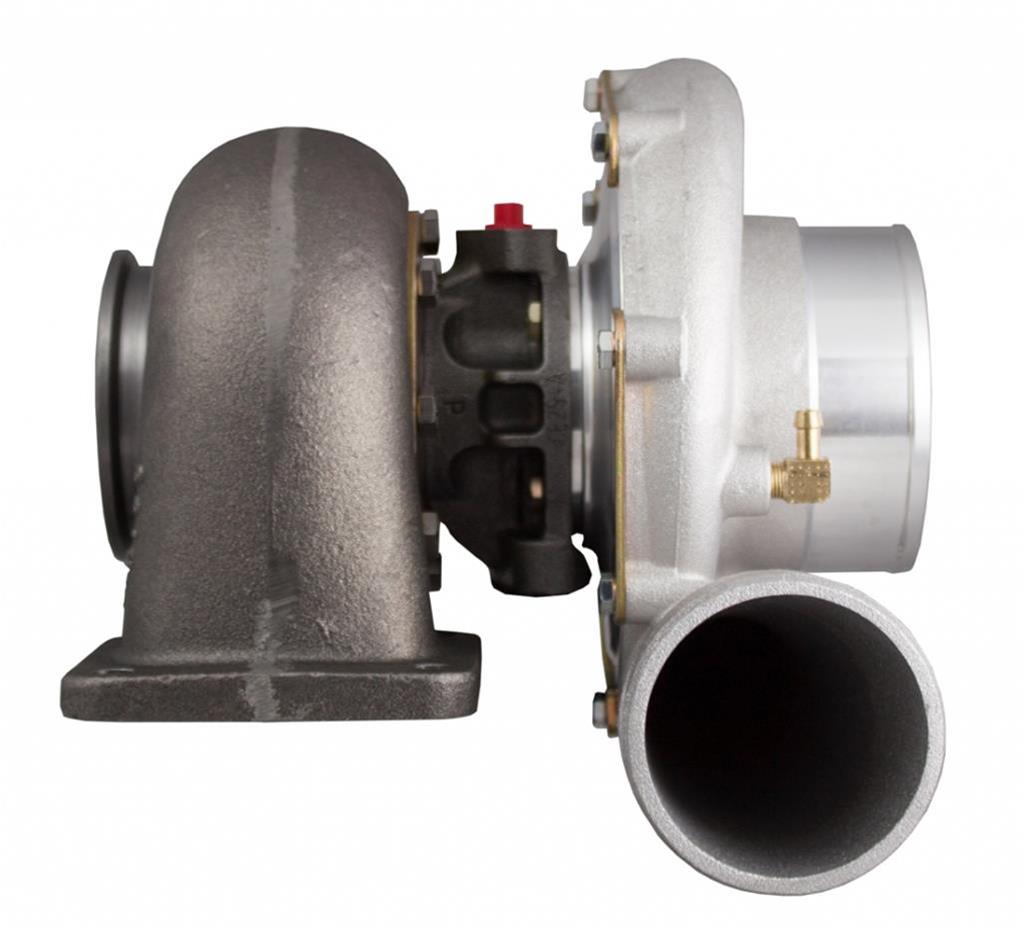

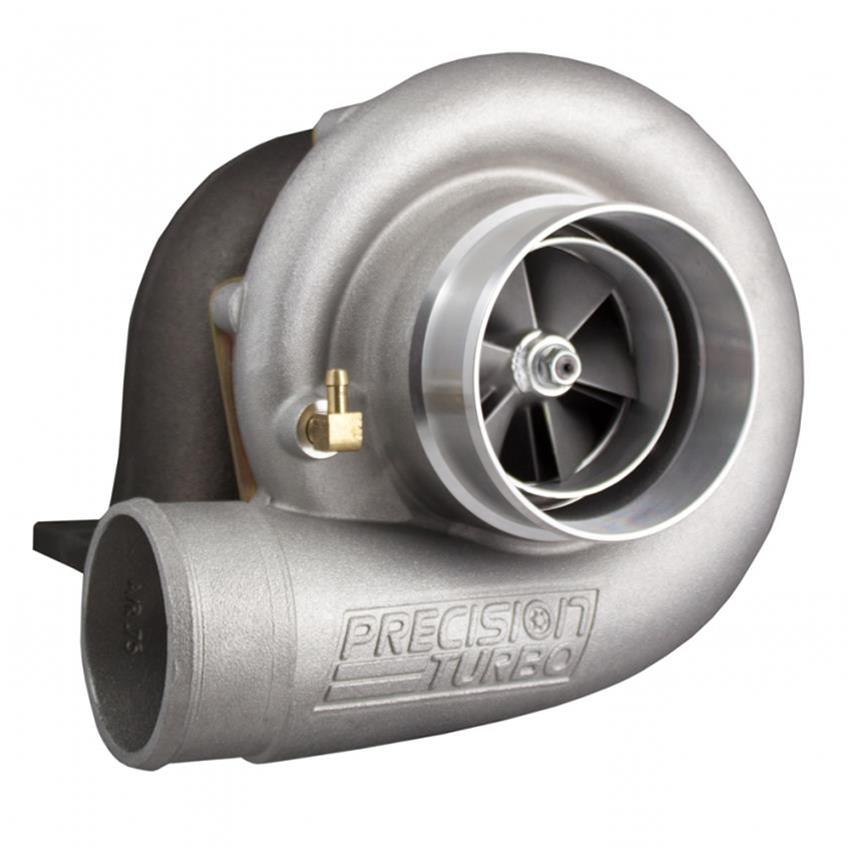

Precision Turbo and Engine LS-Series Turbochargers 02207012229

Precision Turbo and Engine LS-Series turbochargers are built with the LS enthusiast in mind. They are available in different turbine housings that are ideal for either a single or twin turbo application. Get ahead of your competition with race-winning Precision LS-Series turbochargers!

Brand: PRECISION TURBO & ENGINE
Manufacturer's Part Number: 02207012229
Part Type: Turbochargers
Product Line: Precision Turbo and Engine LS-Series Turbochargers
HP Direct Part Number: PTU-02207012229
Turbine Housing Inlet Flange: T4
Turbine Housing Outlet Flange: V-band
Turbocharger Style: PT7675
Wastegate Location: External
Compressor Wheel Inducer Size: 76.71mm
Turbine Wheel Exducer Size: 75.08mm
Compressor Wheel Trim: 84.00
Turbine Wheel Trim: 83.00
Compressor Housing A/R Ratio: 0.96
Turbocharger Bearing Style: Journal bearing
Compressor Wheel Construction: Cast aluminum
Volute Type: Open
Turbocharger Cooling: Oil
Compressor Housing Included: Yes
Compressor Housing Material: Aluminum
Compressor Housing Color: Natural
Turbine Housing Included: Yes
Turbine Housing Material: Cast iron
Turbine Housing Finish: Natural
Compressor Outlet Style: Slip fit
Ported Compressor Housing: Yes
Wastegate Actuator Included: No
Exhaust Adapter Included: No
Intake Adapter Included: No
Oil Adapters Included: No
Remanufactured: No
Quantity: Sold individually.
