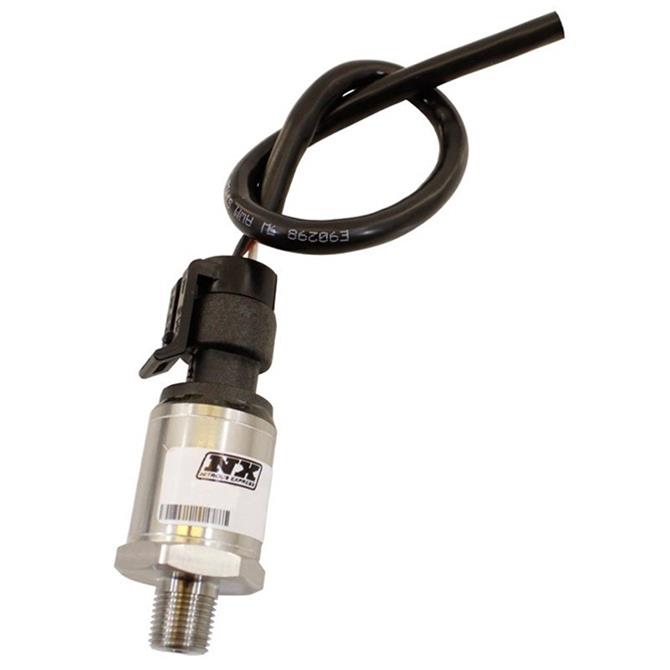

Nitrous Express Nitrous Pressure Sensors 15544

Nitrous Express nitrous pressure sensors have a working pressure window of 0-1,600 psi. They work in conjunction with the Max 5 progressive nitrous controller (sold separately) to monitor and datalog N2O pressure.

Additional product details:

* They allow the Max 5 unit to control when the bottle heater is to turn on and off. You can set the on/off PSI in the Max 5 to send an activation signal to your bottle heater at any pressure you command.
* They allow the Max 5 to keep the nitrous system from engaging if bottle pressure is too high or too low (by user adjustable high/low limits).
* Includes 3-wire pigtail harness
* 0-5 V

Brand: Nitrous Express (NX)
Manufacturer's Part Number: 15544
Part Type: Gauge Sending Units
Product Line: Nitrous Express Nitrous Pressure Sensors
HP Direct Part Number: NEX-15544
UPC: 653374979740
Gauge Type: Pressure
Sending Unit: Electrical
Sender Attachment Style: Thread-in
Pressure Range (psi): 0-100 psi
Sending Unit Thread Size: 1/8 in. NPT
Thread Adapter Fittings Included: No
Quantity: Sold individually.
Notes: Sending unit reads up to 100 PSI and includes pigtail. Can be used for oil, fuel, or any fluid pressure.
