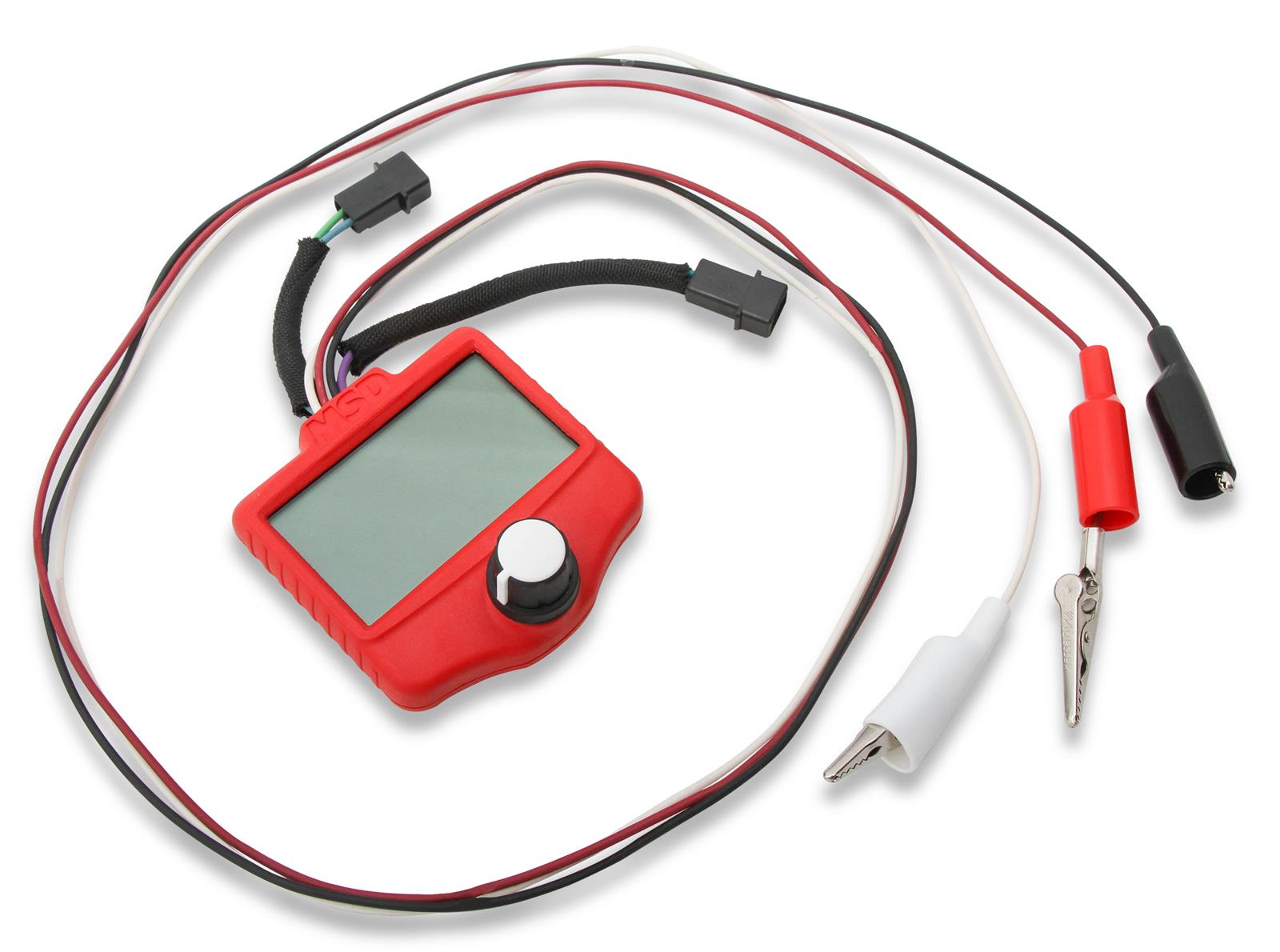

MSD Universal Ignition Testers 89981

As engine technology changes, so does the need for ignition systems and a way to test them. MSD's Universal Ignition Tester now has the ability to test both traditional single coil ignition systems and coil-per-cylinder applications. The tester also enables you to create an RPM run and let the tester run through the RPM range. This allows you to see the ignition activate any accessories you may be running, such as shifters, nitrous solenoids, and more.

Product features:

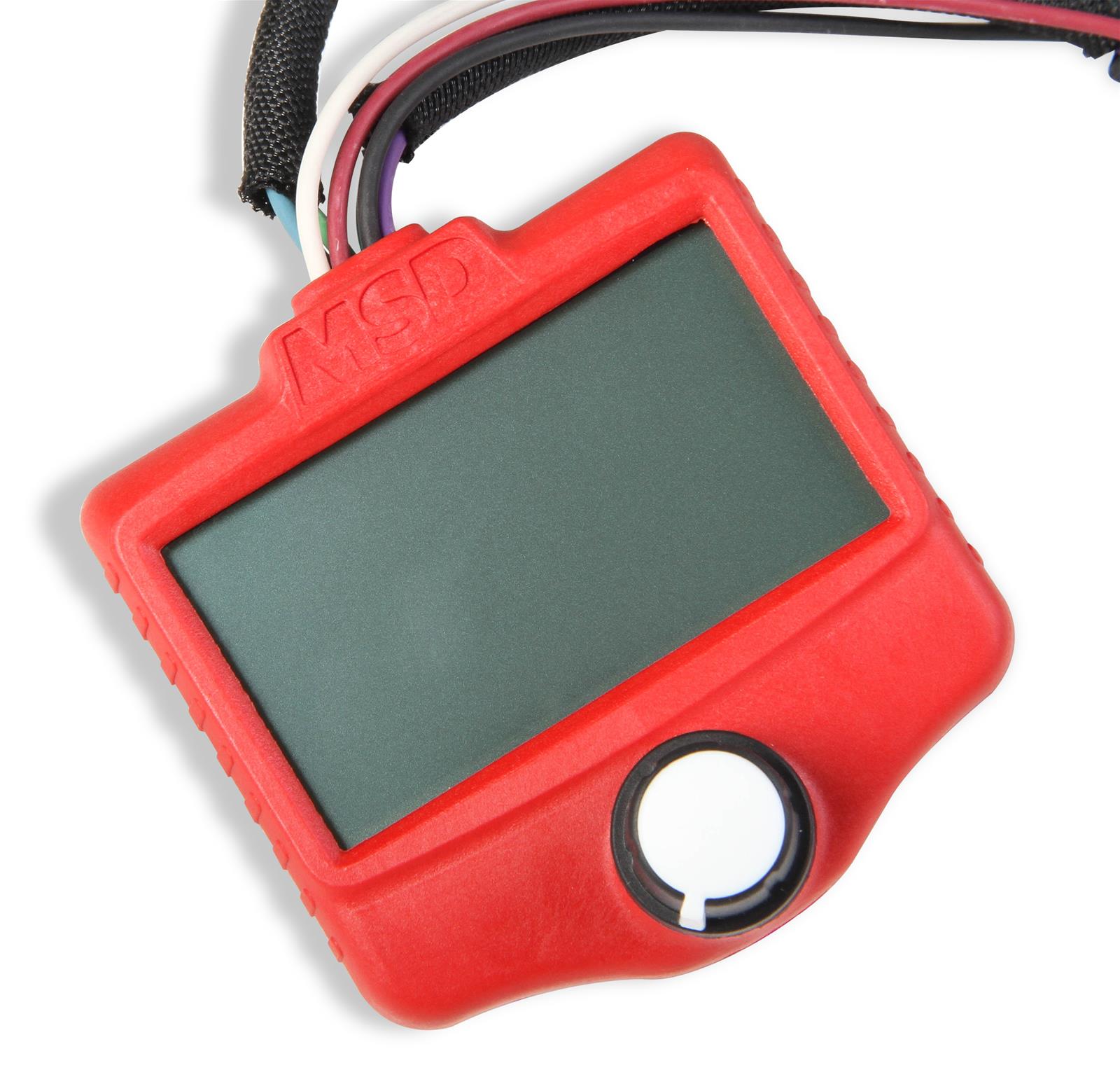

* Backlit, large, and easy-to-read display
* Settings for 10 different crank types: 1-, 4-, 6-, 8-, and 12-cylinder, 6-cylinder odd-fire, 24x, 58x, 12-1 and 36-1
* Electronic / points and magnetic trigger inputs
* Cam sync output for testing DIS / EFI systems
* Engine speed sweep test mode
* Battery voltage display
* Adjustable dwell / duty-cycle output
* Single knob controls all functions
* Compact design
* Easy hookup
* Power grid adapter harness included
* Spark plug tester included
Brand: MSD Ignition
Manufacturer's Part Number: 89981
Part Type: Ignition Testers
Product Line: MSD Universal Ignition Testers
HP Direct Part Number: MSD-89981
UPC: 085132899814
LCD Readout: Yes
Checks and Tests Ignition: Yes
Checks and Tests Coil: No
Checks and Tests Rev Limits: Yes
Checks and Tests RPM Switch Operation: Yes
Checks and Tests Shift Level RPM: No
Checks and Tests Tachometer Accuracy: Yes
Quantity: Sold individually.
