Description

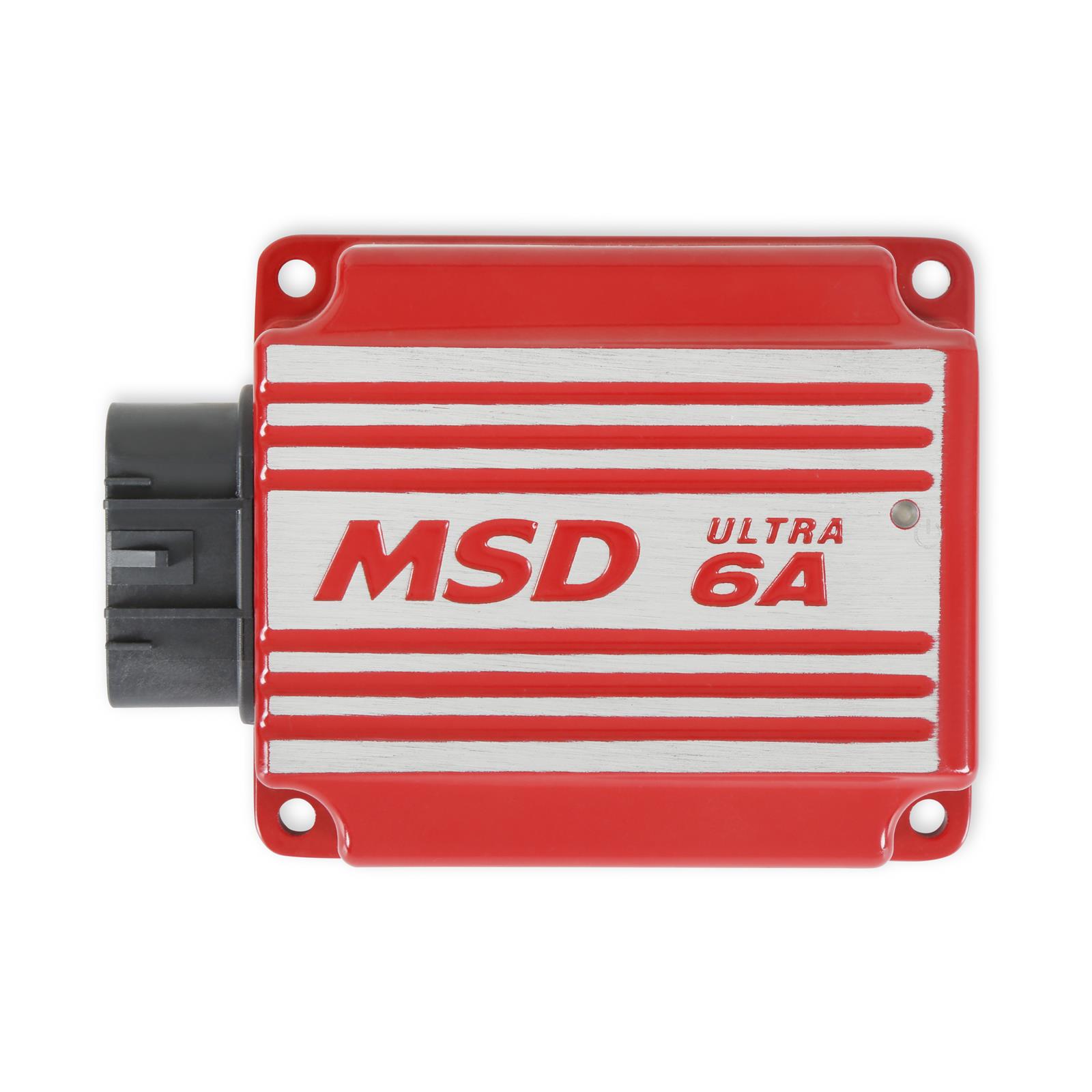

MSD Ultra 6A Series ignition boxes continue to use a high-speed controller that can make extremely quick compensations to the output voltage, multiple spark series, timing and rpm limits—while maintaining precise timing and accurate rev limiting. The circuits and controller of the MSD have been thoroughly filtered to create protection against Electro Magnetic Interference (EMI).
The Ultra 6A Series features a capacitive discharge ignition design. The majority of stock ignition systems are inductive ignitions. In an inductive ignition, the coil must store and step up the voltage to maximum strength in between each firing. At higher rpm, since there is less time to charge the coil to full capacity, the voltage falls short of reaching maximum energy—which results in a loss of power or top end miss.
Product features:
* Plug-and-play upgrade to current installations with a 6201, MSD 6A
* New processor and board design provide a highly efficient ignition, minimal heat and max spark energy with less current draw
* 60 percent smaller and 50 percent lighter than the MSD Digital 6A (688 grams vs 344 grams)
* High-RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
* Powerful capacitive discharge of multiple sparks improves performance, and ensure complete combustion
* Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline rpm
* Easily installs on 4, 6, 8-cylinder engines with distributors
* Operates on most 7 to 28 V electrical systems
* Connects to points and magnetic pickups
* Fully protected against an open coil, shorted coil and open load
* Compact design; full MSD power
* Quickens throttle response and improves starting
* Tach output to drive an external tachometer
Brand: MSD Ignition
Manufacturer's Part Number: 6202
Part Type: Ignition Boxes
Product Line: MSD Ultra 6A Ignition Boxes
HP Direct Part Number: MSD-6202
UPC: 090127145289
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: No
Timing Retard: None
Data Acquisition: No
Current Draw: 1.1 amps per 1,000 rpm
Spark Output (millijoules): 135-150 mJ
Minimum Operating Voltage: 7 V
Maximum Operating Voltage: 28 V
Length (in.): 3.300 in.
Width (in.): 3.800 in.
Ignition Box Color: Red
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
The Ultra 6A Series features a capacitive discharge ignition design. The majority of stock ignition systems are inductive ignitions. In an inductive ignition, the coil must store and step up the voltage to maximum strength in between each firing. At higher rpm, since there is less time to charge the coil to full capacity, the voltage falls short of reaching maximum energy—which results in a loss of power or top end miss.
Product features:
* Plug-and-play upgrade to current installations with a 6201, MSD 6A
* New processor and board design provide a highly efficient ignition, minimal heat and max spark energy with less current draw
* 60 percent smaller and 50 percent lighter than the MSD Digital 6A (688 grams vs 344 grams)
* High-RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
* Powerful capacitive discharge of multiple sparks improves performance, and ensure complete combustion
* Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline rpm
* Easily installs on 4, 6, 8-cylinder engines with distributors
* Operates on most 7 to 28 V electrical systems
* Connects to points and magnetic pickups
* Fully protected against an open coil, shorted coil and open load
* Compact design; full MSD power
* Quickens throttle response and improves starting
* Tach output to drive an external tachometer
Brand: MSD Ignition
Manufacturer's Part Number: 6202
Part Type: Ignition Boxes
Product Line: MSD Ultra 6A Ignition Boxes
HP Direct Part Number: MSD-6202
UPC: 090127145289
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: No
Timing Retard: None
Data Acquisition: No
Current Draw: 1.1 amps per 1,000 rpm
Spark Output (millijoules): 135-150 mJ
Minimum Operating Voltage: 7 V
Maximum Operating Voltage: 28 V
Length (in.): 3.300 in.
Width (in.): 3.800 in.
Ignition Box Color: Red
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
