Description

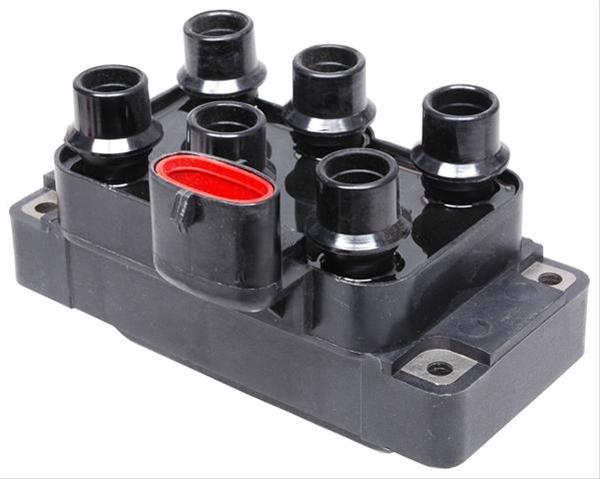

MSD Street Fire coils will improve the performance of your late model GM or Ford vehicle. The E-core dual connector and TFI coils feature epoxy-filled construction and maximum output voltage. They mount directly in place of the factory coil and accept the factory connectors for an easy installation.Brand: MSD Ignition
Manufacturer's Part Number: 5528
Part Type: Ignition Coils
Product Line: MSD Street Fire Coils
HP Direct Part Number: MSD-5528
UPC: 085132055289
Coil Style: Coil pack
Coil Wire Attachment: Female/Socket
Coil Color: Black/Red
Maximum Voltage: 40,000 V
Turns Ratio: 100:1
Peak Current: 200 mA
Spark Duration: 2.5 mS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular
Height (in.): 3.310 in.
Length (in.): 5.920 in.
Width (in.): 3.670 in.
Quantity: Sold individually.
CARB EO Number(s): D-40-42
Emissions: California EO Approved
Manufacturer's Part Number: 5528
Part Type: Ignition Coils
Product Line: MSD Street Fire Coils
HP Direct Part Number: MSD-5528
UPC: 085132055289
Coil Style: Coil pack
Coil Wire Attachment: Female/Socket
Coil Color: Black/Red
Maximum Voltage: 40,000 V
Turns Ratio: 100:1
Peak Current: 200 mA
Spark Duration: 2.5 mS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular
Height (in.): 3.310 in.
Length (in.): 5.920 in.
Width (in.): 3.670 in.
Quantity: Sold individually.
CARB EO Number(s): D-40-42
Emissions: California EO Approved
