Description

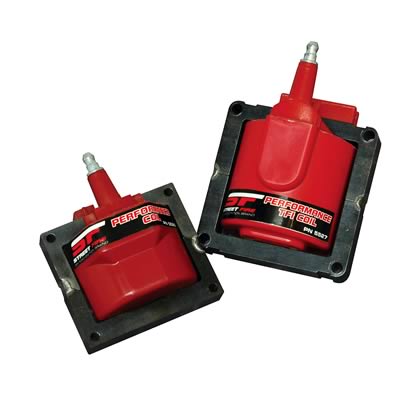

MSD Street Fire coils will improve the performance of your late model GM or Ford vehicle. The E-core dual connector and TFI coils feature epoxy-filled construction and maximum output voltage. They mount directly in place of the factory coil and accept the factory connectors for an easy installation.Brand: MSD Ignition
Manufacturer's Part Number: 5526
Part Type: Ignition Coils
Product Line: MSD Street Fire Coils
HP Direct Part Number: MSD-5526
UPC: 085132055265
Coil Style: Remote mount
Primary Resistance: 0.450 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 43,000 V
Turns Ratio: 85:1
Secondary Resistance: 5.50K ohms
Inductance: 7.0 mH
Peak Current: 220 mA
Spark Duration: 250 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Manufacturer's Part Number: 5526
Part Type: Ignition Coils
Product Line: MSD Street Fire Coils
HP Direct Part Number: MSD-5526
UPC: 085132055265
Coil Style: Remote mount
Primary Resistance: 0.450 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 43,000 V
Turns Ratio: 85:1
Secondary Resistance: 5.50K ohms
Inductance: 7.0 mH
Peak Current: 220 mA
Spark Duration: 250 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
