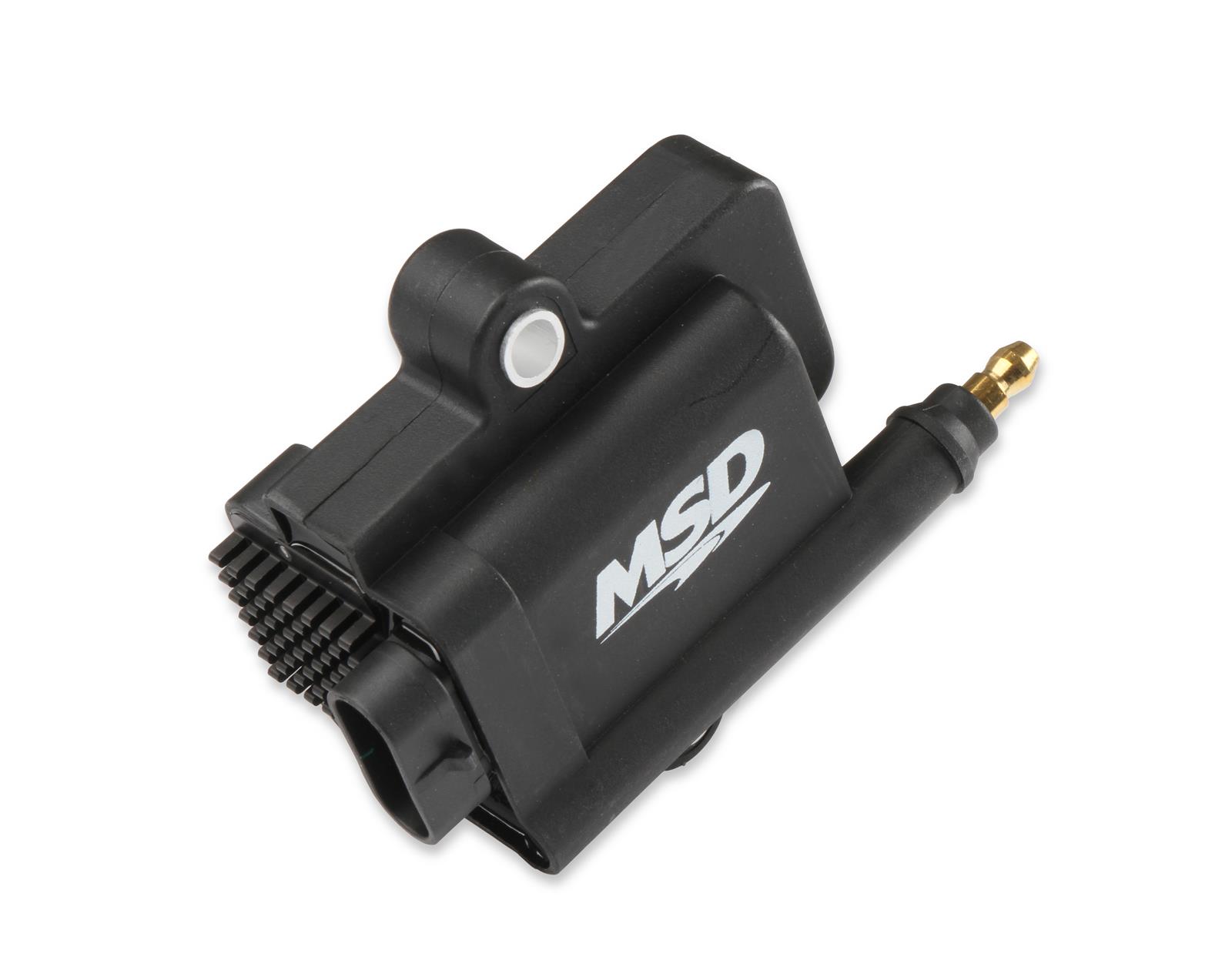

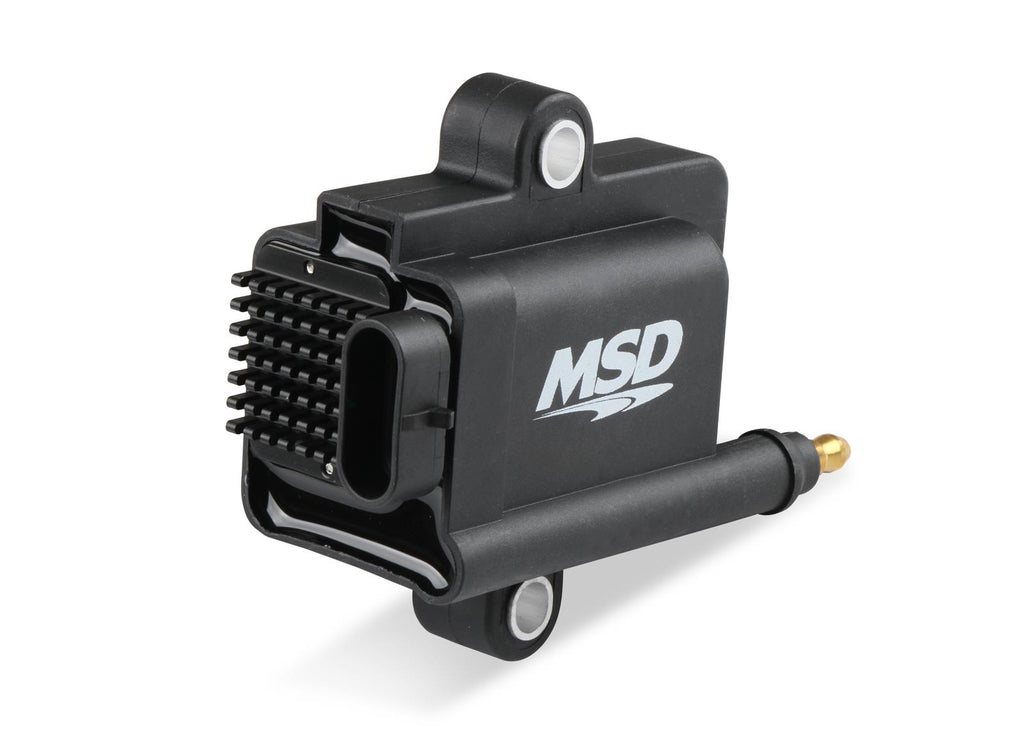

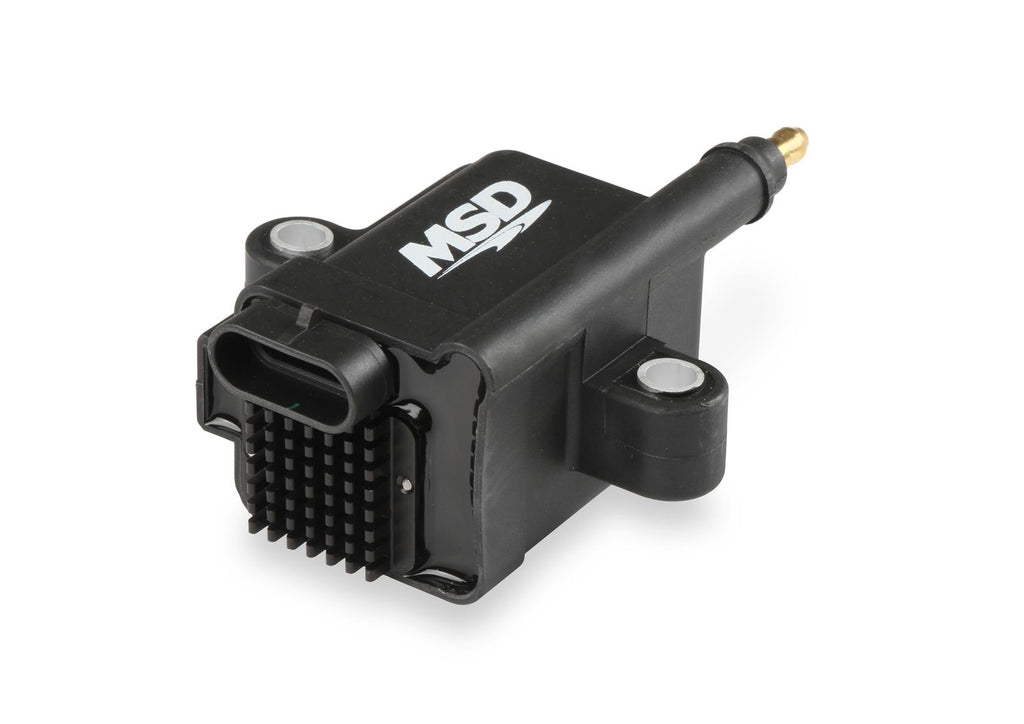

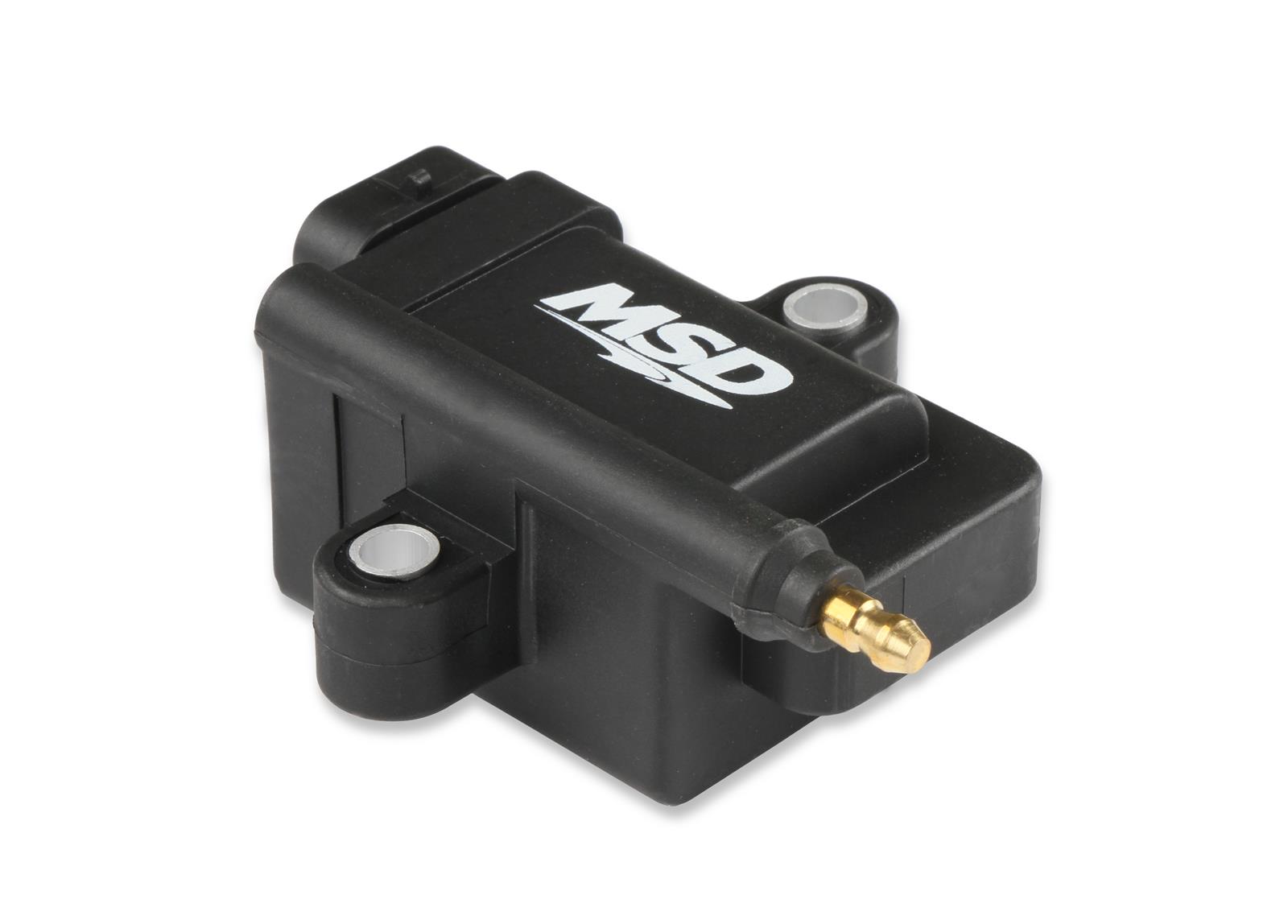

MSD Smart Coils 82893

MSD Smart Coils were developed to produce more spark energy while consuming less power without sacrificing voltage output. This means you get hotter spark at the plug to burn the maximum amount of fuel in each cylinder while using less power from your electrical system. Smart Coils are compatible with popular aftermarket electronic fuel injection systems and will run on traditional 12 V or 16 V electrical systems found in race applications. The coils feature unique elongated mounting holes to accommodate popular mounting brackets or allow them to bolt in place of an LS coil with 72mm bolt spacing.Brand: MSD Ignition
Manufacturer's Part Number: 82893
Part Type: Ignition Coils
Product Line: MSD Smart Coils
HP Direct Part Number: MSD-82893
UPC: 090127077320
Coil Style: Remote mount
Primary Resistance: 0.550 ohms
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 50,000 V
Turns Ratio: 69:1
Inductance: 5.20 mH
Peak Current: 201 mJ
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular
Quantity: Sold individually.
Notes: Fits Holley cast aluminum LS valve covers with 72mm bolt spacing.
