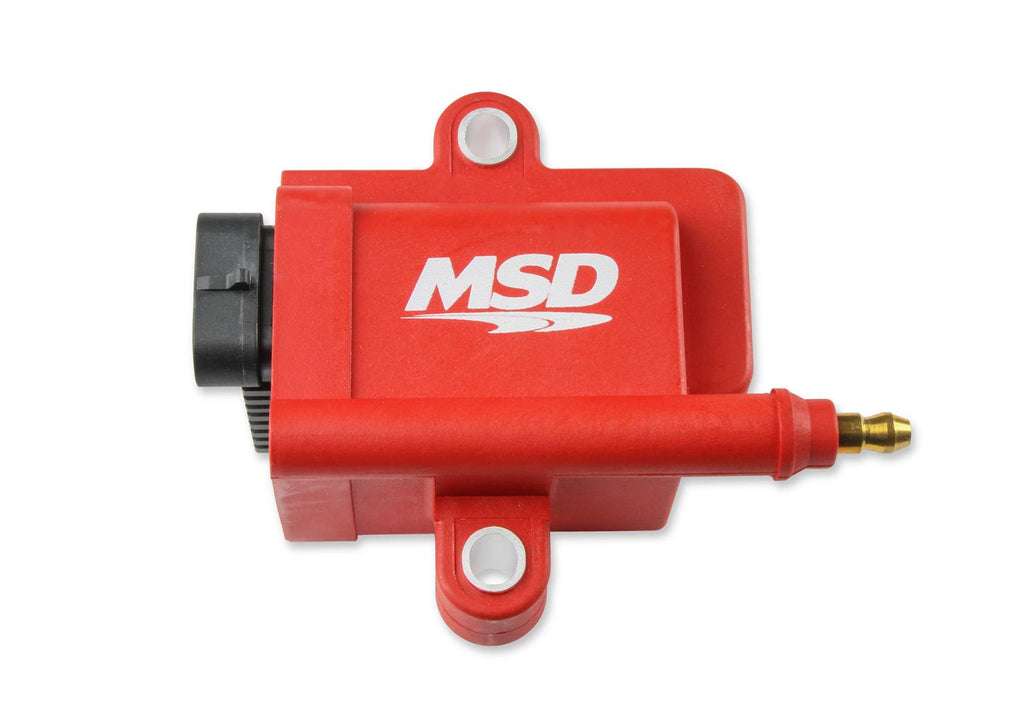

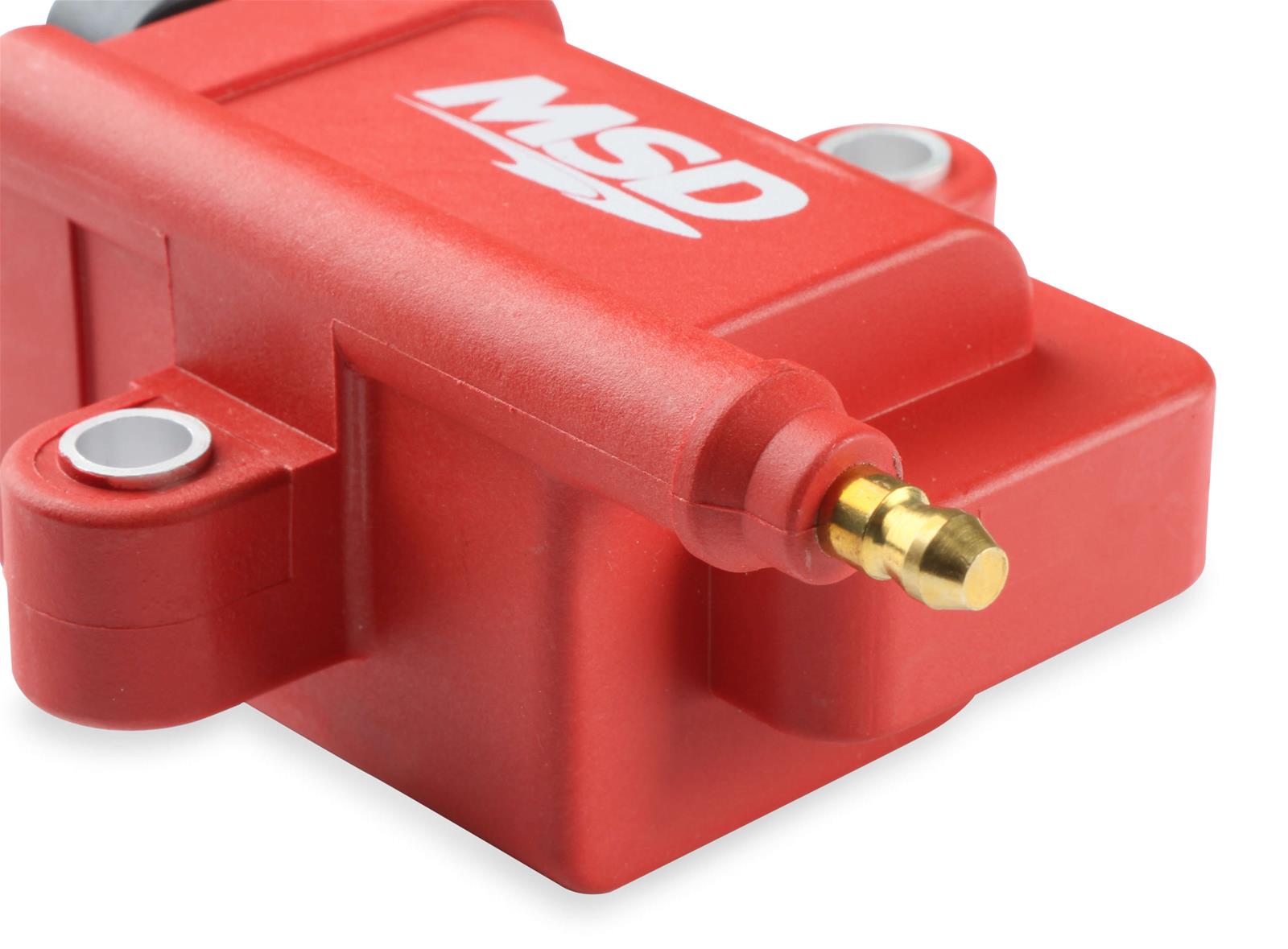

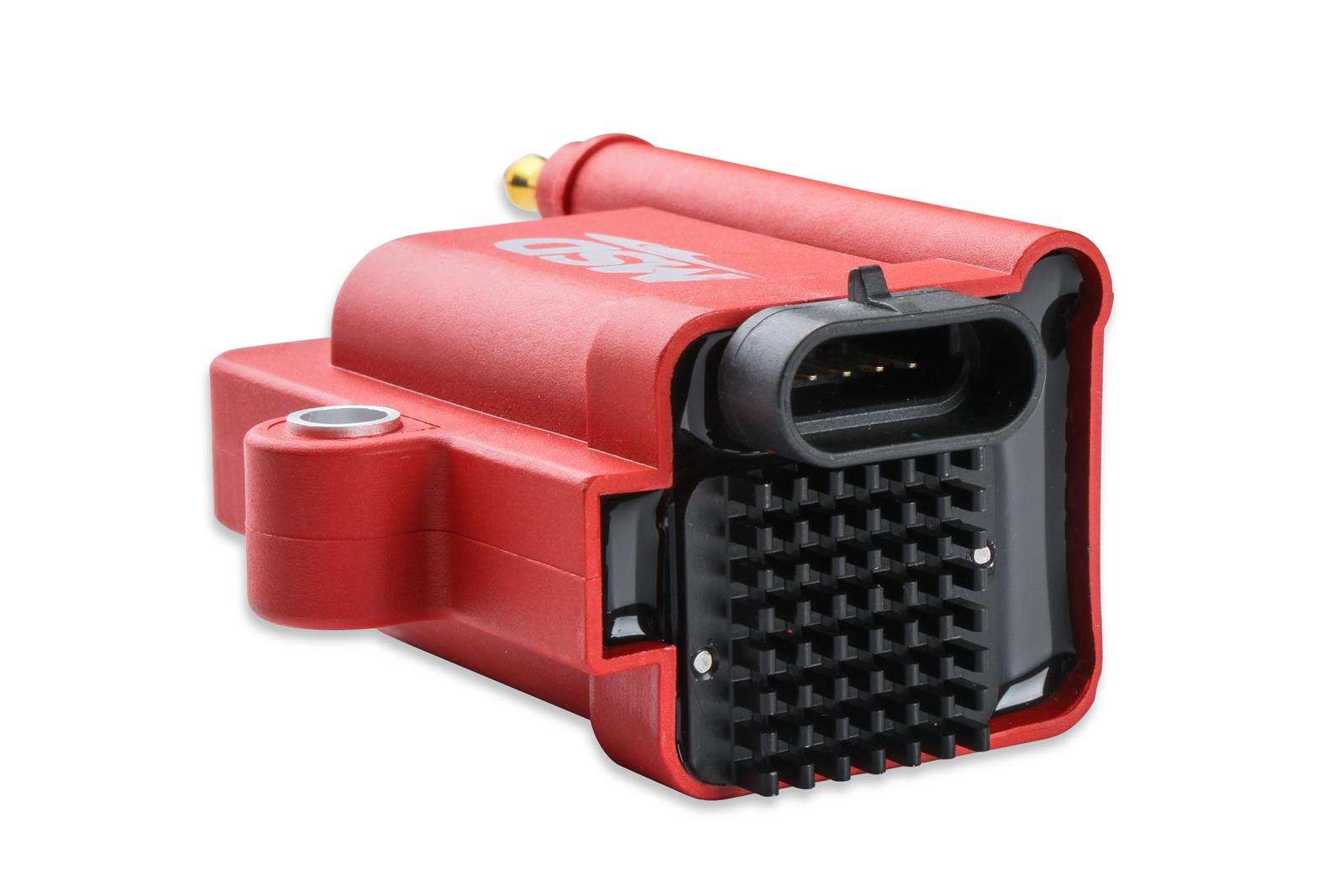

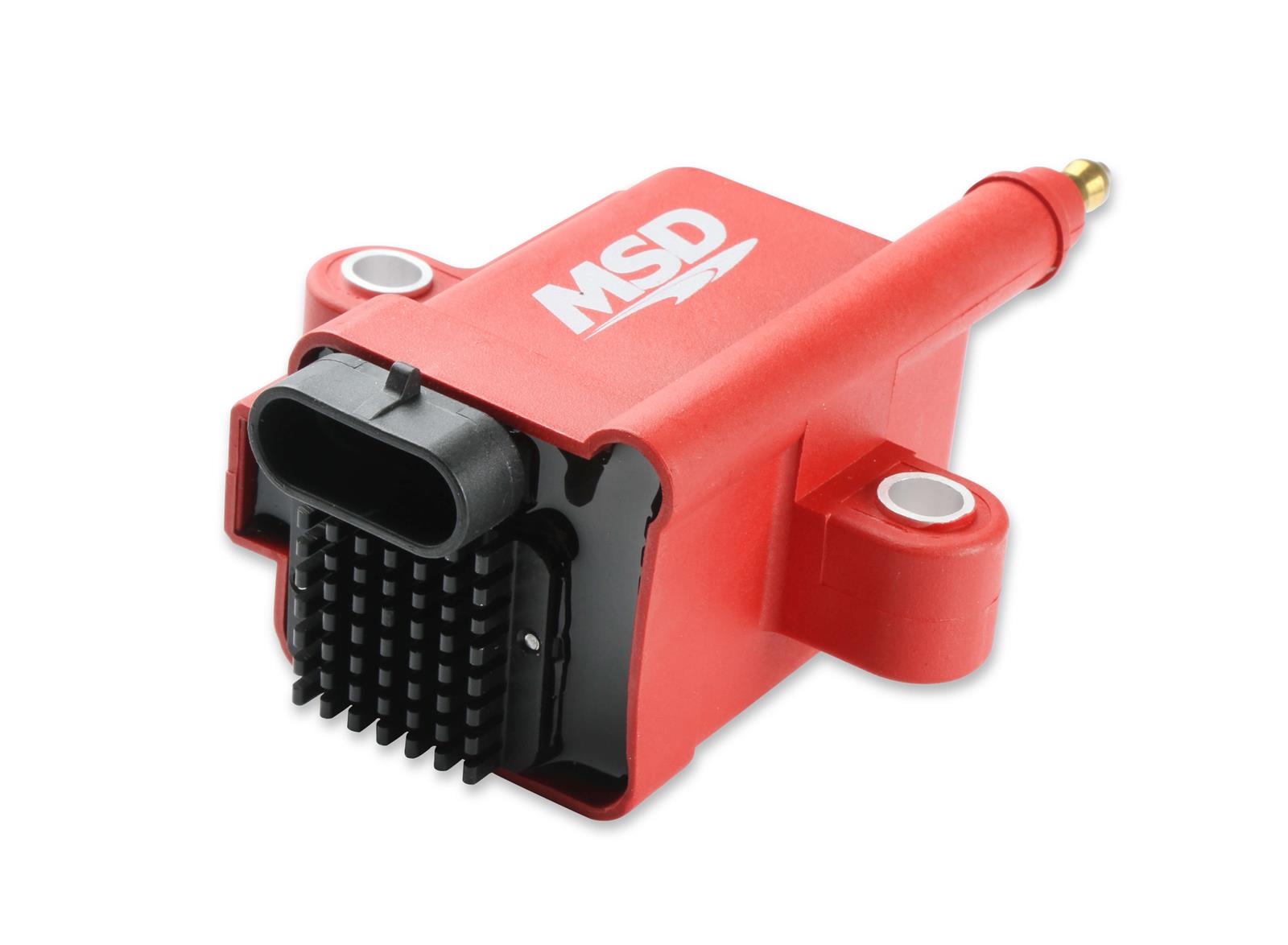

MSD Smart Coils 8289-KIT

MSD Smart Coils were developed to produce more spark energy while consuming less power without sacrificing voltage output. This means you get hotter spark at the plug to burn the maximum amount of fuel in each cylinder while using less power from your electrical system. Smart Coils are compatible with popular aftermarket electronic fuel injection systems and will run on traditional 12 V or 16 V electrical systems found in race applications. The coils feature unique elongated mounting holes to accommodate popular mounting brackets or allow them to bolt in place of an LS coil with 72mm bolt spacing.Brand: MSD Ignition
Manufacturer's Part Number: 8289-KIT
Part Type: Ignition Coils
Product Line: MSD Smart Coils
HP Direct Part Number: MSD-8289-KIT
UPC: 090127077368
Coil Style: Coil pack
Primary Resistance: 0.550 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Red
Maximum Voltage: 50,000 V
Turns Ratio: 69:1
Inductance: 5.20 mH
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold as a kit.

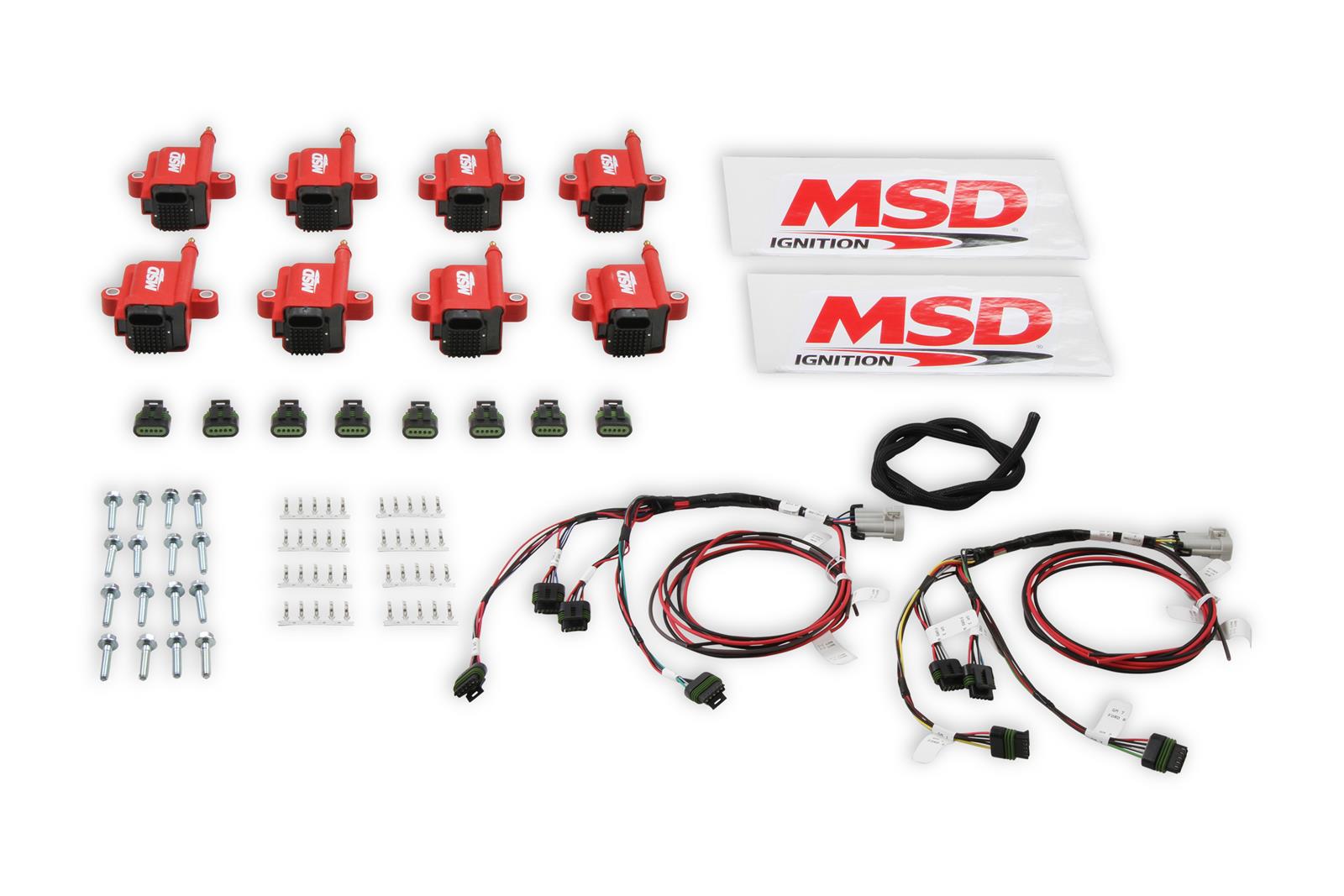

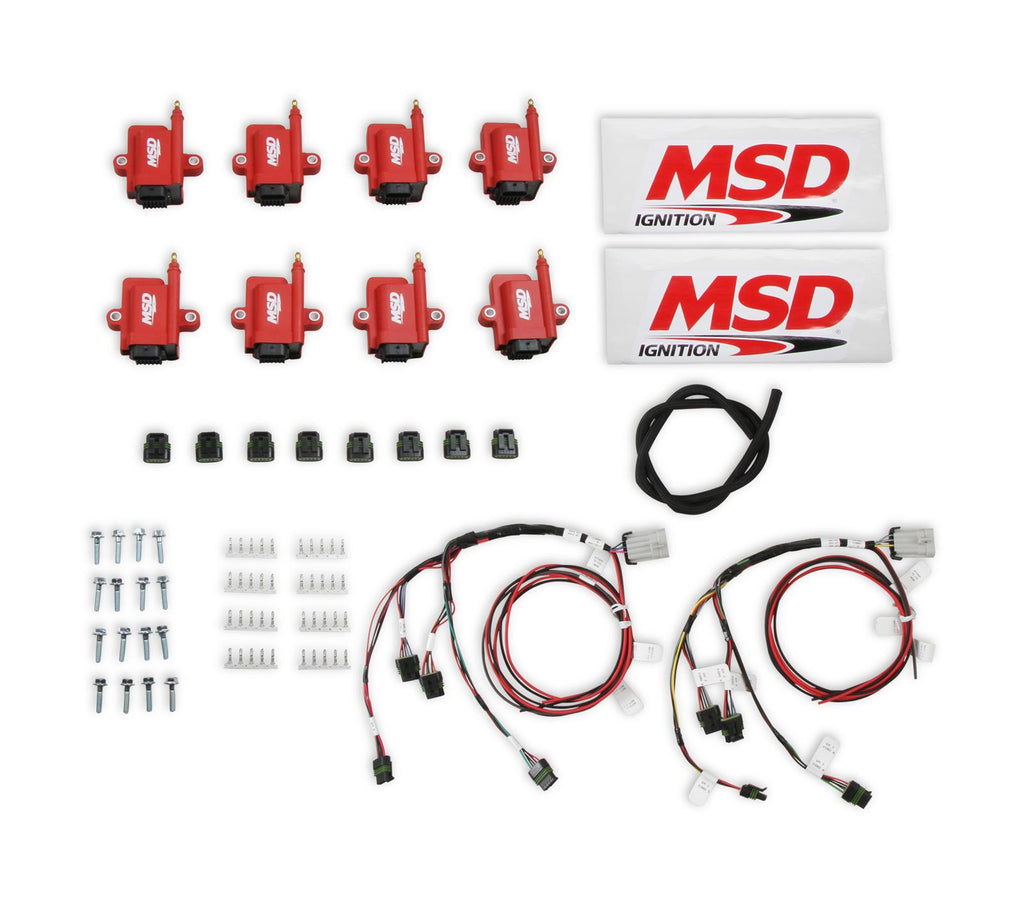

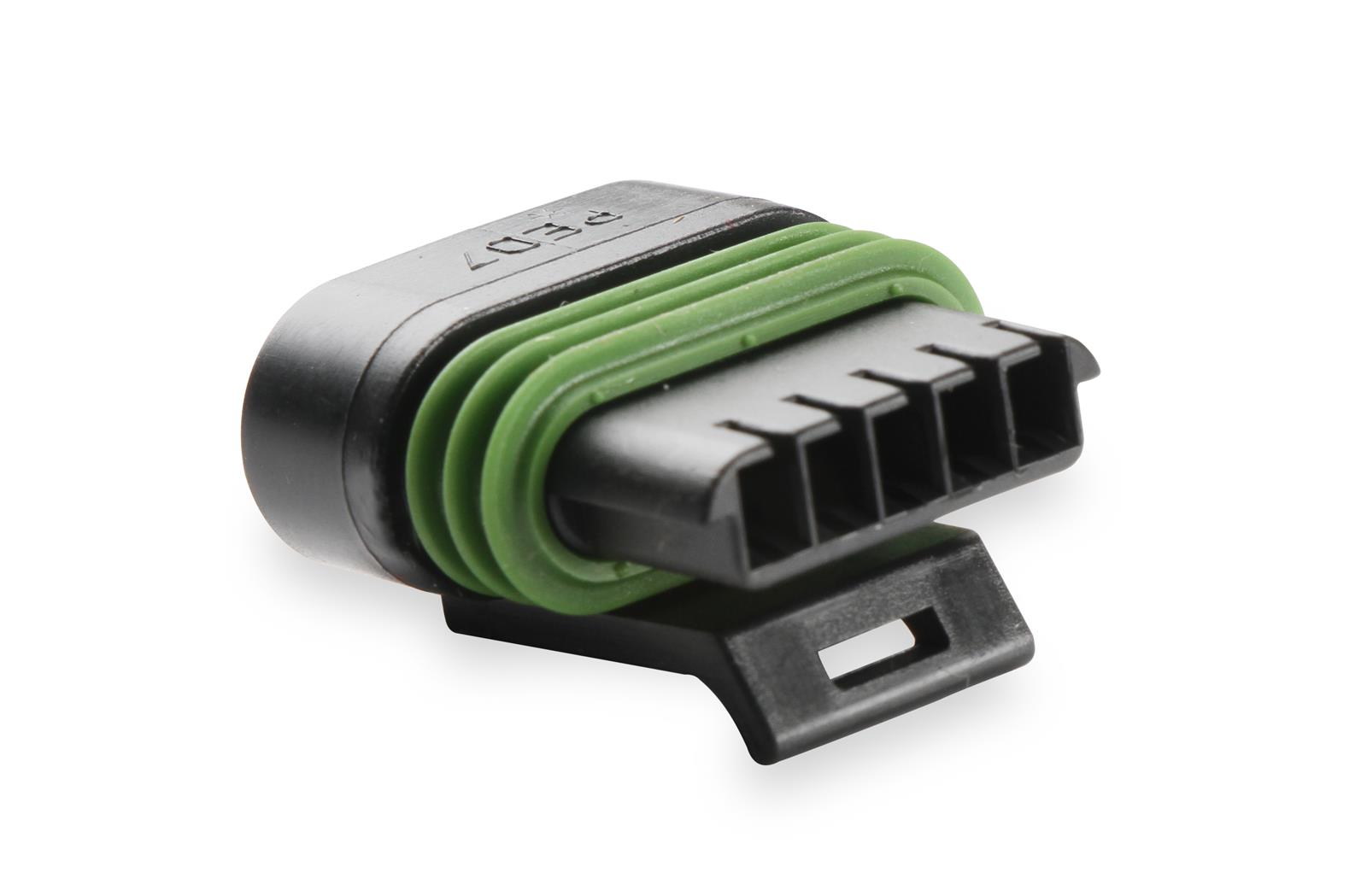

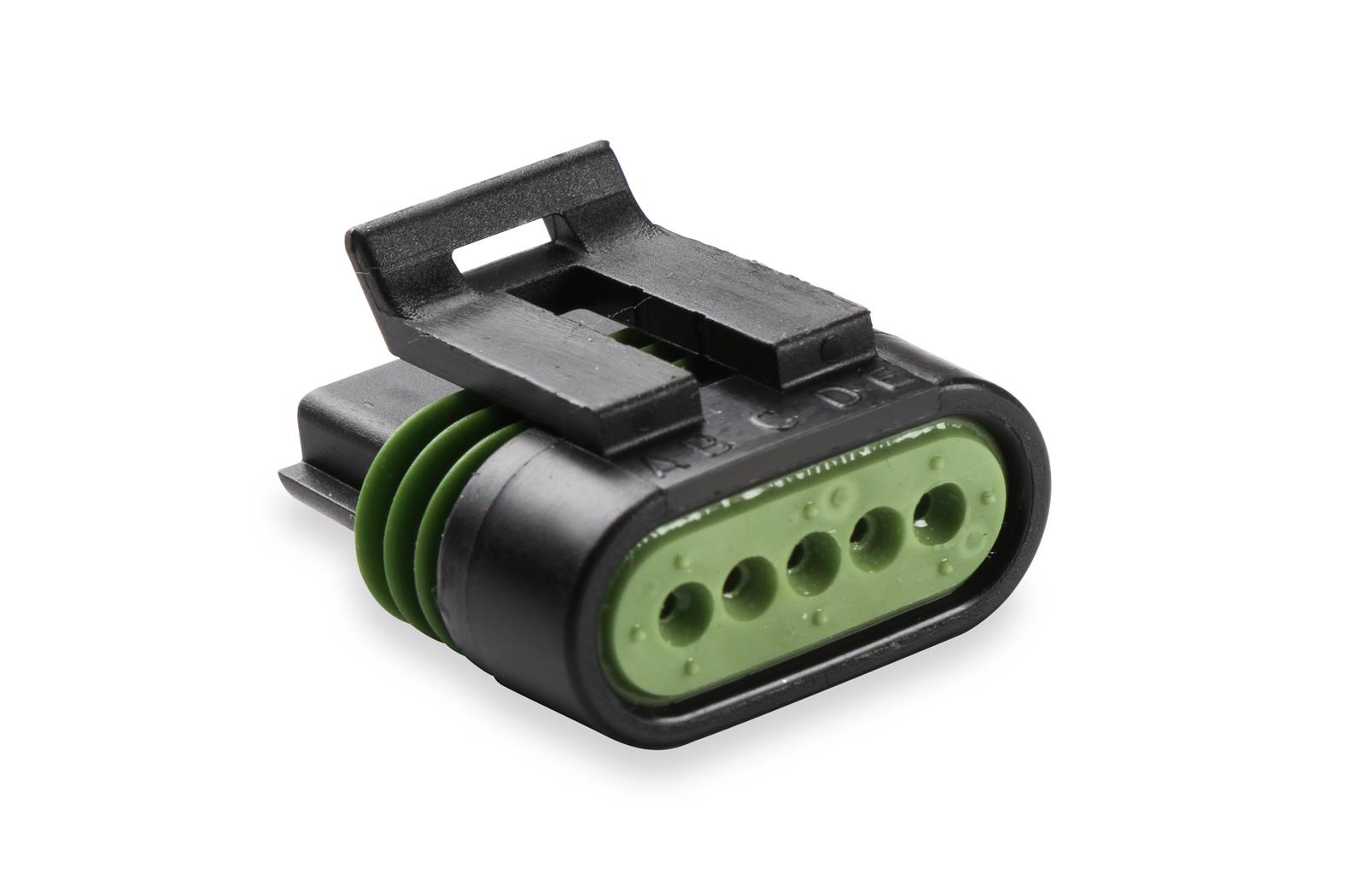

Notes: Kit includes two terminated harness with 7-pin connector for easy plug-in for Holley LSx main harness or factory GM LSx harness.
