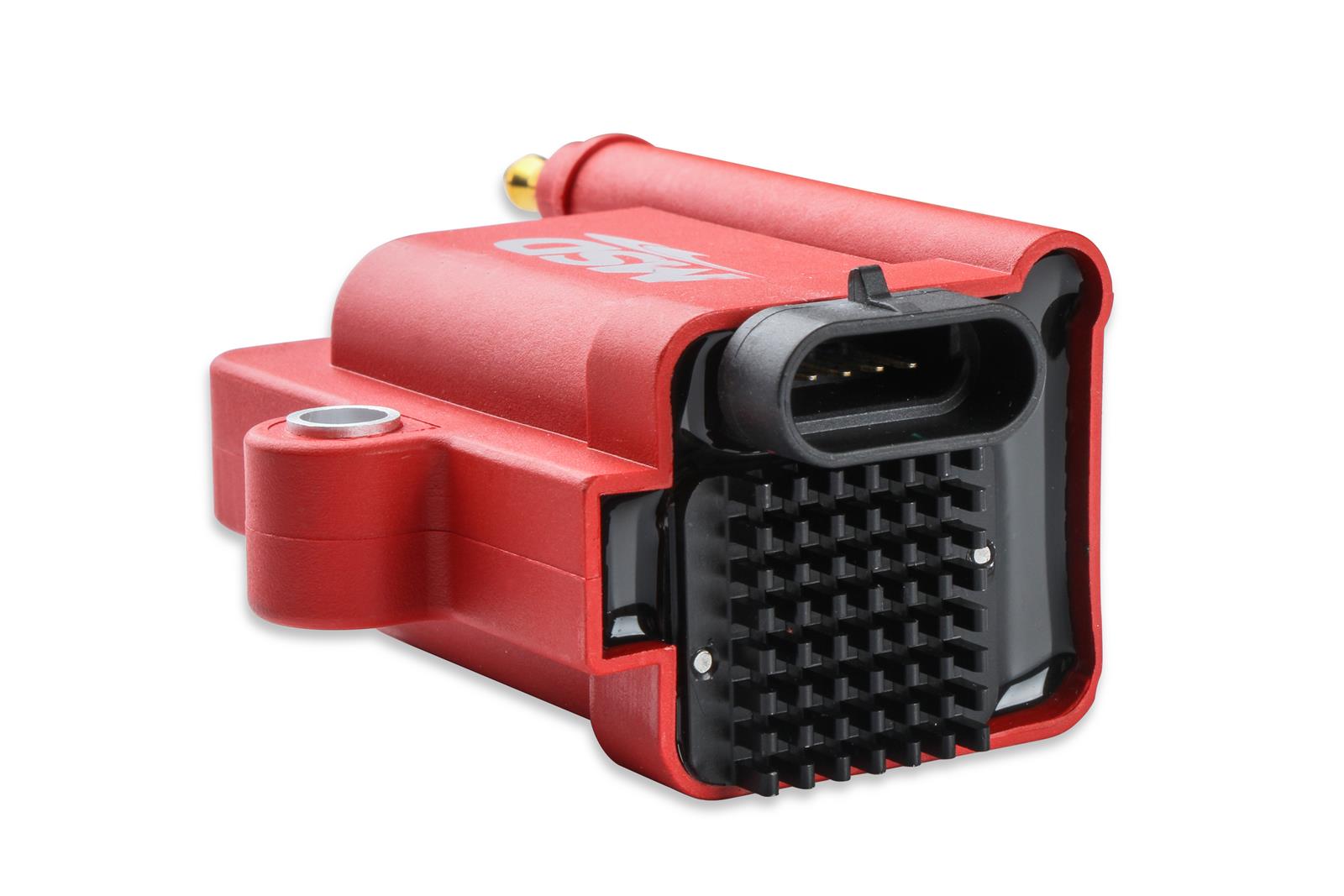

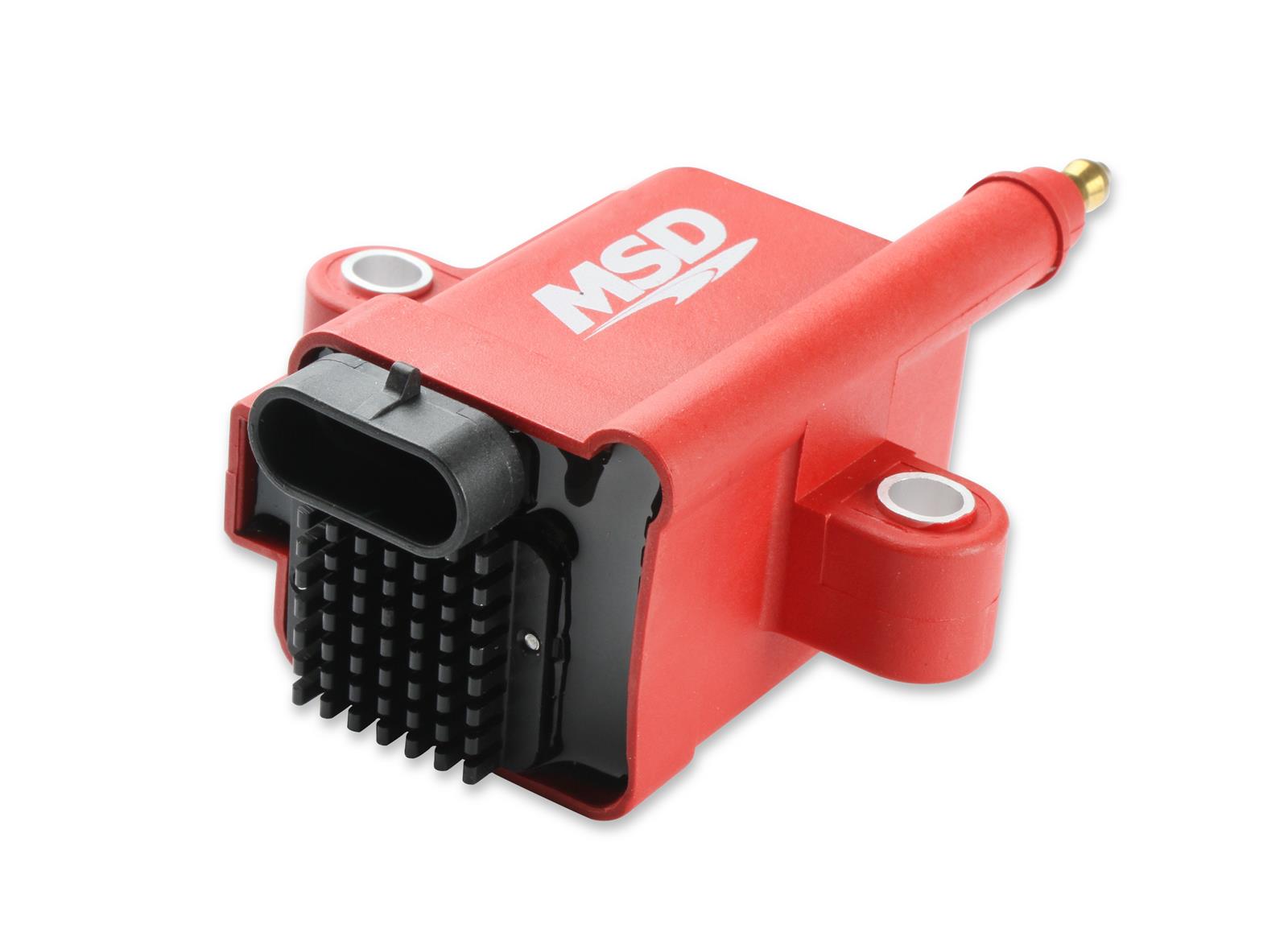

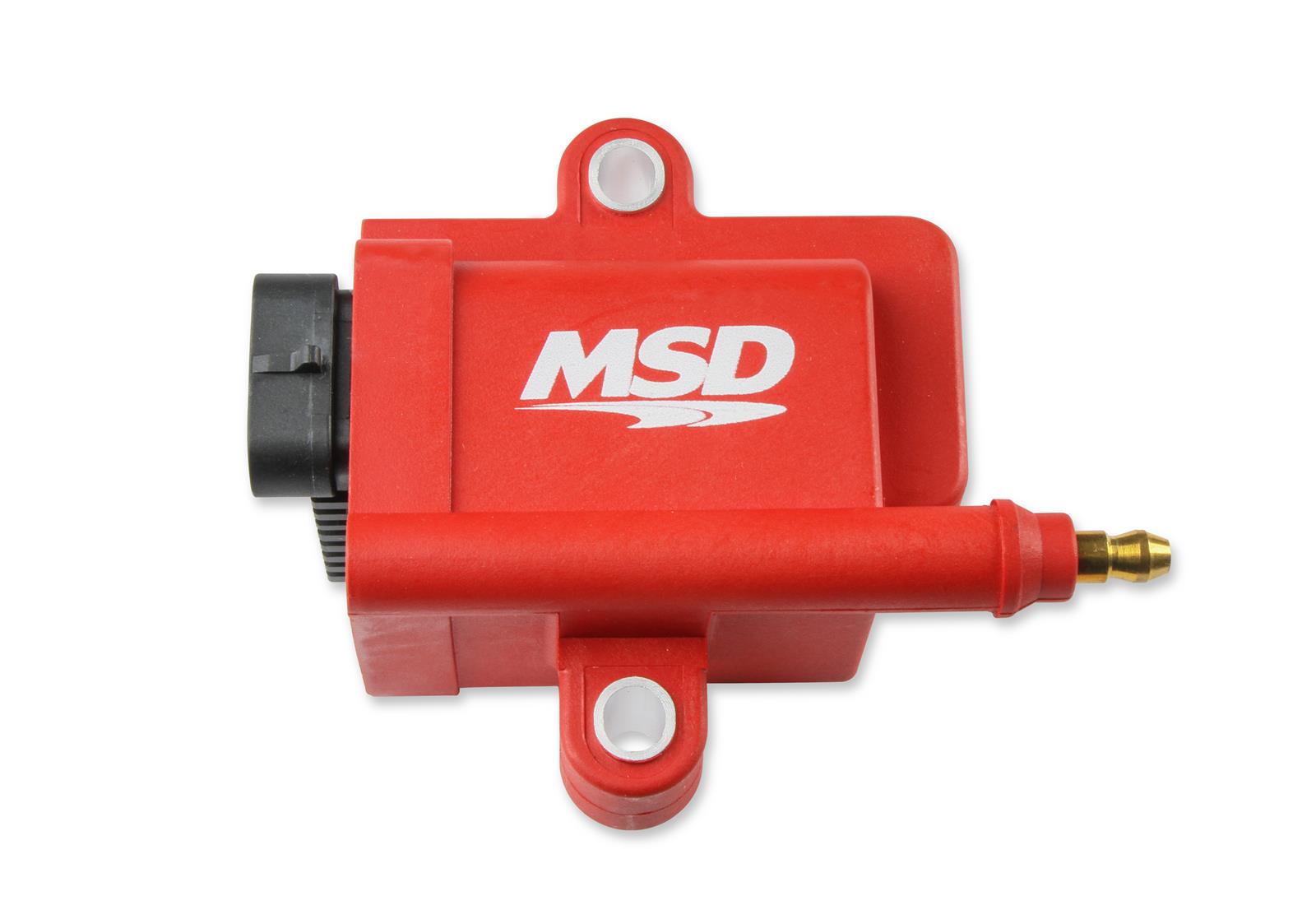

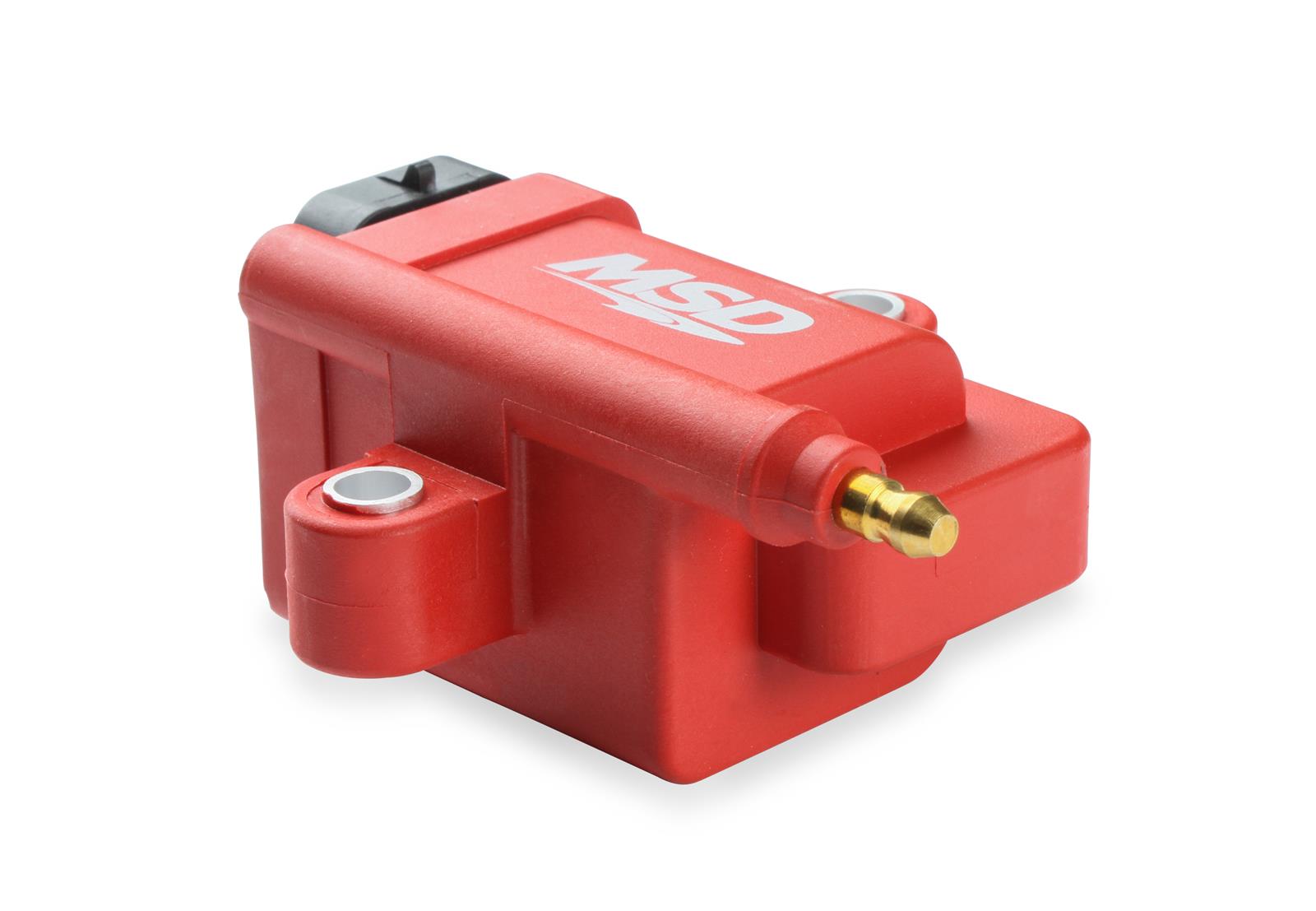

MSD Smart Coils 8289

MSD Smart Coils were developed to produce more spark energy while consuming less power without sacrificing voltage output. This means you get hotter spark at the plug to burn the maximum amount of fuel in each cylinder while using less power from your electrical system. Smart Coils are compatible with popular aftermarket electronic fuel injection systems and will run on traditional 12 V or 16 V electrical systems found in race applications. The coils feature unique elongated mounting holes to accommodate popular mounting brackets or allow them to bolt in place of an LS coil with 72mm bolt spacing.Brand: MSD Ignition
Manufacturer's Part Number: 8289
Part Type: Ignition Coils
Product Line: MSD Smart Coils
HP Direct Part Number: MSD-8289
UPC: 090127077252
Coil Style: Remote mount
Primary Resistance: 0.550 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 50,000 V
Turns Ratio: 69:1
Inductance: 5.20 mH
Peak Current: 201 mJ
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular
Quantity: Sold individually.
Notes: For use with Holley EFI and many aftermarket ECUs. Features 72mm bolt spacing for direct replacement for LS engines.
