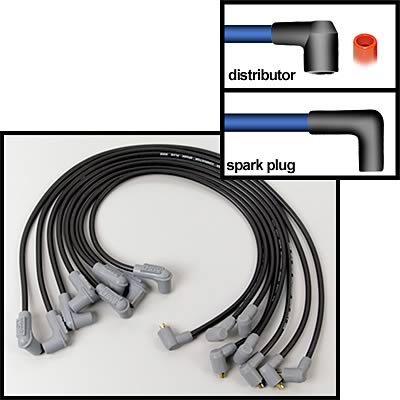

MSD Race Tailored Super Conductor Wire Sets 31593

MSD 8.5 mm Race Tailored Super Conductor Wire Sets are designed to specifically fit race engines equipped with headers or MSD distributors. They feature wires that are custom cut to route behind the block, under the headers, and to the spark plugs. This routing gives the engine an extra clean appearance as well as protecting the wires from making contact with the engine. The wires have a special helically-wound core that has just 40-50 ohms of resistance per foot--but with the RFI suppression equal to a 1,500 ohm wire. In fact, each foot of finished wire features 40 feet of tightly wound copper for superior conductivity. A tough 8.5 mm synthetic/silicone jacket over an extra heavy glass braid and dielectric insulator keeps the current guided to the plugs. Underneath the high-temperature boots, stainless steel terminals feature snap locks to assure a secure fit.Brand: MSD Ignition
Manufacturer's Part Number: 31593
Part Type: Spark Plug Wire Sets
Product Line: MSD Race Tailored Super Conductor Wire Sets
HP Direct Part Number: MSD-31593
UPC: 085132315932
Assembled: Yes

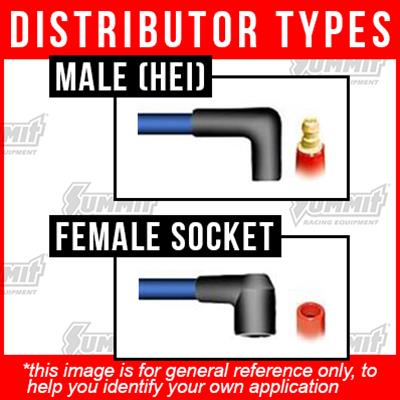

Distributor Terminal Type: Female/Socket
Distributor Boot Color: Gray
Distributor Boot Material: Silicone
Spark Plug Boot Ends: Eight 90 degree
Spark Plug Boot Color: Gray
Spark Plug Boot Material: Silicone
Diameter (mm): 8.50mm
Wire Color: Black
RFI Suppression: Yes
Coil Wire Included: Yes
Conductor Style: Spiral core
Spark Plug Wire Resistance: 50 ohms/ft.
Quantity: Sold as a set.
Notes: Wires route below header/exhaust manifold.
