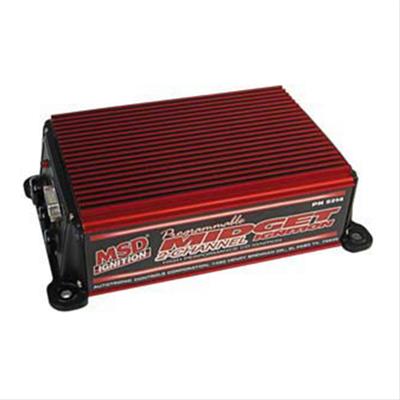

MSD Programmable Midget Ignitions 6214

MSD programmable Midget ignitions help deliver every ounce of power from your Midget engine. They're a complete electronic distributorless system with a powerful capacitive discharge ignition control, and a four-tower, high output coil pack that uses two non-magnetic pickups with a trigger wheel. MSD has taken all of the mechanical variables out of the picture and given you exact ignition timing for more power, more control, and more performance. You can precisely program the timing throughout the engine's entire rpm range. Their programmable features include the ability to: Plot two timing curves ranging from 800-15,000 rpm in 0.1 degree increments, program a start retard for easier timing, select a rev limit from 2,000-15,000 rpm in 100 rpm increments, and switch between two timing curves as track conditions change during a race! These features can be programmed from a PC with MSD's Pro-Data+ software, or with the available hand-held monitor.Brand: MSD Ignition
Manufacturer's Part Number: 6214
Part Type: Ignition Boxes
Product Line: MSD Programmable Midget Ignitions
HP Direct Part Number: MSD-6214
UPC: 085132062140
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: One-stage
Data Acquisition: No
CD Voltage Output to Coil: 490-505 V
Current Draw: 0.8 amps per 1,000 rpm
Spark Output (millijoules): 190 mJ
Minimum Operating Voltage: 9 V
Maximum Operating Voltage: 18 V
Length (in.): 6.500 in.
Height (in.): 2.250 in.
Width (in.): 4.500 in.
Ignition Box Color: Red
Coil Included: No
Quantity: Sold individually.
