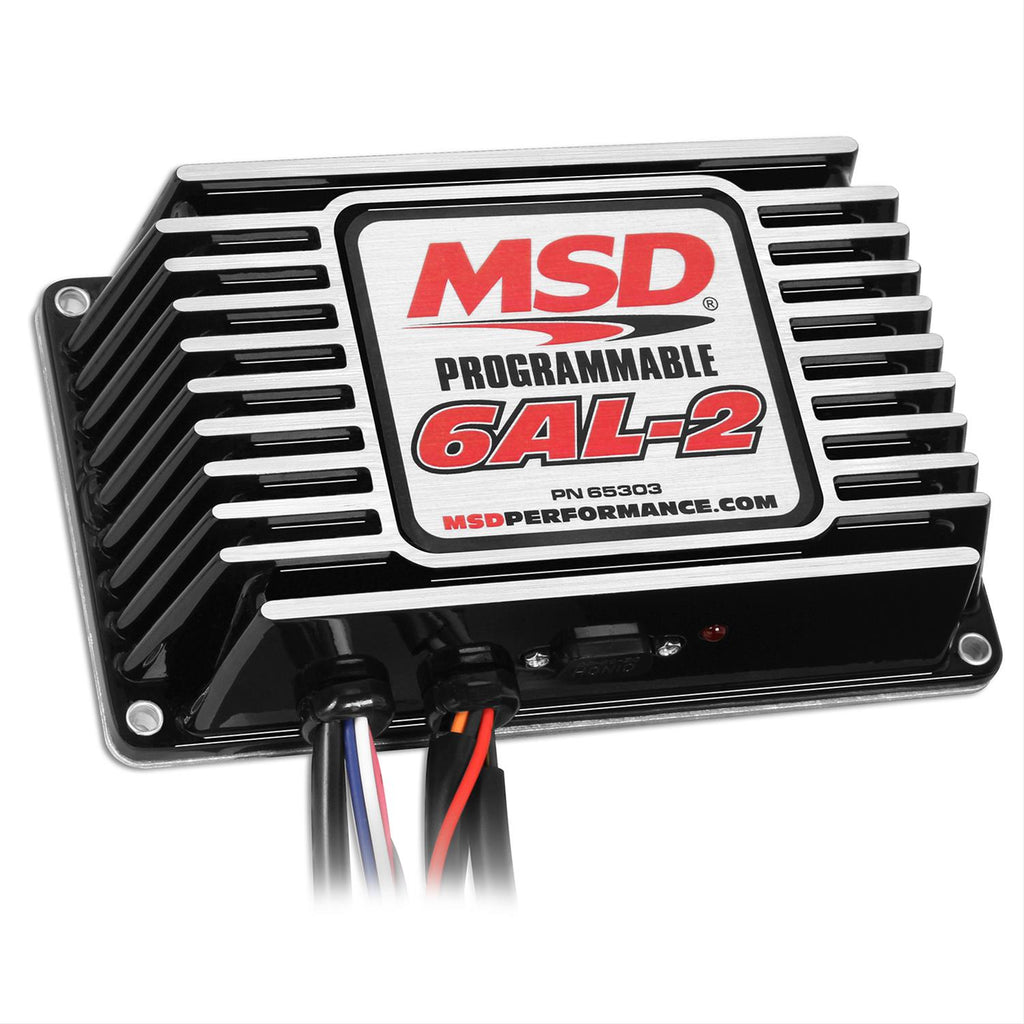

MSD Programmable Digital 6AL-2 Ignition Boxes 65303

These new MSD programmable digital 6AL-2 ignition boxes give you the ability to tune an ignition curve or boost timing map from a PC. You still receive the 20 degree duration of multiple sparks combined with higher output to ensure complete combustion. The all-new MSD programmable digital 6AL-2 ignition boxes will easily connect to nearly any 12 V negative ground distributor system, even Hall-effect pickups. They offer higher output with up to 135mJ and 535 V and accept points and mag pickup triggers.Brand: MSD Ignition
Manufacturer's Part Number: 65303
Part Type: Ignition Boxes
Product Line: MSD Programmable Digital 6AL-2 Ignition Boxes
HP Direct Part Number: MSD-65303
UPC: 085132653034
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: One-stage
Data Acquisition: No
CD Voltage Output to Coil: 535 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 135 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 7.000 in.
Height (in.): 2.000 in.
Width (in.): 4.000 in.
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: GM HEI bypass cable and PC connect cable are included.
CARB EO Number(s): D-115-22
Emissions: California EO Approved
