Description

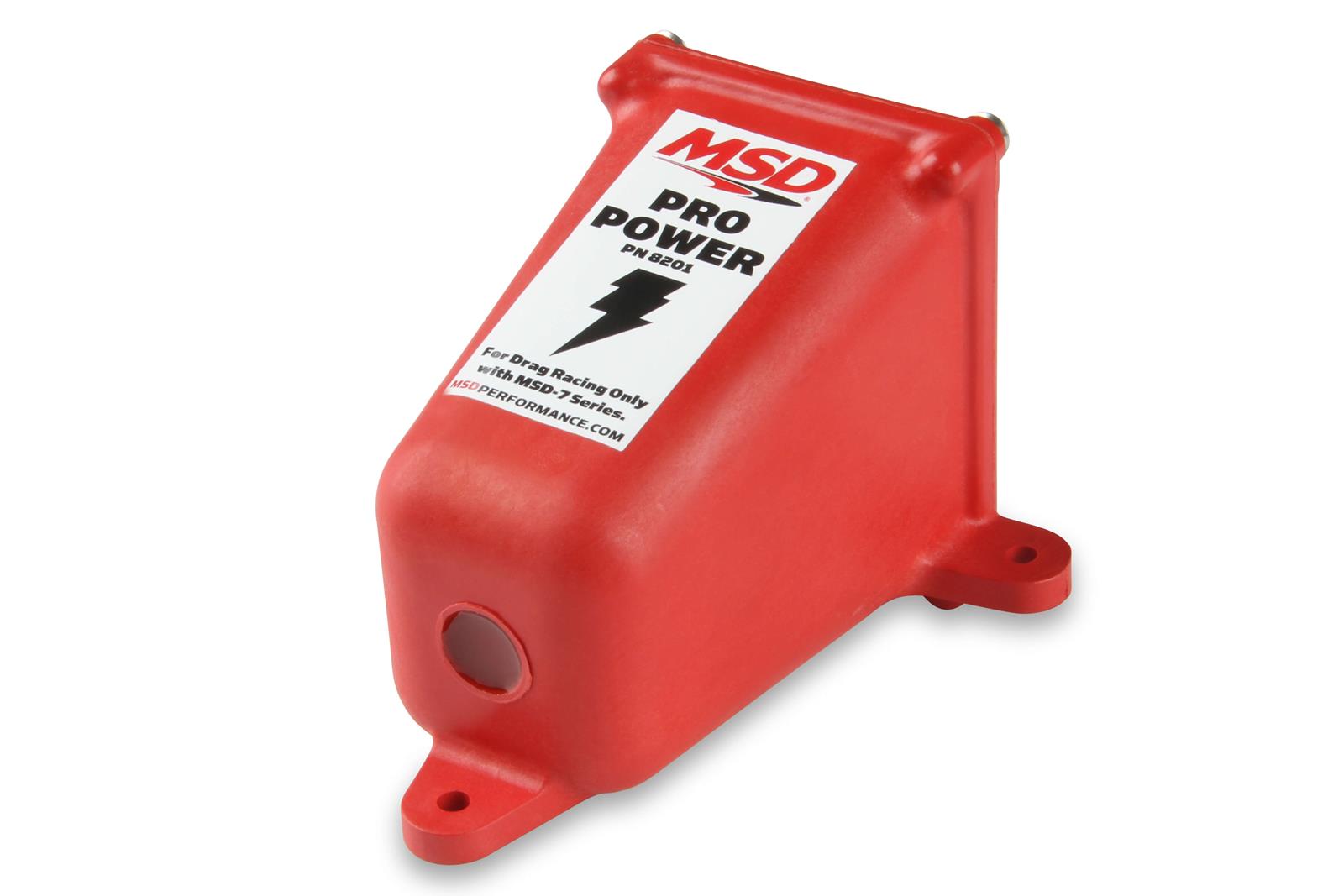

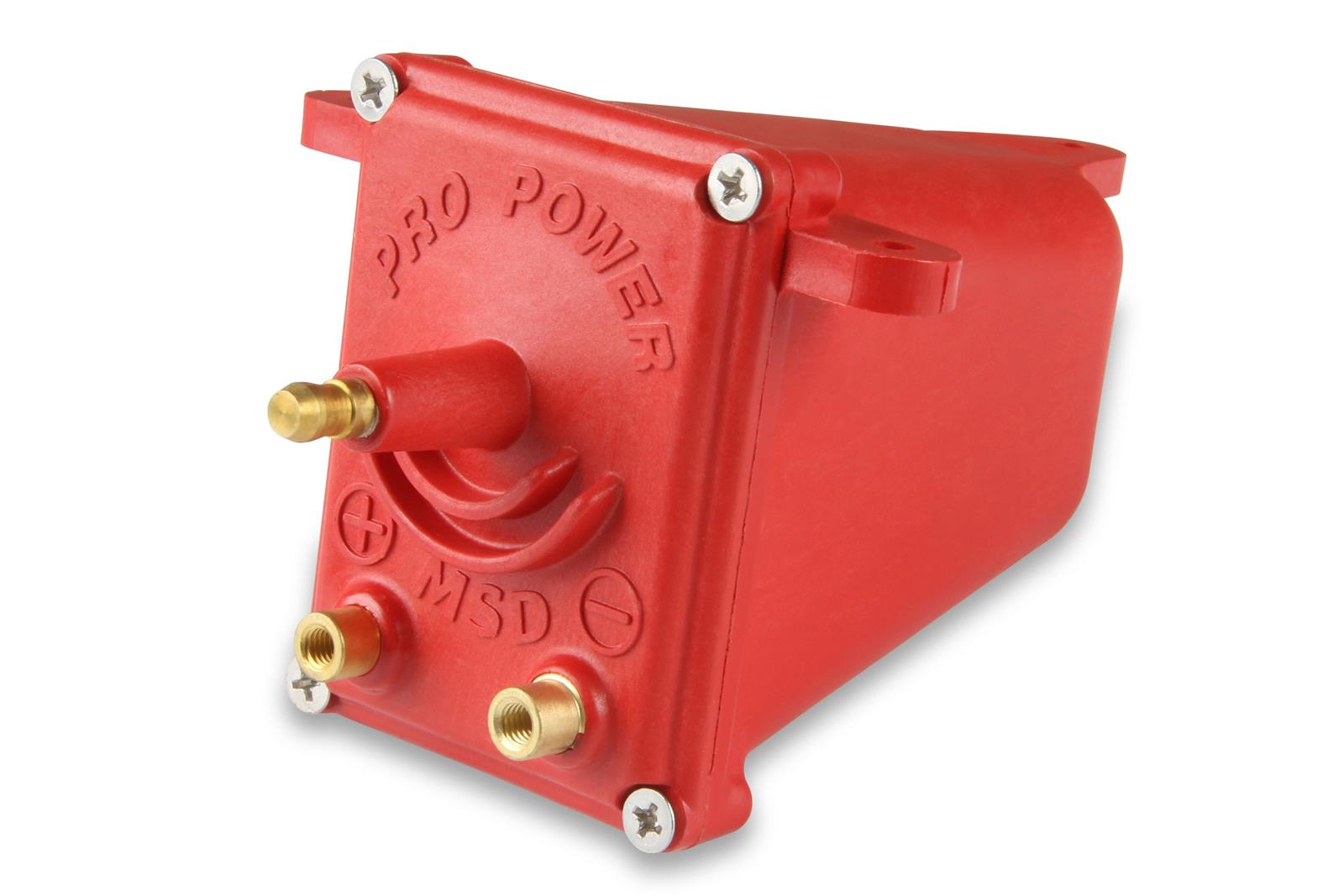

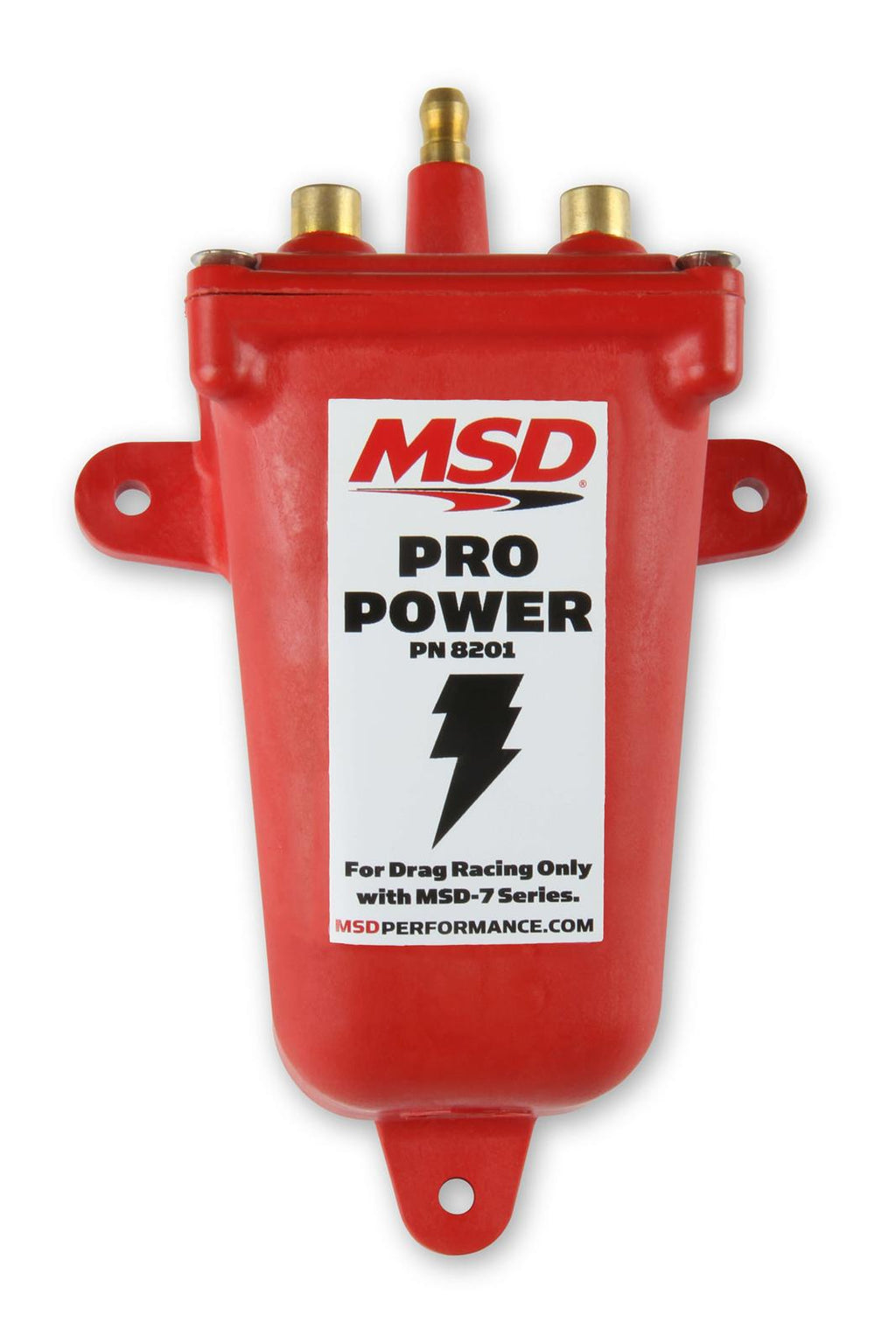

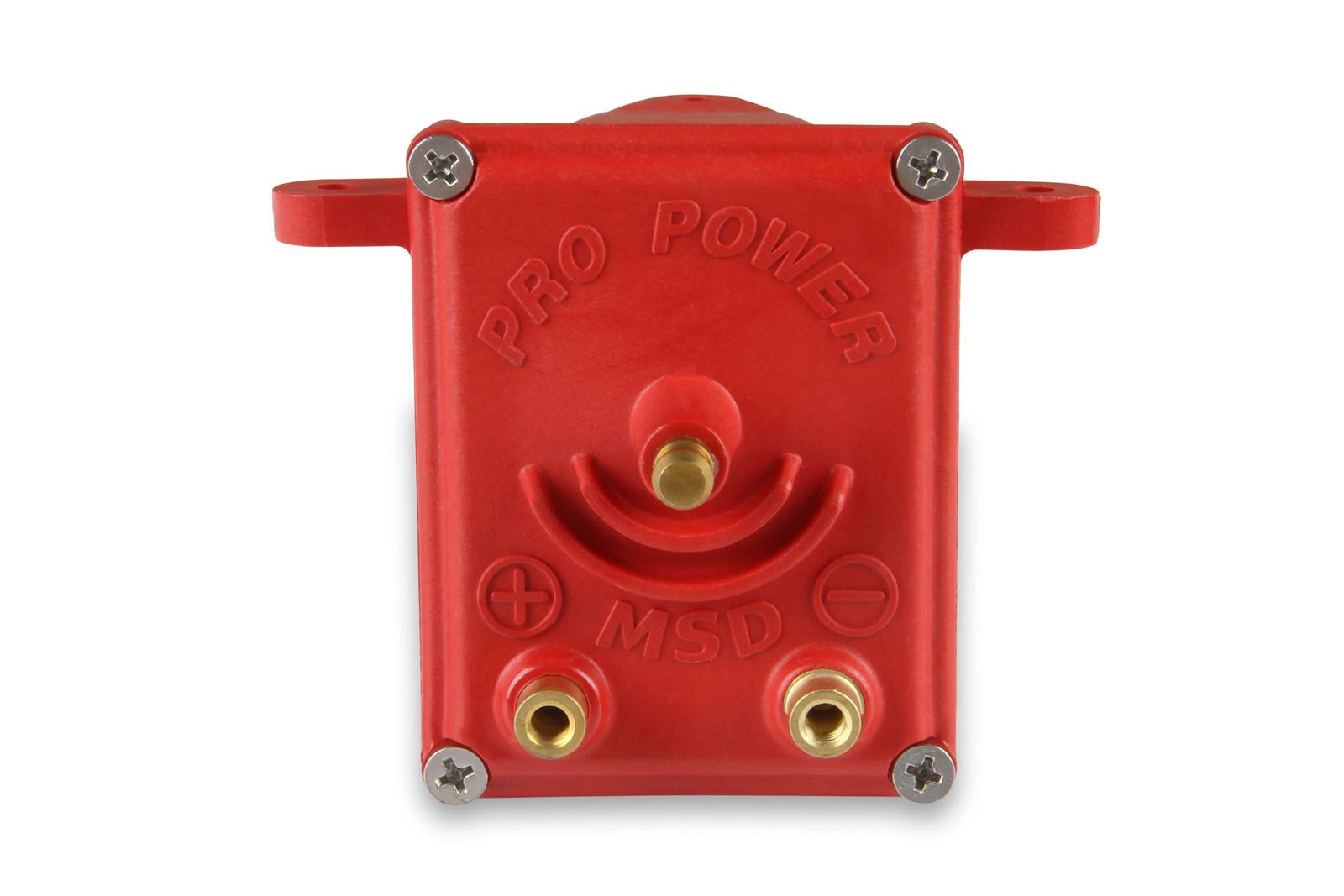

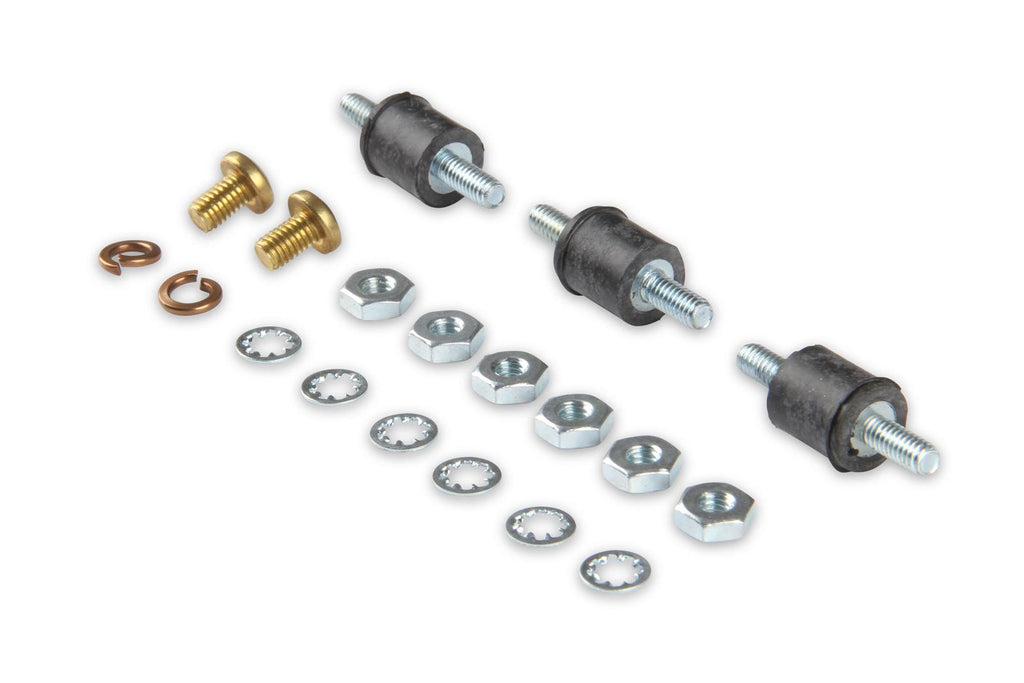

When tested against a competitor's coil, the MSD Pro Power coils produced 33 percent more current at the plug. They have an oil-filled insulated polyester case, an extra-tall high-tension spark plug tower to stop voltage leaks, and rubber shock mounts. They're designed for drag race use only, with MSD 7 and 8 Series ignitions.Brand: MSD Ignition
Manufacturer's Part Number: 8201
Part Type: Ignition Coils
Product Line: MSD Pro Power Coils
HP Direct Part Number: MSD-8201
UPC: 085132082018
Coil Style: Remote mount
Primary Resistance: 0.030 ohms
Coil Internal Construction: Ciba arathane
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 43,000 V
Turns Ratio: 100:1
Secondary Resistance: 2.40K ohms
Inductance: 1.00 mH
Peak Current: 800 mA
Spark Duration: 180 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 2.500 in.
Length (in.): 5.250 in.
Width (in.): 9.375 in.
Quantity: Sold individually.
Notes: For MSD 7AL, 8 and 10 Ignitions only. Not for use with MSD 6 or Digital-7-Series Ignitions.
Manufacturer's Part Number: 8201
Part Type: Ignition Coils
Product Line: MSD Pro Power Coils
HP Direct Part Number: MSD-8201
UPC: 085132082018
Coil Style: Remote mount
Primary Resistance: 0.030 ohms
Coil Internal Construction: Ciba arathane
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 43,000 V
Turns Ratio: 100:1
Secondary Resistance: 2.40K ohms
Inductance: 1.00 mH
Peak Current: 800 mA
Spark Duration: 180 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 2.500 in.
Length (in.): 5.250 in.
Width (in.): 9.375 in.
Quantity: Sold individually.
Notes: For MSD 7AL, 8 and 10 Ignitions only. Not for use with MSD 6 or Digital-7-Series Ignitions.
