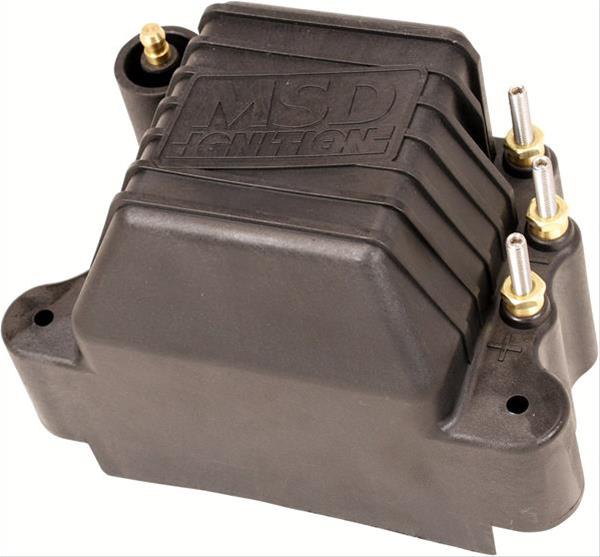

MSD Pro Mag 44 Ignition Coils 81423

MSD Pro Mag 44 ignition coils are a key part of MSD's Mag 44 ignition system for pro-level drag cars. There's more than a pound of high-quality copper wire wound around the molded DuPont Rynite core in every one, which allows them to handle the 44 amps of output from the system's companion magneto. These coils deliver 50,000 V of long-duration spark to the plugs to ensure that the nitro is ignited. For maximum vibration protection and reliability, the windings and all internals are completely wrapped in rugged epoxy. They're not for use with the Pro Mag 12.Brand: MSD Ignition
Manufacturer's Part Number: 81423
Part Type: Ignition Coils
Product Line: MSD Pro Mag 44 Ignition Coils
HP Direct Part Number: MSD-81423
UPC: 085132814237
Coil Style: Magneto
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 45,000 V
Peak Current: 44 amps
Spark Duration: 26 degrees
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 5.400 in.
Length (in.): 5.500 in.
Width (in.): 4.900 in.
Quantity: Sold individually.
