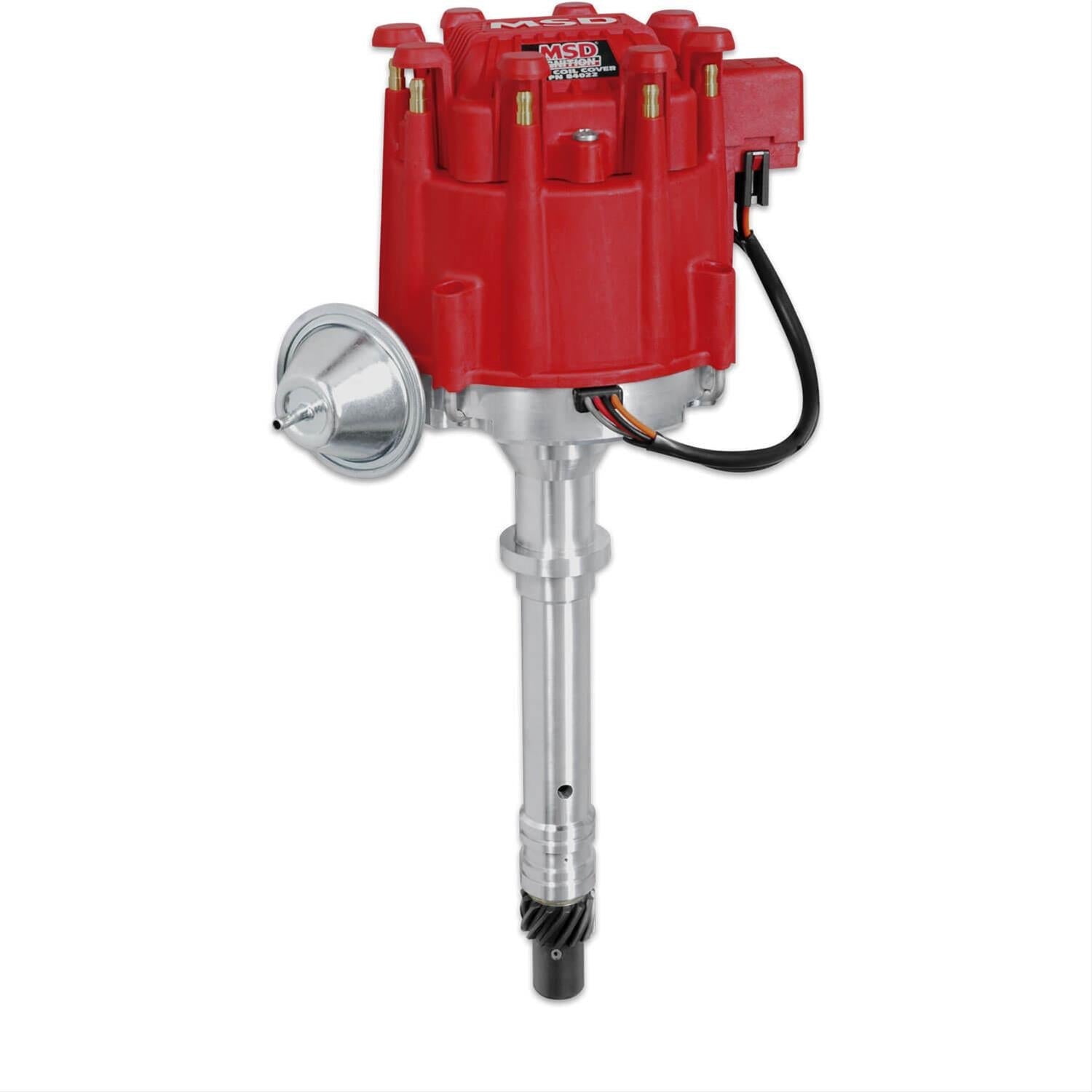

MSD Pro-Billet HEI Distributors 8365

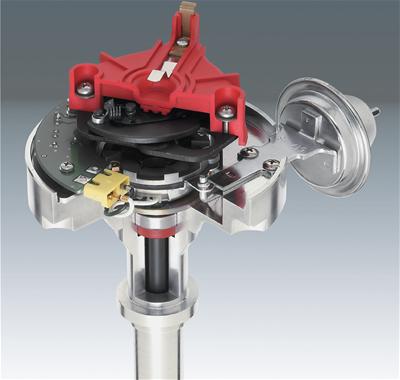

The MSD Pro-Billet HEI distributors pick up where the originals left off. Drawing on years of high-performance ignition experience, MSD engineers created a unique ignition module and internal coil that are capable of running above 9,000 rpm. Stock and other aftermarket modules lose spark energy at about 4,500 rpm. These modules produce 50 percent more current than stock units, and deliver a much more precise timing signal as well as more dwell control. The coil delivers over 100 millijoules of energy across the plug gap. For strength and high rpm stability, the QPQ-treated oversized shaft is guided by a sealed ball bearing on top and long sintered bushing at the bottom. The QPQ coating provides a low-friction coating on the shaft and also makes it highly resistant to corrosion. TIG welded to the top of the shaft is an adjustable mechanical advance assembly. The distributors are supplied with extra springs and stop bushings, so you can tailor an ignition curve to match your driving needs. The advance assembly features chromoly weights that slide on nylon pads for smooth timing advancement through the entire rpm range. There is also a vacuum advance canister to improve economy while cruising. All of these features are enclosed in a great looking, billet aluminum housing that is CNC-machined for accuracy and incredible strength. The distributors come complete and ready to drop in with a high-quality rotor and cap with brass terminals for great spark transfer. Simply connect a 12 V source to the distributor and you're up and running. They're designed to replace GM HEI distributors that use a 4-pin ignition module.Brand: MSD Ignition
Manufacturer's Part Number: 8365
Part Type: Distributors
Product Line: MSD Pro-Billet HEI Distributors
HP Direct Part Number: MSD-8365
UPC: 085132083657
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: HEI in-cap coil
Ignition Coil Included: Yes
Ignition Module Included: Yes
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Vacuum and mechanical
Ignition Box Required: No
Mechanical Tach Drive: No
Slip Collar: No
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
Remanufactured: No
Quantity: Sold individually.

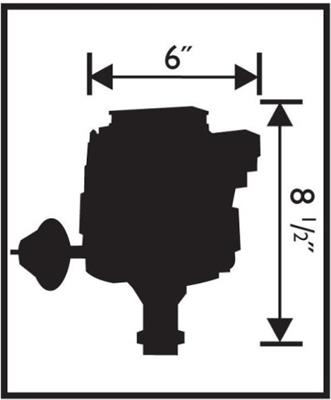

Notes: The distributor is designed to replace GM HEI distributors that use a 4-pin ignition module. Distributor is 8.21 in. tall from engine to top of distributor cap.
CARB EO Number(s): D-40-39
Emissions: California EO Approved
