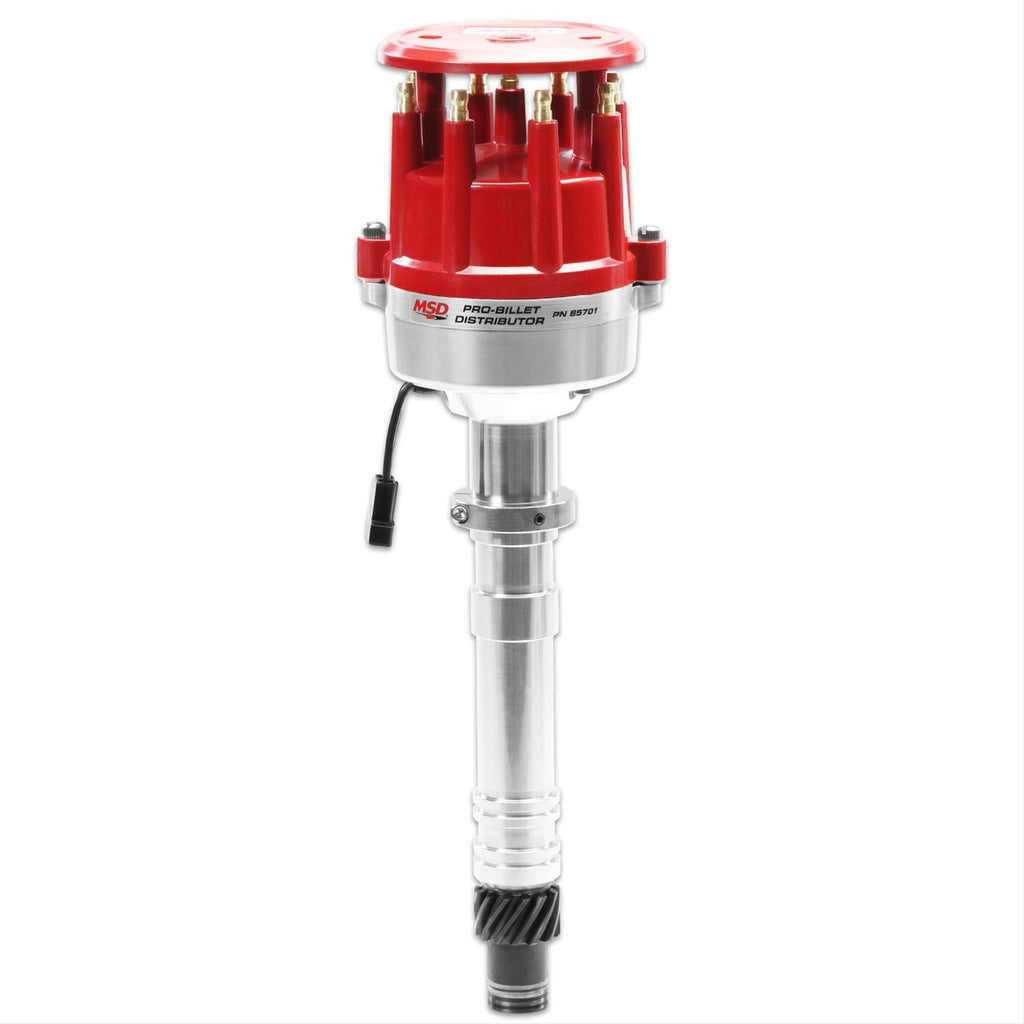

MSD Pro-Billet Distributors 85701

MSD Pro-Billet distributors share the same CNC machining techniques as the rest of the MSD distributor line. They feature a housing that's machined from high-quality 6061-T6 aluminum for durability and show-quality looks. Their oversized shaft receives a QPQ coating for friction reduction and corrosion resistance, with the added strength of two sealed ball bearings that guide the shaft accurately at well over 10,000 rpm. An extra-long sintered bushing replaces the ball bearing at the bottom of Chevrolet models. TIG-welded on top of the polished steel shaft is MSD's accurate mechanical advance assembly. The weights are supported by nylon pads that allow the advance to operate smoothly throughout the rpm range.

For all-out racing, the advance mechanism can also be easily locked out. To accurately trigger the ignition, a high-output magnetic pickup is bolted to the base. This pickup produces a precise trigger signal that will never vary more than one degree at any rpm. A durable gear is installed for performance applications, and an MSD red cap with brass terminals and race rotor is supplied. They're available in standard and small diameter models for applications with limited clearance, and require the use of a separate ignition box such as an MSD 6, 7, 8, or 10 Series ignition.
Brand: MSD Ignition
Manufacturer's Part Number: 85701
Part Type: Distributors
Product Line: MSD Pro-Billet Distributors
HP Direct Part Number: MSD-85701
UPC: 085132857012
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Small cap
Ignition Coil Included: No
Ignition Module Included: No
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Mechanical
Ignition Box Required: Yes
Mechanical Tach Drive: No
Slip Collar: Yes
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Distributor Cap Color: Red
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
Remanufactured: No
Quantity: Sold individually.
Notes: Small base diameter for extra clearance. Measures 1/2 in. smaller in diameter and over 1.0 in. shorter than standard distributors. Distributor is 5.625 - 6.375 in. tall from engine to top of distributor cap.
