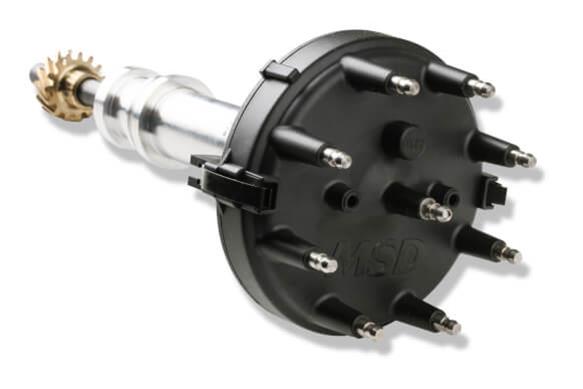

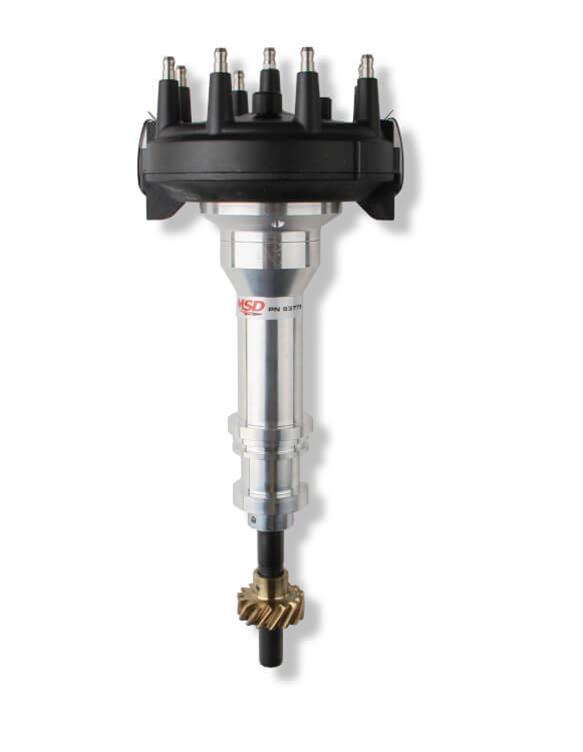

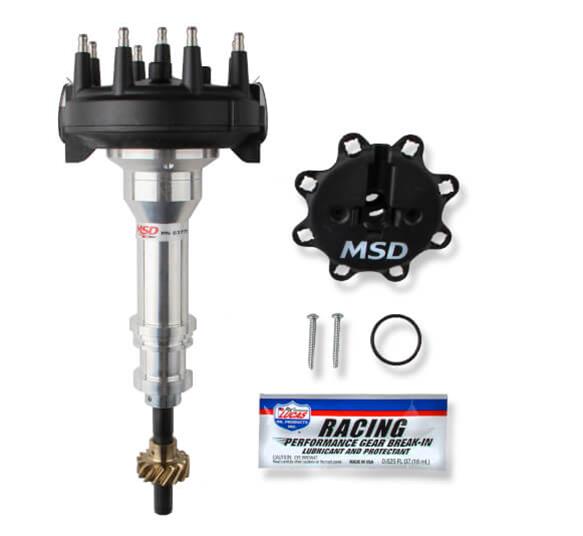

MSD Pro-Billet Crank Trigger Distributors 83775

MSD Pro-Billet crank distributors are built specifically for racing engines with almost no room for a distributor, due to tunnel rams or blowers. These units are equipped with a special low-profile crab-style distributor cap, allowing them to fit into extremely tight areas. The housing features two optional O-rings at the bottom that improves oil control by preventing oil pressure loss. Also, a small oil bleed hole (located in the base) sprays oil on the distributor and camshaft gears to prevent excessive wear.

Since these are racing distributors, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning the Pro-Billet crank distributor is MSD's own crab cap. This incorporates spark plug-style terminals for a better connection and grip to the plug wires. Order the model recommended for your vehicle and engine application.
Brand: MSD Ignition
Manufacturer's Part Number: 83775
Part Type: Distributors
Product Line: MSD Pro-Billet Crank Trigger Distributors
HP Direct Part Number: MSD-83775
UPC: 085132837755
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Large cap
Ignition Coil Included: No
Ignition Module Included: Yes
Computer-Controlled Compatible: No
Trigger Style: Crank trigger
Advance Type: Locked
Ignition Box Required: No
Mechanical Tach Drive: No
Slip Collar: No
Distributor Gear Material: Bronze
Distributor Gear Rotation: Standard
Distributor Cap Color: Black
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
Remanufactured: No
Quantity: Sold individually.
