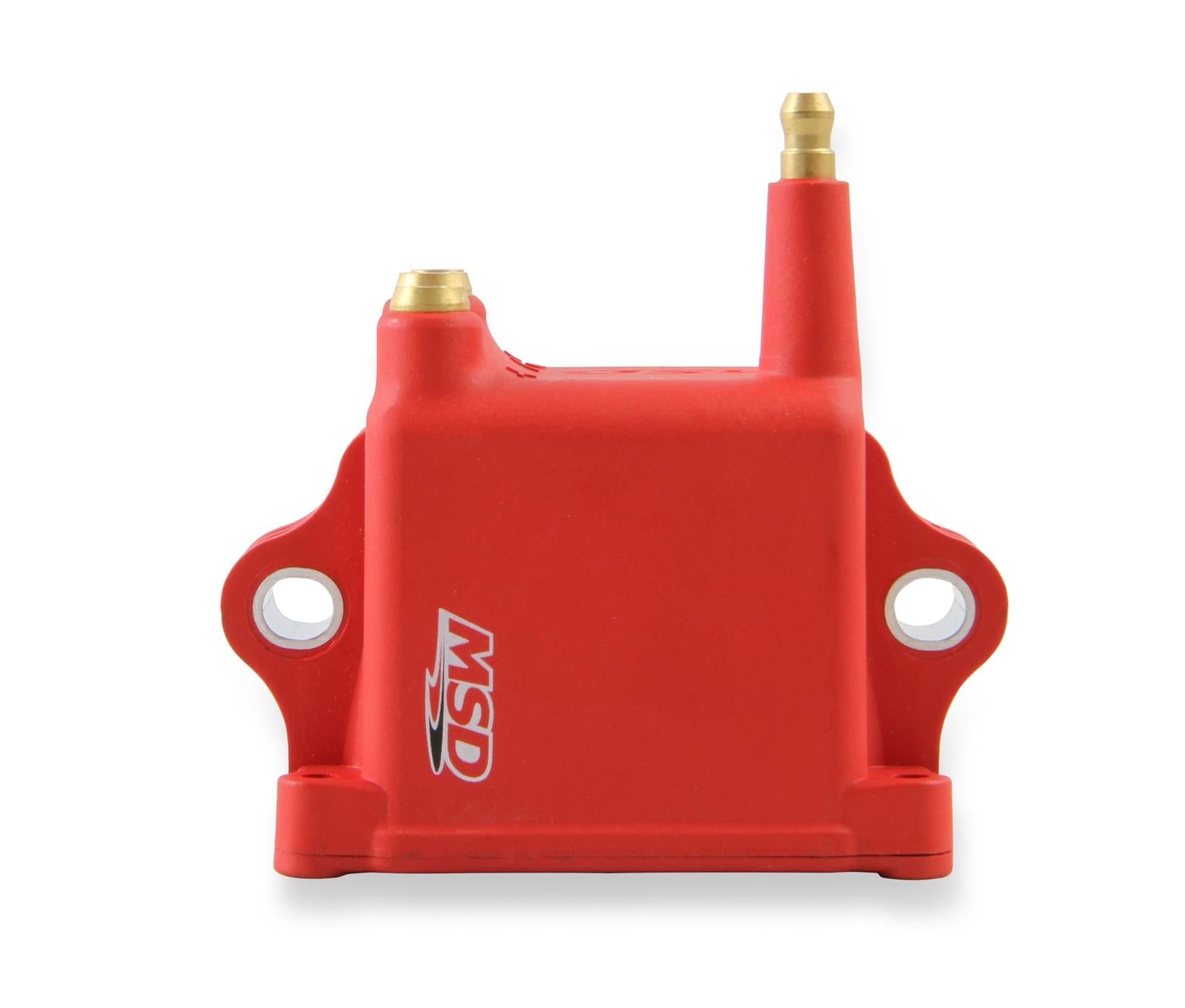

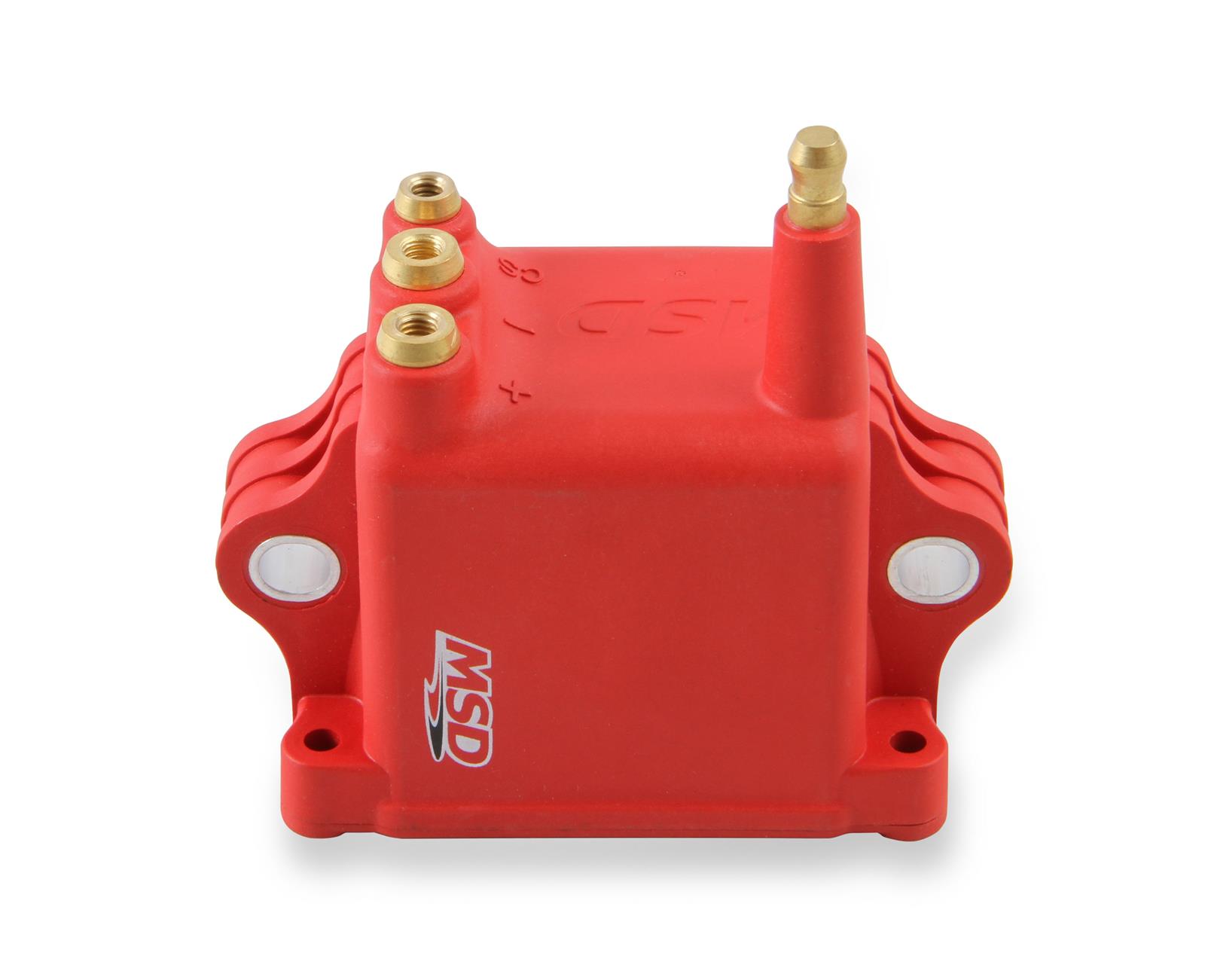

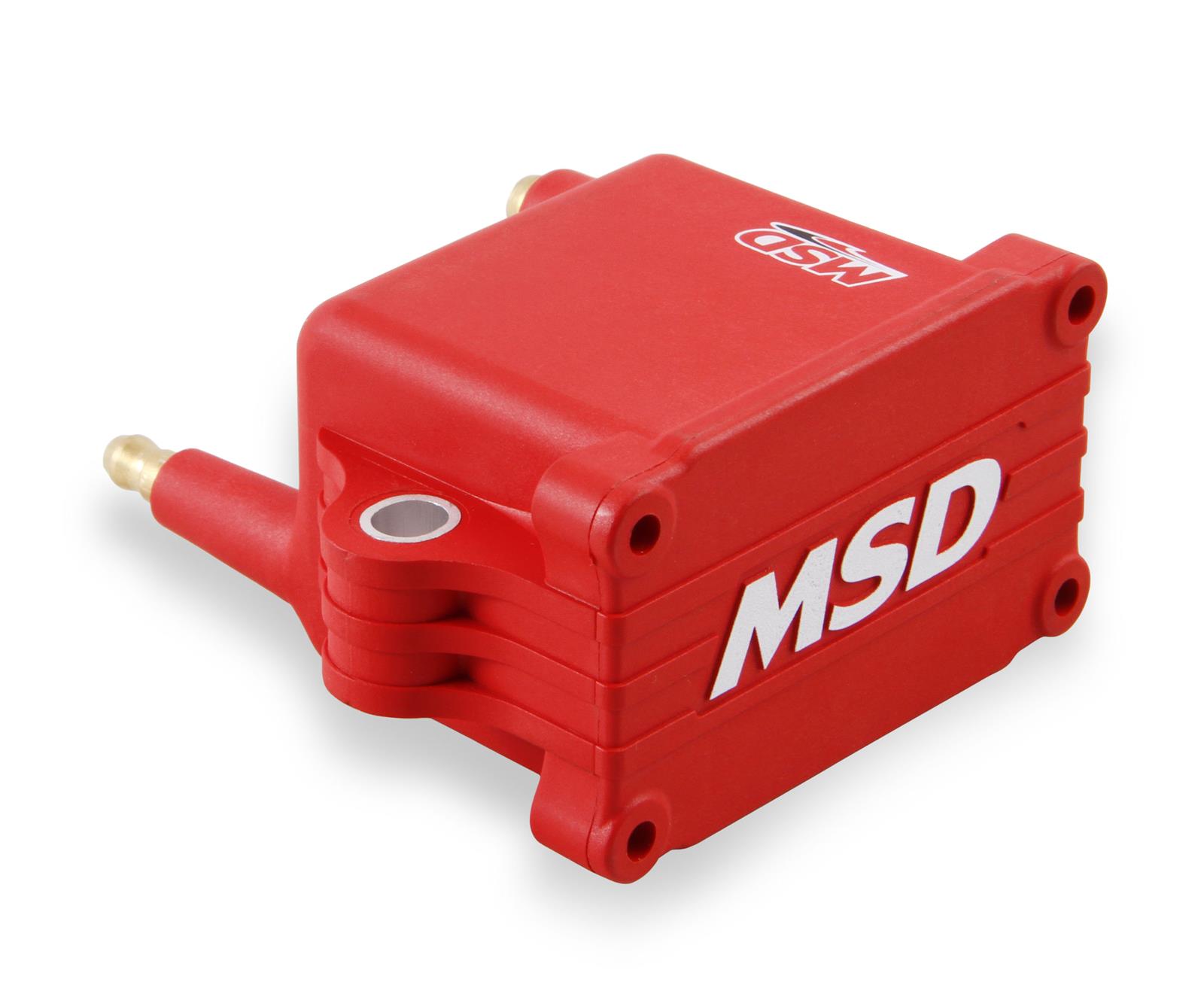

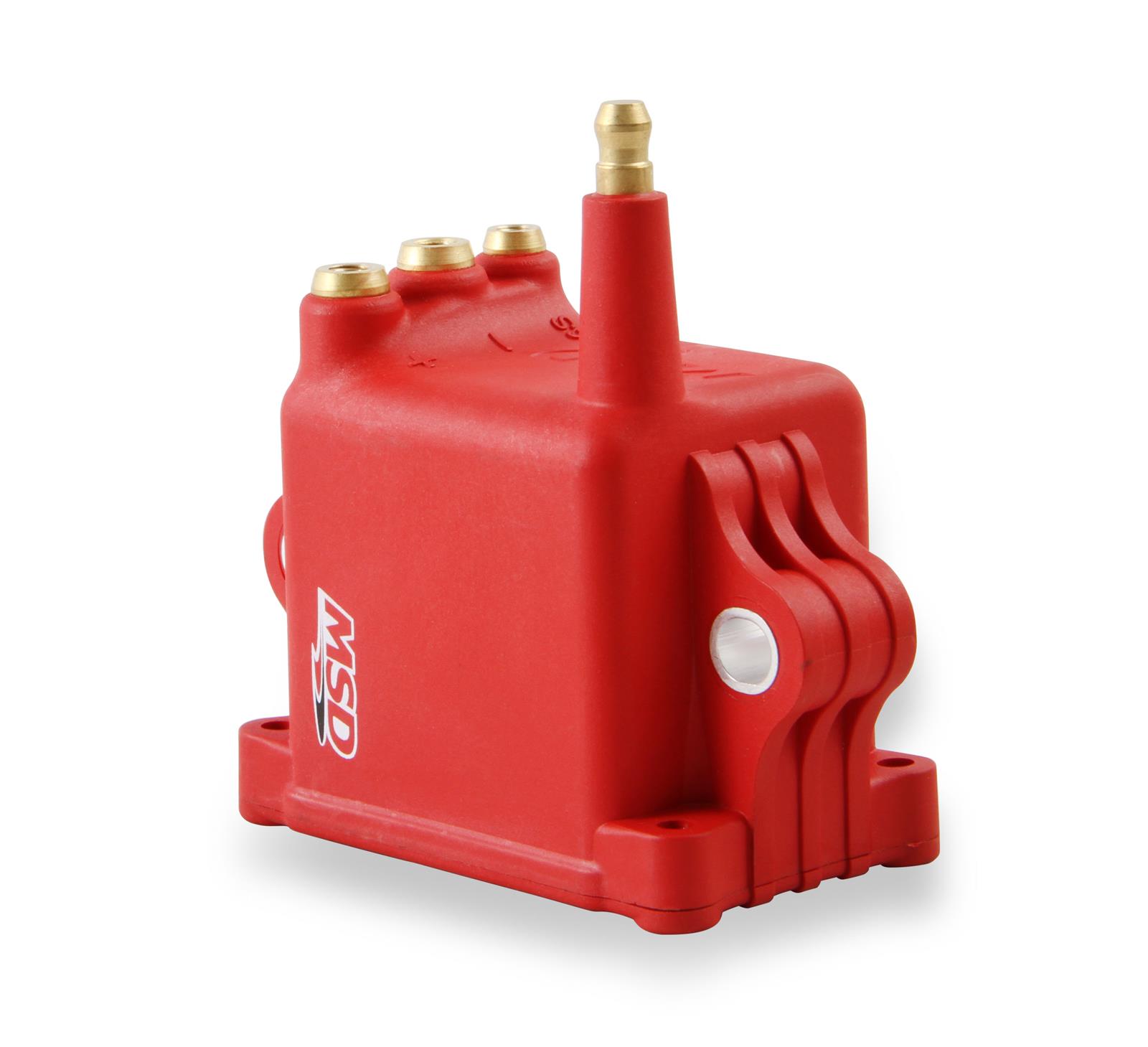

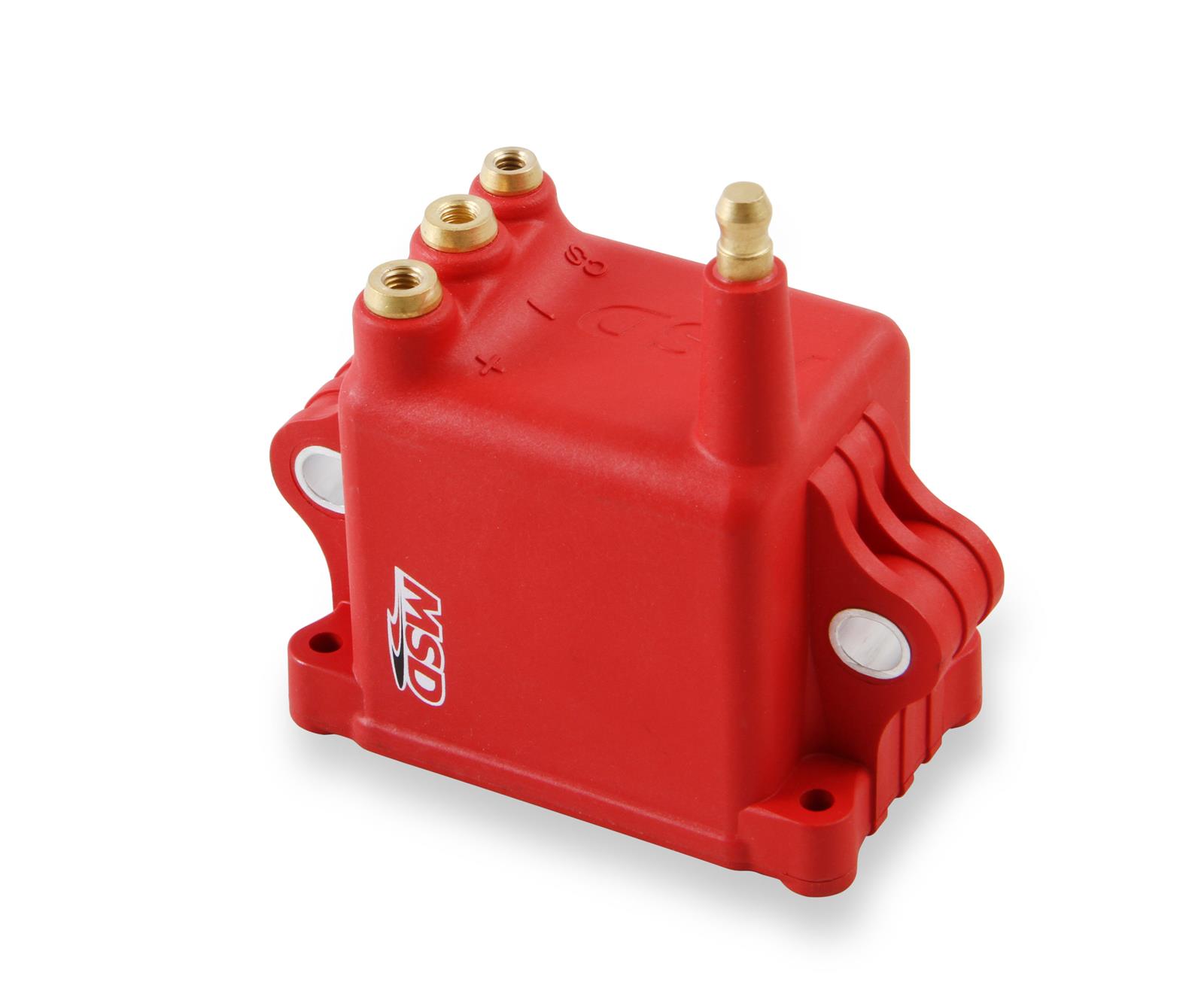

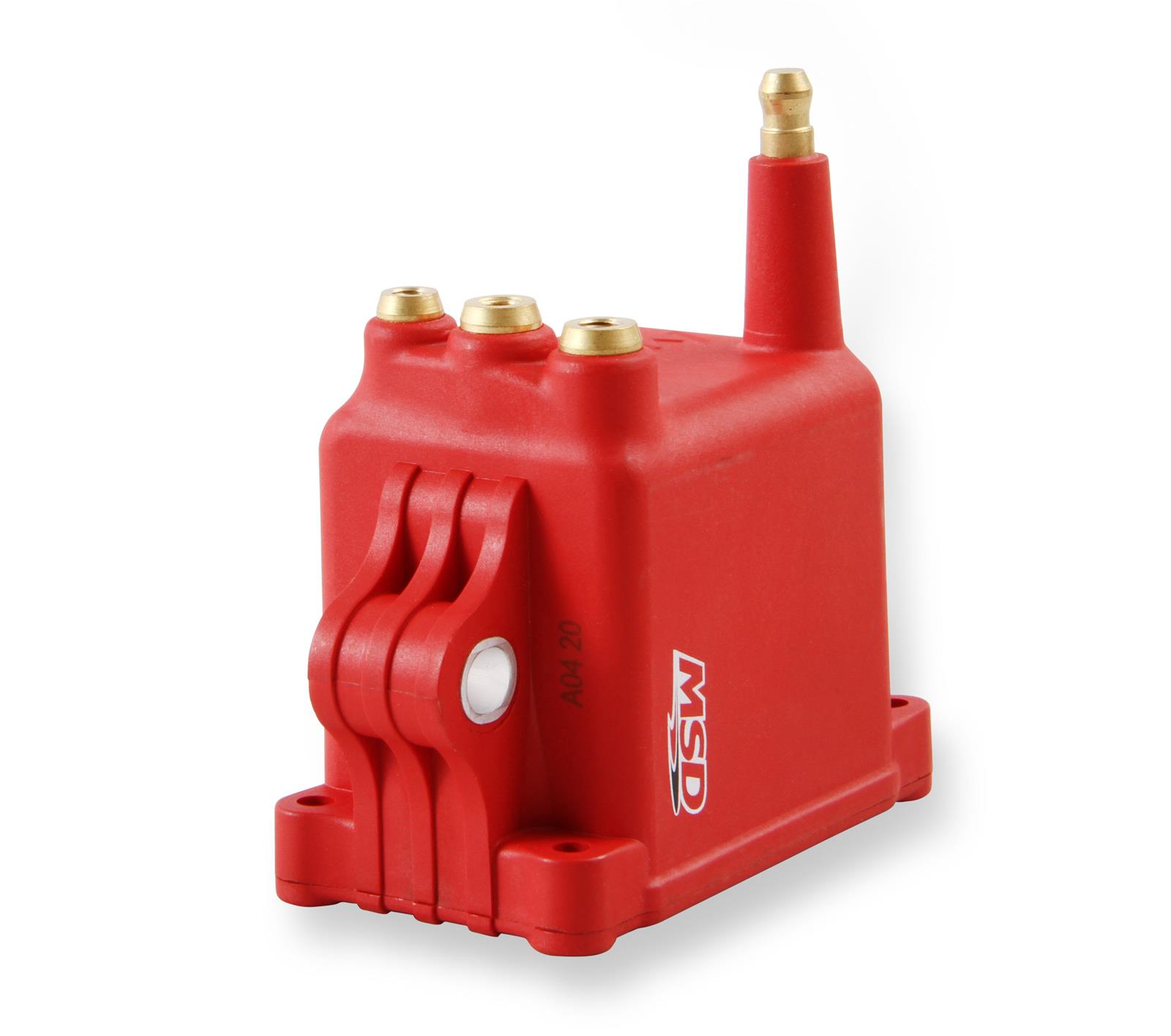

MSD Pro 600 CDI Ignition High-Output Coils 8280

MSD Pro 600 CDI ignition high-output coils developed these powerful coils to provide unrivaled spark energy and dependability. The best choice to equip your Pro 600 CDI, they have the highest current and voltage available in a small compact design, creating over 200 millijoules of spark energy and leaving no horsepower untapped. Along with the unrivaled output of your Pro 600 CDI, MSD high-output coils, everything from Pro-mod's to pulling trucks can perform at a whole new level!

Features and benefits:

* Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition
* Capable of up to 50,000 V to ignite extreme cylinder pressures
* Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, and E85, as well as forced induction and power adder combinations

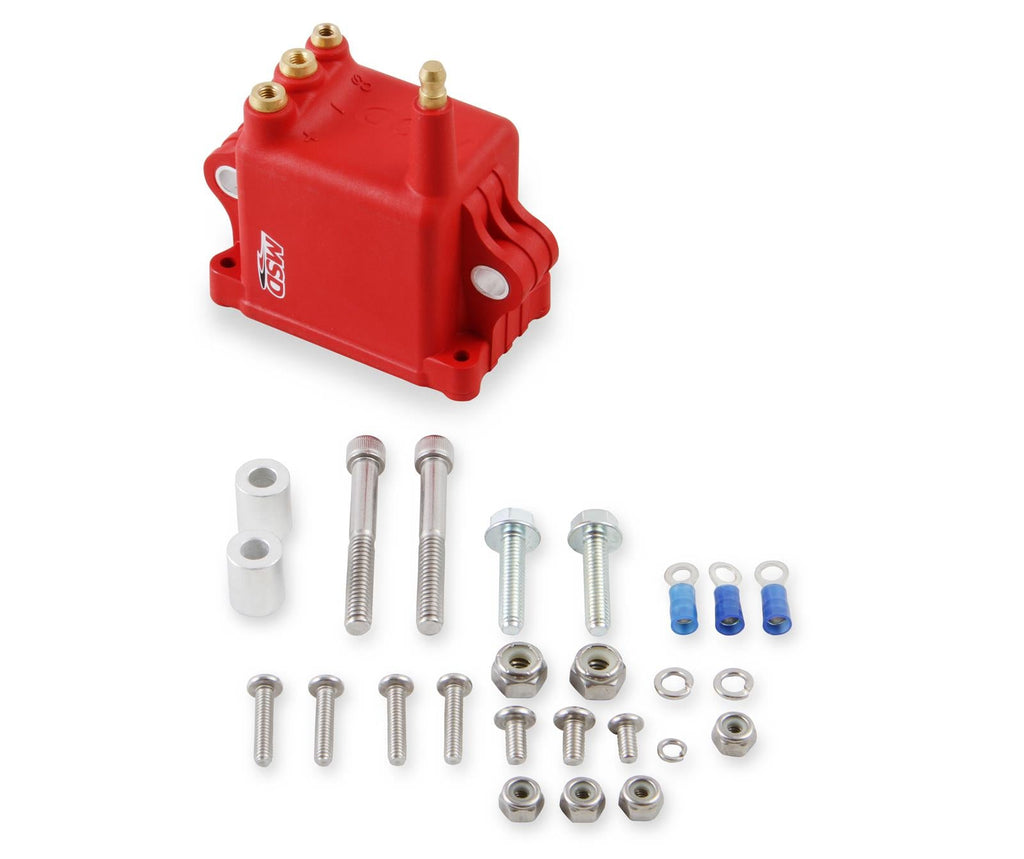

* Supplied with hardware to mount horizontal or vertical position
* Coils are designed to be mounted on Holley's LS valve covers, or OE LS passenger car coil brackets using 72mm bolt spacing

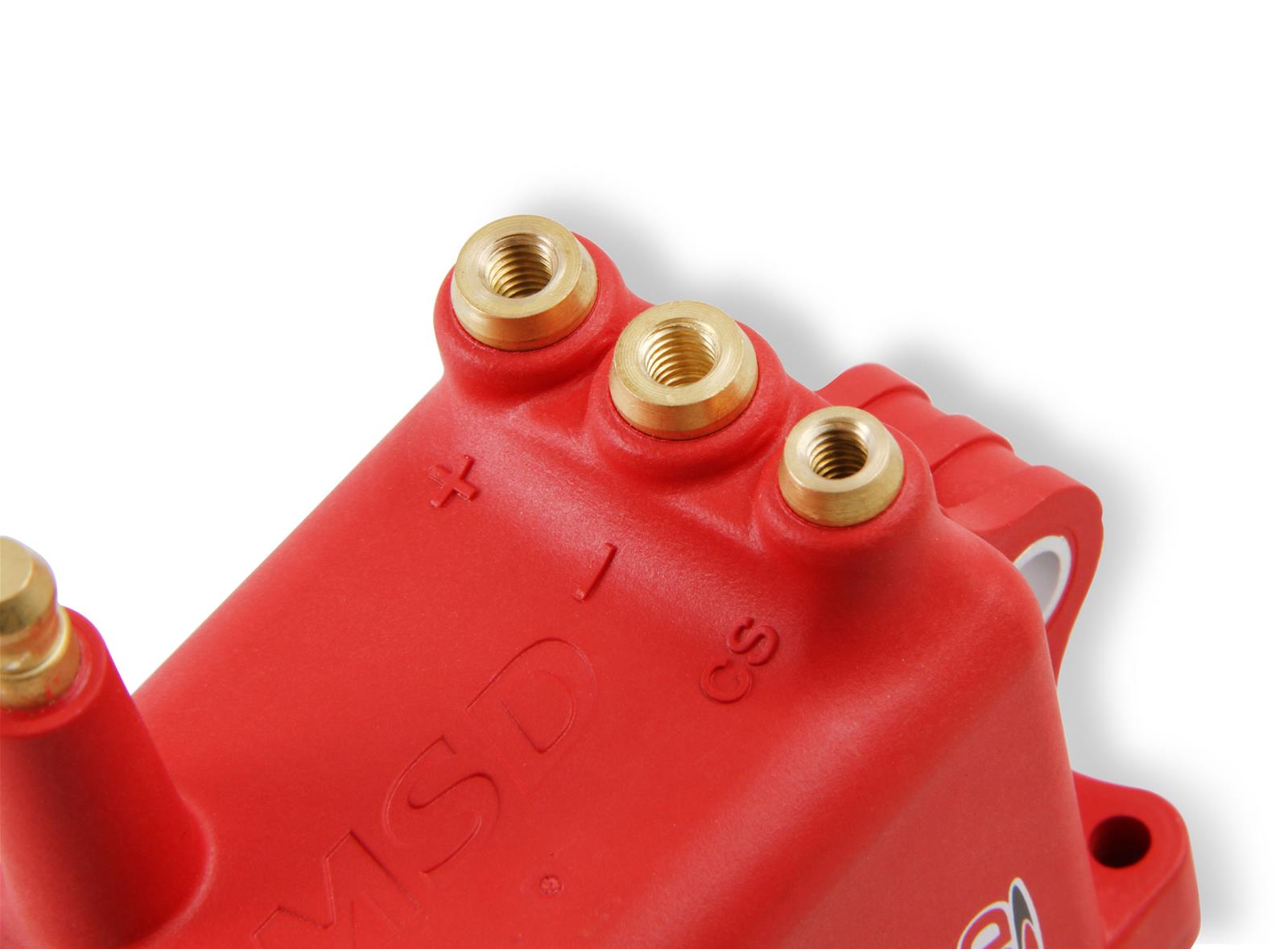

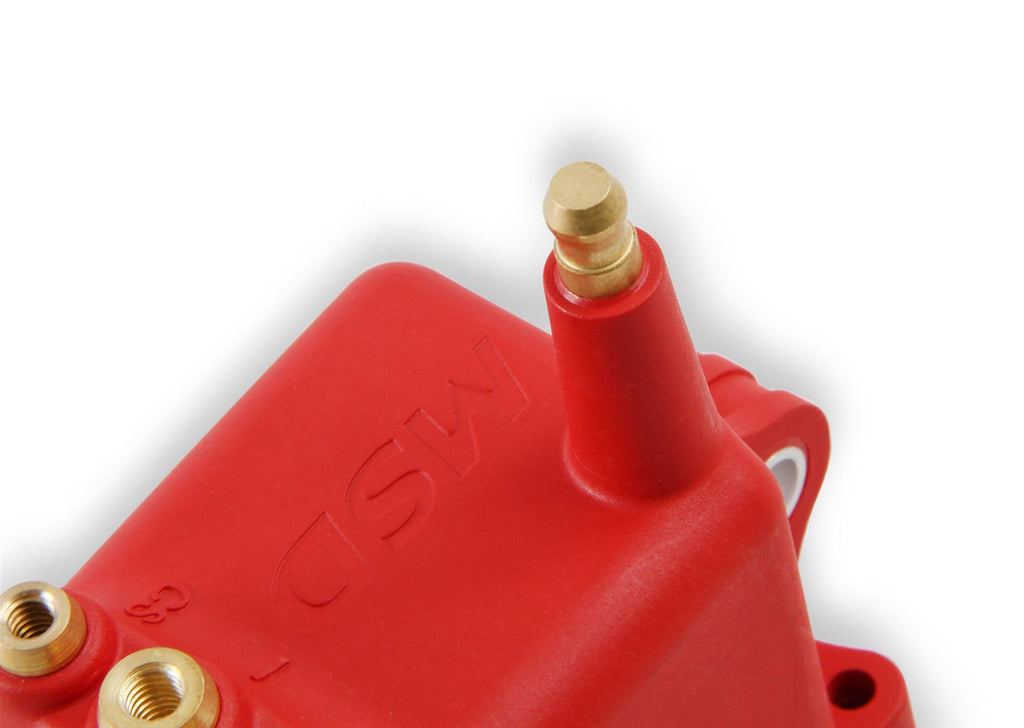

* HEI-style secondary tower for secure coil wire connection
Brand: MSD Ignition
Manufacturer's Part Number: 8280
Part Type: Ignition Coils
Product Line: MSD Pro 600 CDI Ignition High-Output Coils
HP Direct Part Number: MSD-8280
UPC: 090127080825
Coil Style: Coil pack
Primary Resistance: 0.064 ohms
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 50,000 V
Turns Ratio: 56:1
Secondary Resistance: 466 ohms
Inductance: 500 mH
Peak Current: 1,700 mA
Spark Duration: 345 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular
Quantity: Sold individually.
Notes: Designed for extreme racing for use with the Pro 600 capacitive discharge ignition, MSD-8000.
