Description
MSD Pro 600 CDI ignition boxes are 8-channel capacitive discharge ignitions designed for high cylinder pressure, high-horsepower engines running coil-near-plug ignition. When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you're leaving horsepower on the table. To answer this need, the ignition experts at MSD developed the PRO 600 CDI to provide unrivaled spark energy and dependability. Pro Mod to Pro Street, or yanking a sled in the dirt with a pulling truck, if you need to light 8 coils without fail, MSD PRO 600 boxes are the answer.
Features include:
* Eight outputs of up to 680 mJ of energy

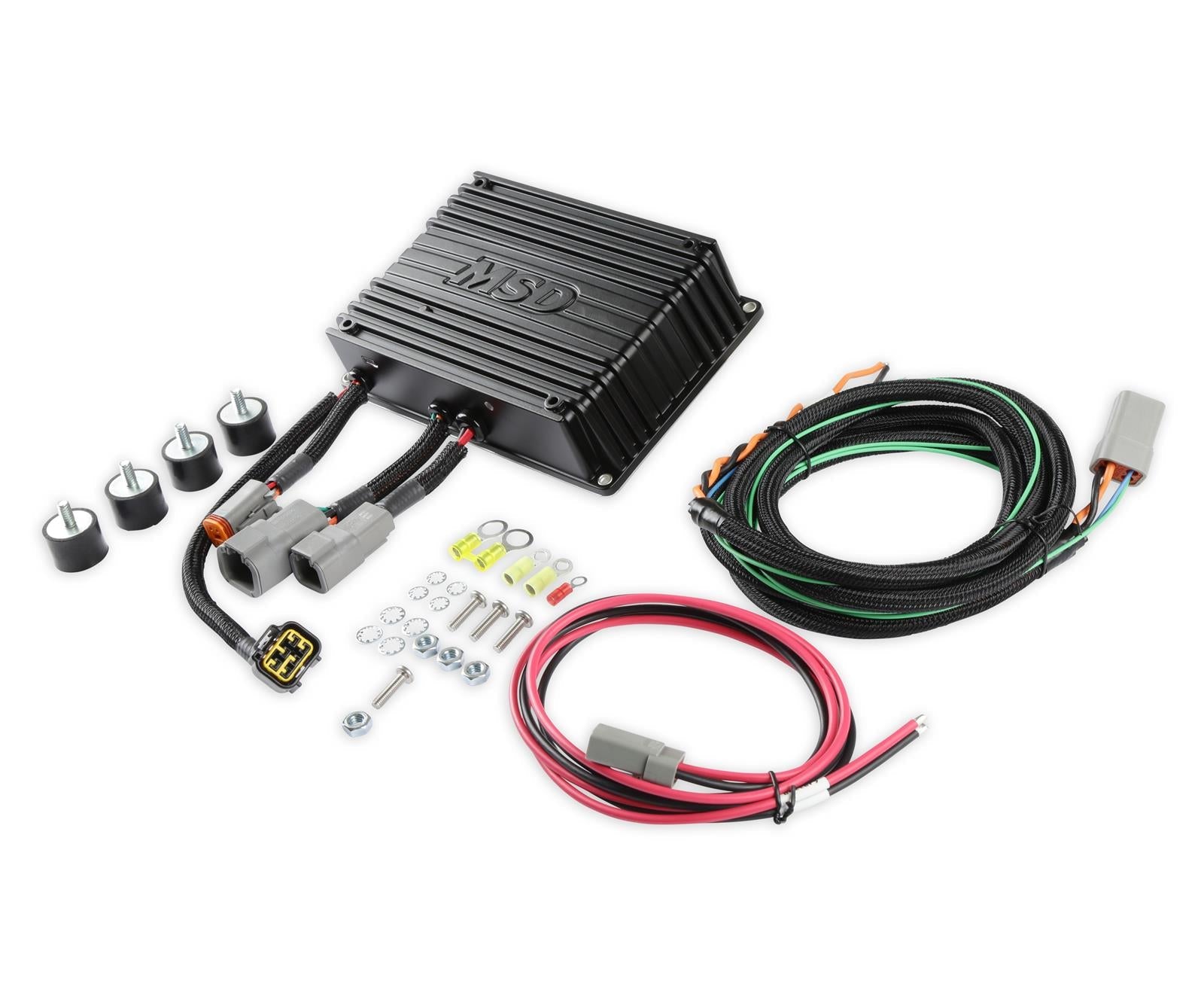

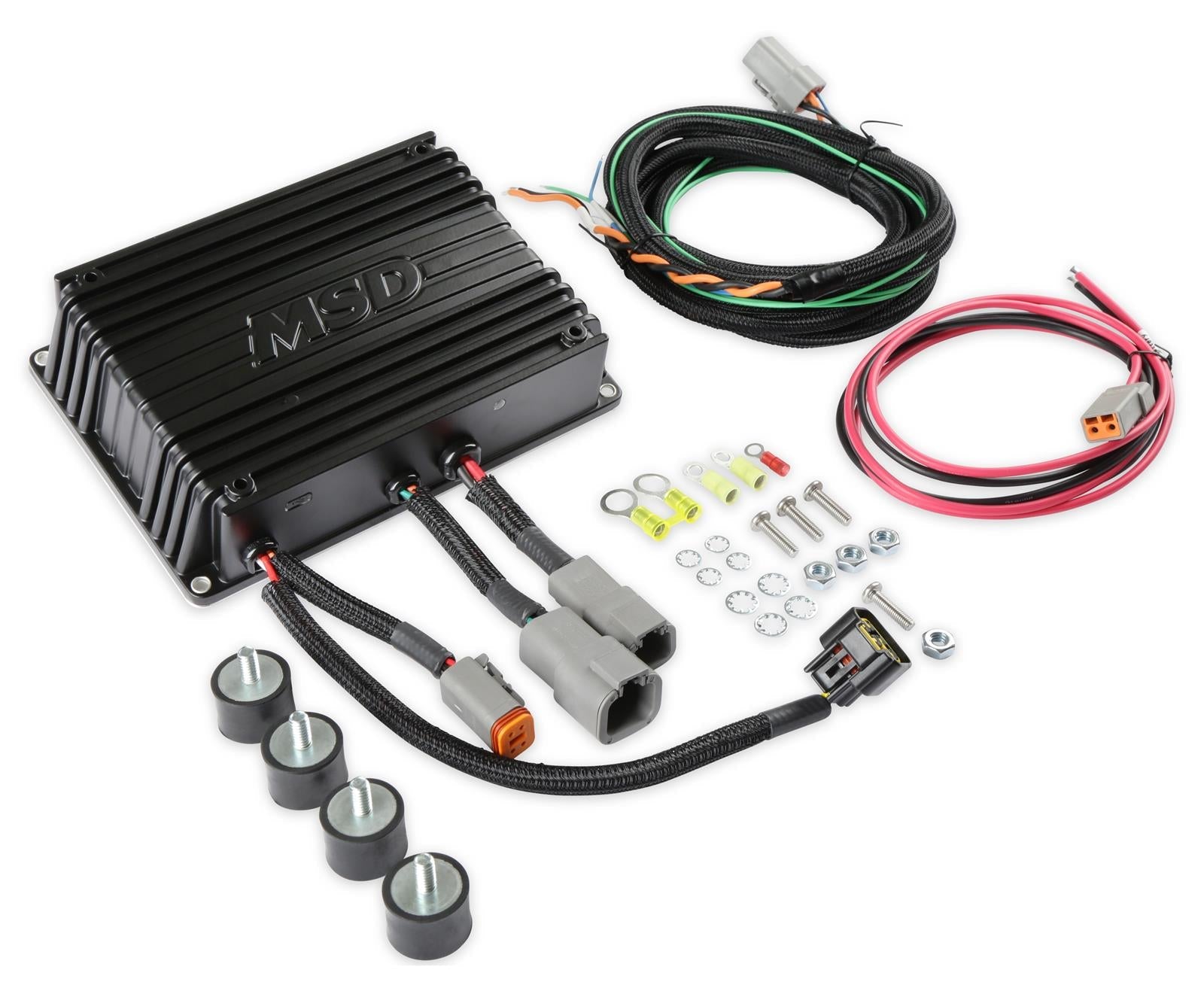

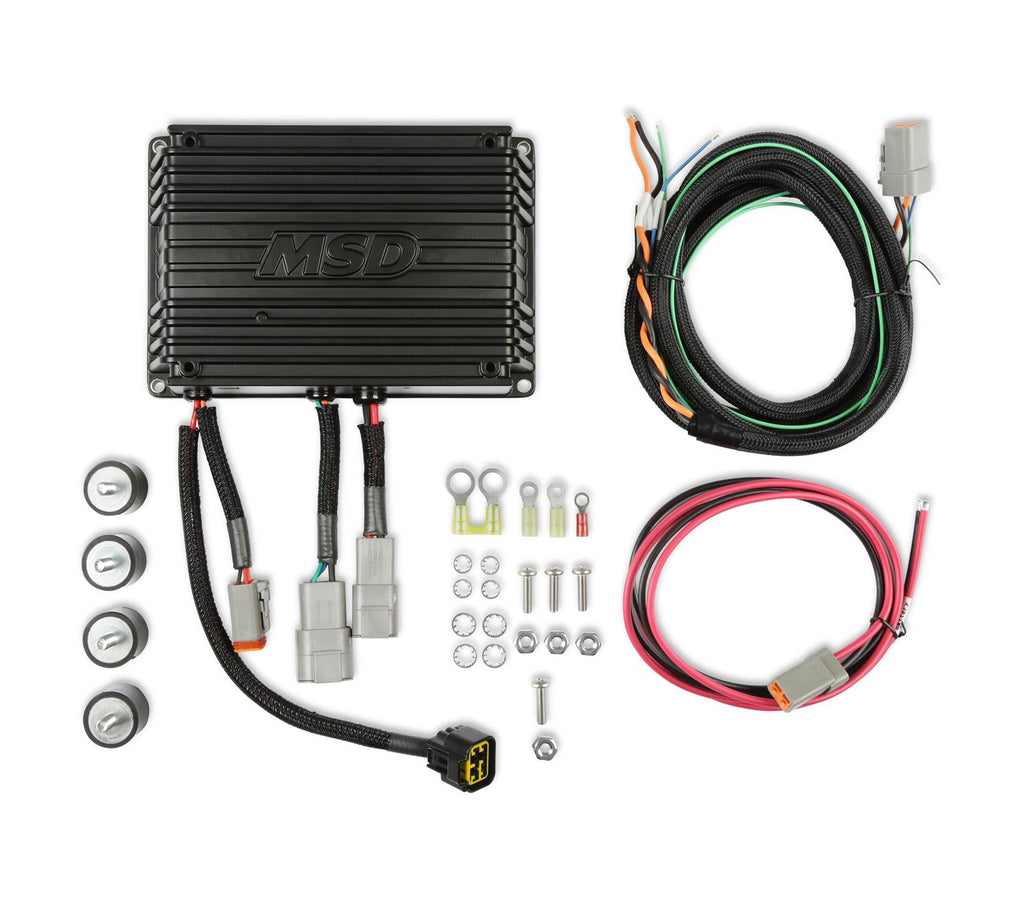

* All necessary wiring harnesses included
* Continuous 600 mJ operation, without risk of failure from overheating
* High-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging system
* Over 50 kilovolts output voltage when used with MSD suggested coils
* Spark duration of greater than 300 microseconds
* 6 volts minimum required for starting and running
* 12 volts minimum required for 600 mJ opereation
* Maximum operating voltage 22 V
* Direct plug-in to Holley EFI systems
* Compatible with most EFI systems, including 5 V or 12 V drivers
* Plug-in interface with MSD Power-Grid, Davis Profiler, and OEM LS-style coil harness
* Reverse battery protection
* Protection against shorted or open coils, and over temperature
* Diagnostic LEDs help troubleshoot issues should they arise
* On-the-fly power output selection wire, selectable between low power and high power operation
* Fits most coil-per-plug engines up to eight cylinders (including 4- and 6-cylinders)
* Additional CAN based features, when used with Holley EFI
* Approved for NHRA Pro Mod Class
Brand: MSD Ignition
Manufacturer's Part Number: 8001
Part Type: Ignition Boxes
Product Line: MSD Pro 600 CDI Ignition Boxes
HP Direct Part Number: MSD-8001
UPC: 090127130674
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: No
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 330-550 V
Current Draw: 3.00 amps per 1,000 rpm
Spark Output (millijoules): 250-680 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 28 V
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: Must be used with MSD Power Grid Controller part number 7730. Requires the use of HVC-III Coils with this ignition, part number 82612 or 826123, for current sensing data.
Features include:
* Eight outputs of up to 680 mJ of energy
* All necessary wiring harnesses included
* Continuous 600 mJ operation, without risk of failure from overheating
* High-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging system
* Over 50 kilovolts output voltage when used with MSD suggested coils
* Spark duration of greater than 300 microseconds
* 6 volts minimum required for starting and running
* 12 volts minimum required for 600 mJ opereation
* Maximum operating voltage 22 V
* Direct plug-in to Holley EFI systems
* Compatible with most EFI systems, including 5 V or 12 V drivers
* Plug-in interface with MSD Power-Grid, Davis Profiler, and OEM LS-style coil harness
* Reverse battery protection
* Protection against shorted or open coils, and over temperature
* Diagnostic LEDs help troubleshoot issues should they arise
* On-the-fly power output selection wire, selectable between low power and high power operation
* Fits most coil-per-plug engines up to eight cylinders (including 4- and 6-cylinders)
* Additional CAN based features, when used with Holley EFI
* Approved for NHRA Pro Mod Class
Brand: MSD Ignition
Manufacturer's Part Number: 8001
Part Type: Ignition Boxes
Product Line: MSD Pro 600 CDI Ignition Boxes
HP Direct Part Number: MSD-8001
UPC: 090127130674
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: No
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 330-550 V
Current Draw: 3.00 amps per 1,000 rpm
Spark Output (millijoules): 250-680 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 28 V
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: Must be used with MSD Power Grid Controller part number 7730. Requires the use of HVC-III Coils with this ignition, part number 82612 or 826123, for current sensing data.
