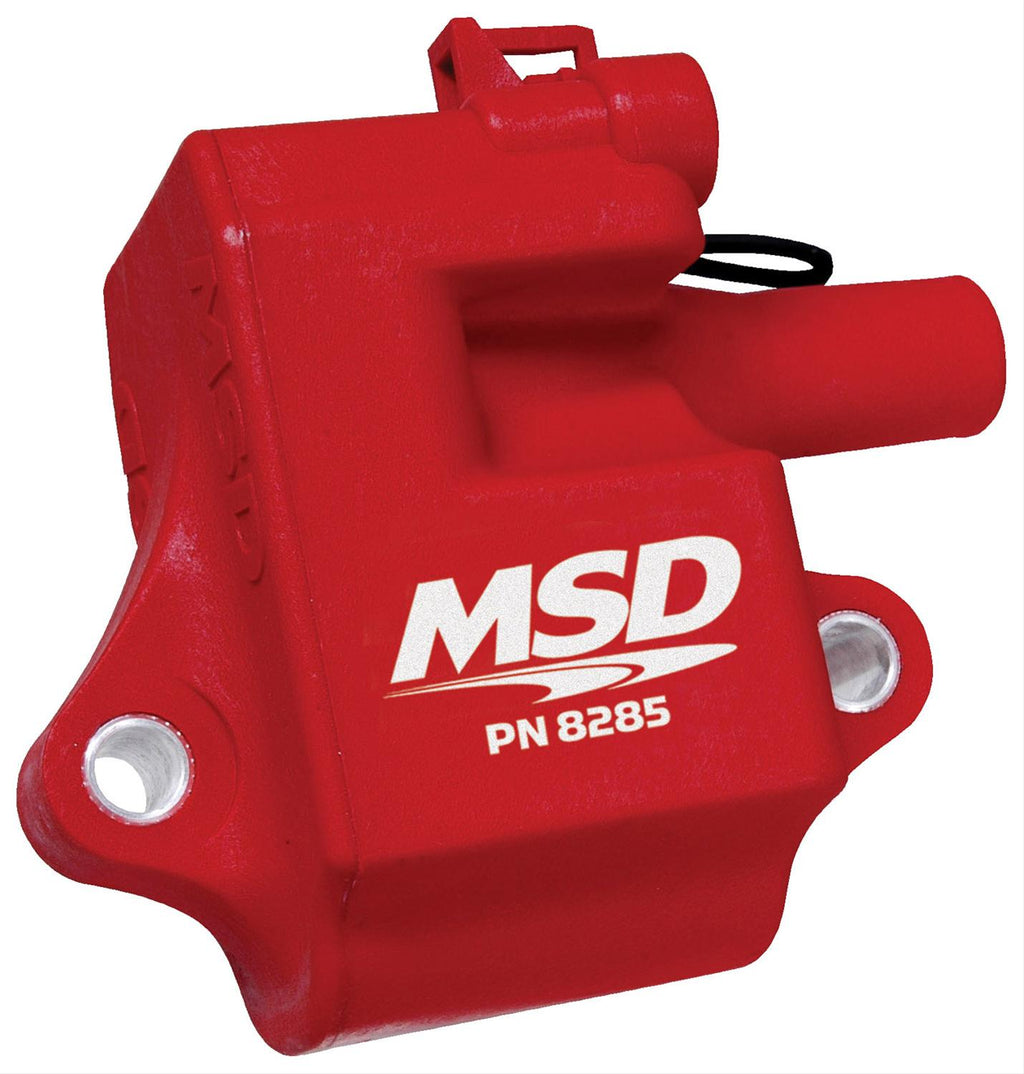

MSD Multiple Spark Coils and Coil Kits 8285

MSD Ignition's Multiple Spark Coils (MSC) will fit in place of the stock GM LS coils and connect directly to the factory connectors. Once installed, you'll have the power and performance of higher energy sparks, crowned with MSD's multiple spark discharge. Increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn. This results in improved throttle response, smooth idle and quick starts, plus increased high rpm performance!Brand: MSD Ignition
Manufacturer's Part Number: 8285
Part Type: Ignition Coils
Product Line: MSD Multiple Spark Coils and Coil Kits
HP Direct Part Number: MSD-8285
UPC: 085132082858
Coil Style: Coil pack
Primary Resistance: 0.730 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Red
Maximum Voltage: 40,000 V
Turns Ratio: 56:1
Secondary Resistance: 3.70K ohms
Inductance: 3.60 mH
Peak Current: 124 mA
Spark Duration: 1,110 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: Fits LS1/LS6 engine models with spark plug wire and coil connector entering the same side of the coil. Please see application notes regarding engine VIN and fitment. Click the "Charts & Guides" tab for help with coil identification. All specifications listed are measured at 14 V.
CARB EO Number(s): D-722-4
Emissions: California EO Approved
