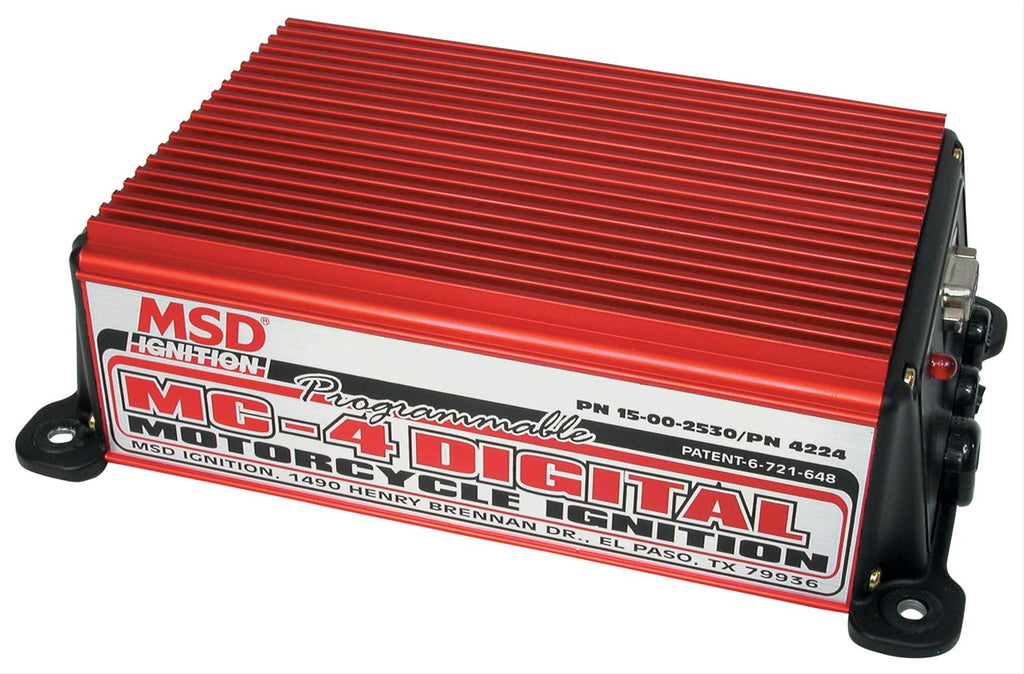

MSD MC-4 Programmable Ignition Controls 4224

MSD MC-4 programmable ignition controls for motorcycles combine multiple spark discharge and digital computer accuracy into one compact ignition system, giving you the best of both worlds. You'll be able to program the MC-4s at the track, on the dyno, or wherever, with or without a computer! The supplied Pro-Data plus software gives you just what you have been waiting for--the ability to program ignition timing curves to suit your engine's needs. These MC-4 ignition boxes are for use with single or dual spark plugs per cylinder, and are 1, 2, or 4-cylinder selectable.

Features include:

* Computer interface for easy programming
* 0-25 degree start retard
* Mapable run timing curve
* Launch ramp delay by time 0-2.5 seconds
* 3-step retards by rpm or switch
* 0-2.50 second step retard off delay for precise nitrous control
* Progressive timing retard by time for progressive NOS
* Launch timing curve to prevent tire slippage
* Individual cylinder timing when optional cam sync sensor is used
* Gear retard--retard a different amount for each gear
* Shift kill feature with programmable delays 20-99 milliseconds
* Shift kill modes for manual, auto 1, 2, and auto 1, 2, 3
* Optional boost retard curve when used with an external MAP sensor for turbo applications (2-45 psi)
* Built-in rpm-activated window switch--turn "on" any device up to 3 amps at any rpm, then back off at a different rpm
* Sequential shift light--turn on an optional shift light at a different rpm for each gear
* Sequential shifter turns any air shifter into a fully automatic shifter (3 amps max)
* Tach output wire for tachometers or data recorders
* Monitor mode for easy setup or 3-step switchesBrand: MSD Ignition
Manufacturer's Part Number: 4224
Part Type: Ignition Boxes
Product Line: MSD MC-4 Programmable Ignition Controls
HP Direct Part Number: MSD-4224
UPC: 085132042241
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: Three-stage
Data Acquisition: Yes
CD Voltage Output to Coil: 490-505 V
Current Draw: 8 amps at 10,000 rpm
Spark Output (millijoules): 190 mJ
Minimum Operating Voltage: 11 V
Maximum Operating Voltage: 18 V
Length (in.): 6.000 in.
Height (in.): 1.750 in.
Width (in.): 3.500 in.
Ignition Box Color: Red
Coil Included: No
Quantity: Sold individually.
