Description

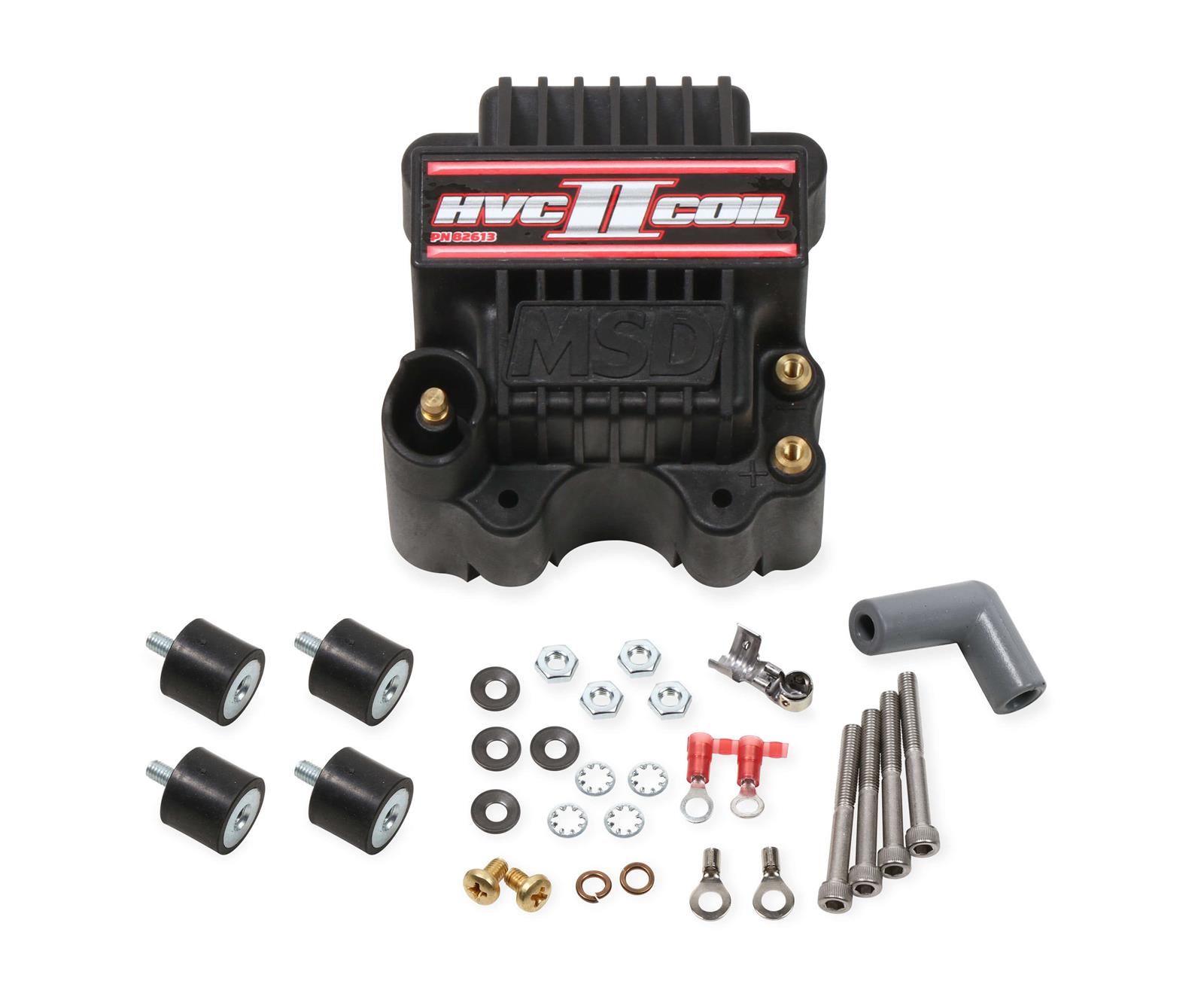

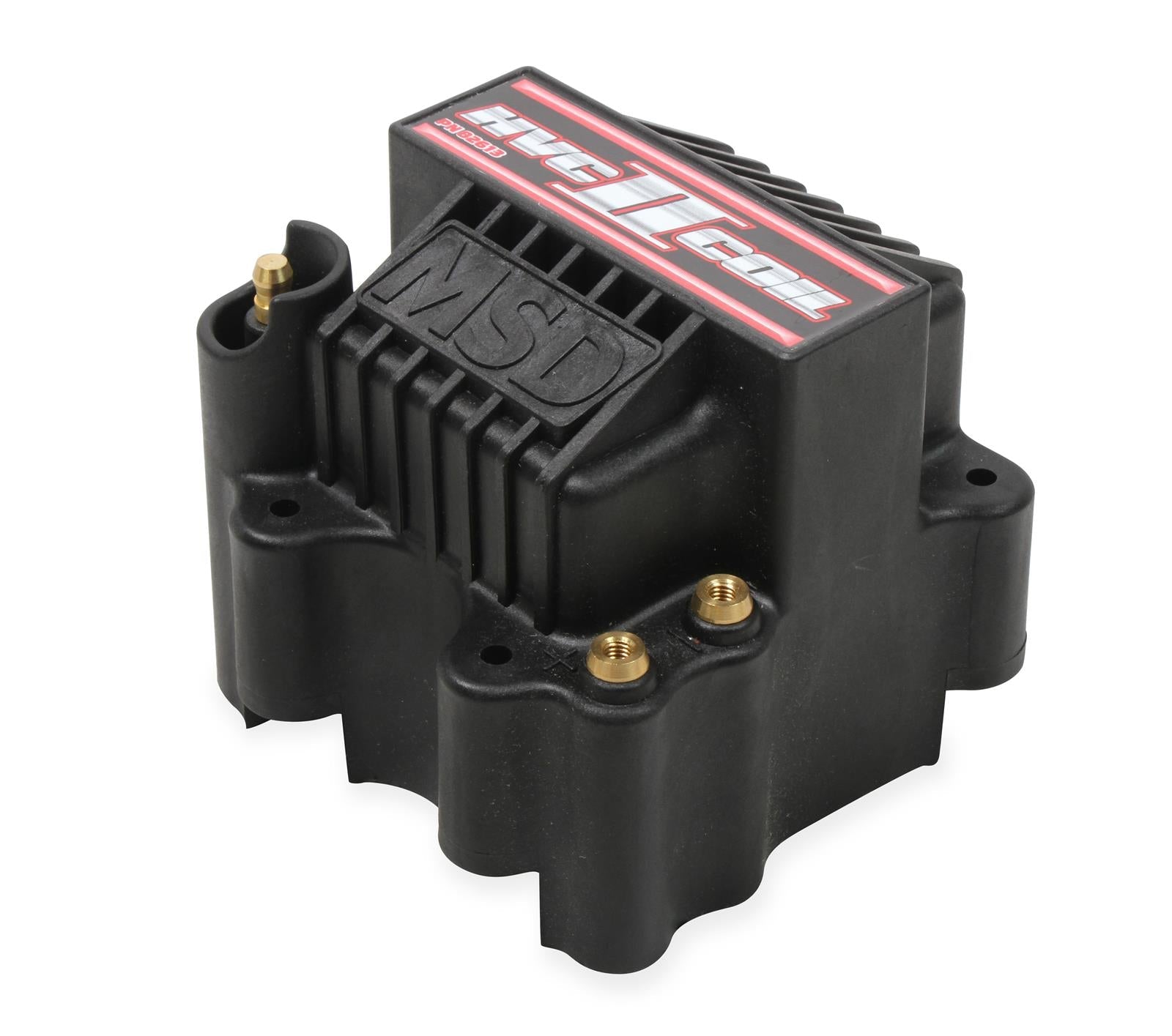

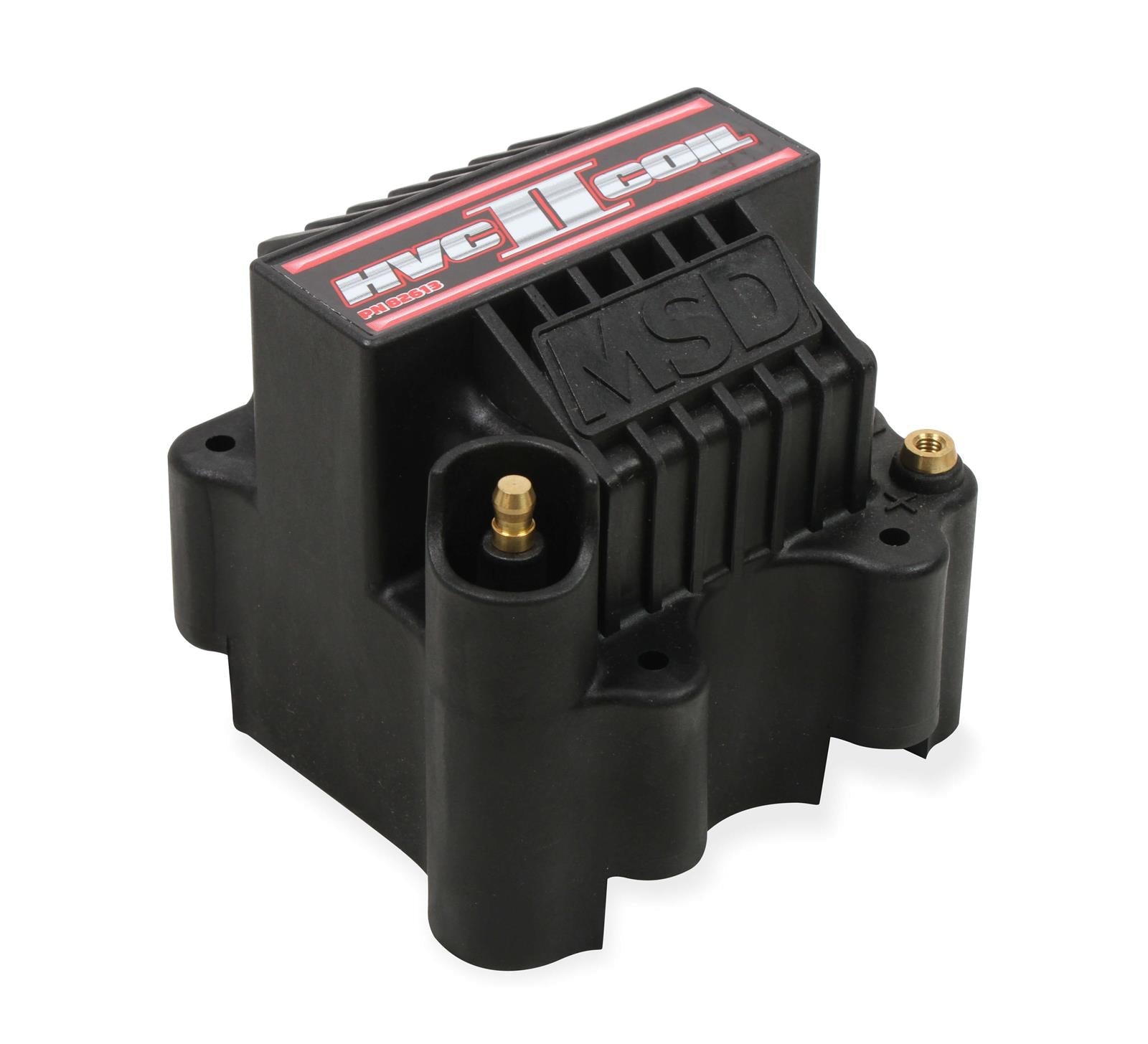

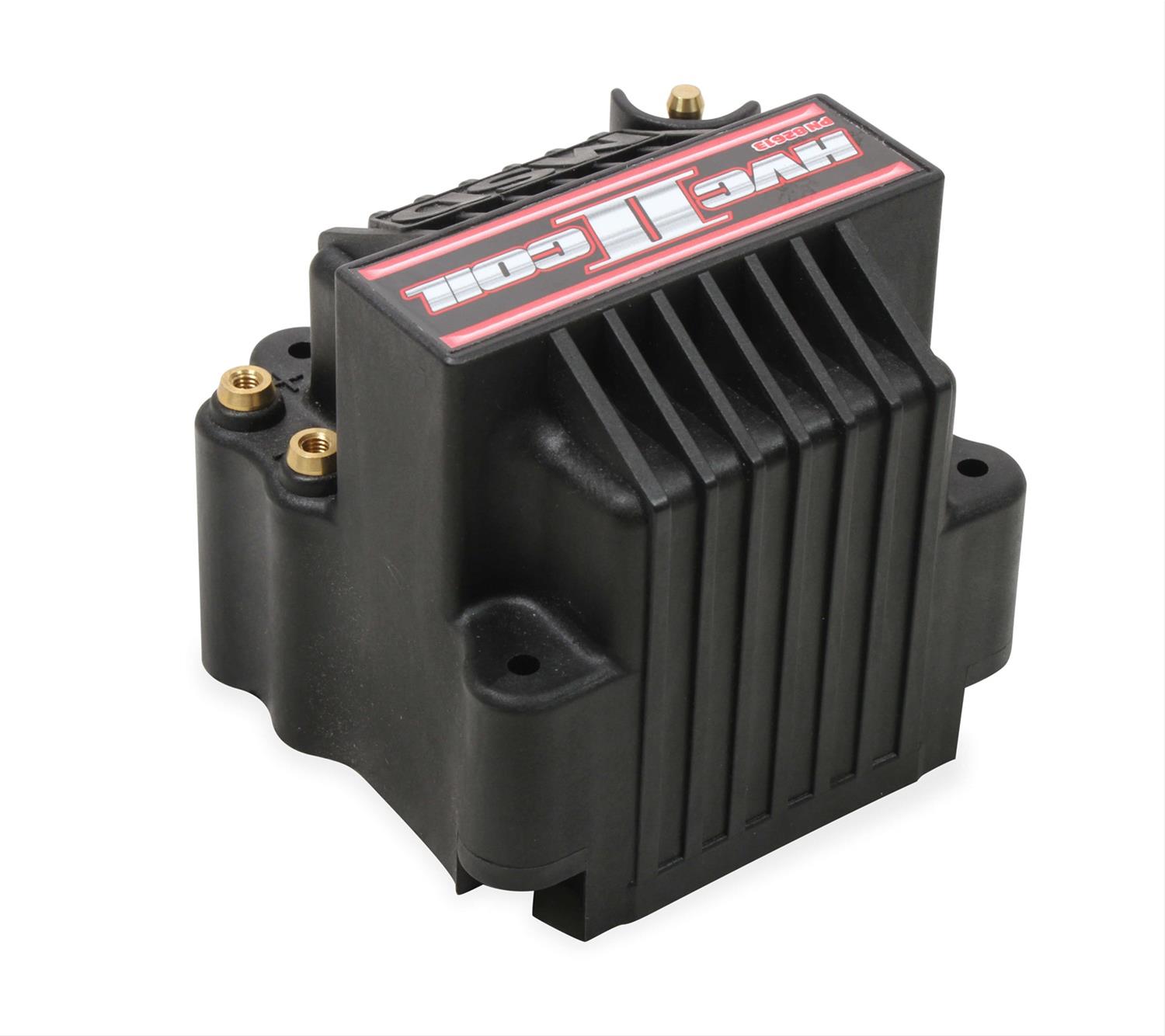

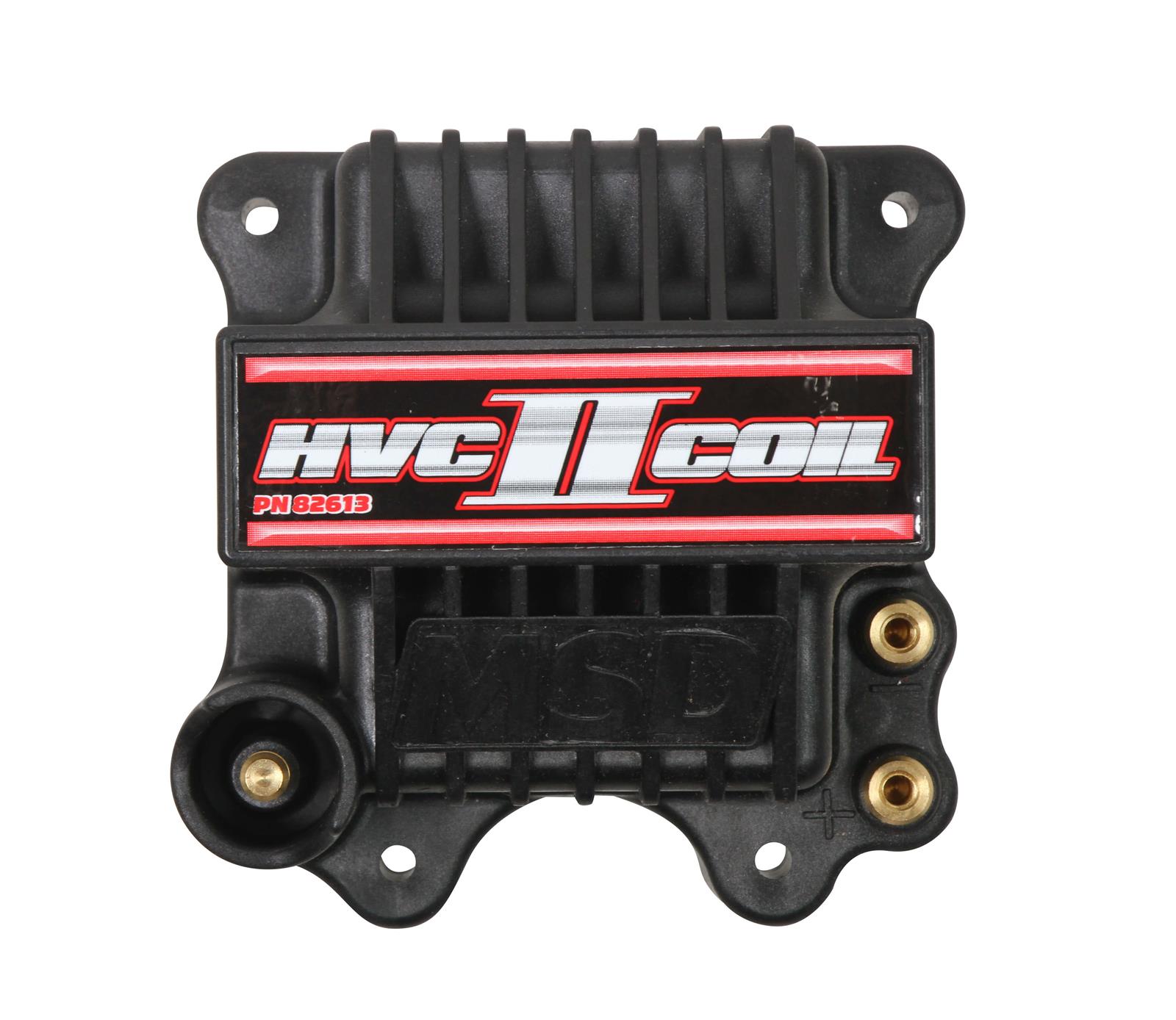

MSD HVC-2 coils utilize an iron U-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material. That means it has incredible dielectric capabilities at high temperatures. The housing features far-spaced brass primary terminals, and a well-protected secondary tower for increased spark isolation. HVC-2 coils are designed for use with MSD 7 Series ignitions.Brand: MSD Ignition
Manufacturer's Part Number: 82613
Part Type: Ignition Coils
Product Line: MSD HVC-2 Coils
HP Direct Part Number: MSD-82613
UPC: 085132826131
Coil Style: Remote mount
Primary Resistance: 0.016 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 70:1
Secondary Resistance: 30.00K ohms
Inductance: 0.25 mH
Peak Current: 2 amps
Spark Duration: 150 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Special Attention: Coil is for drag racing applications only. For use with MSD 7 or 8 Series ignition controls.
Manufacturer's Part Number: 82613
Part Type: Ignition Coils
Product Line: MSD HVC-2 Coils
HP Direct Part Number: MSD-82613
UPC: 085132826131
Coil Style: Remote mount
Primary Resistance: 0.016 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 70:1
Secondary Resistance: 30.00K ohms
Inductance: 0.25 mH
Peak Current: 2 amps
Spark Duration: 150 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Special Attention: Coil is for drag racing applications only. For use with MSD 7 or 8 Series ignition controls.
