Description
Multi-port EFI systems require a stable fuel supply to maintain the best performance throughout the engine's rpm range.

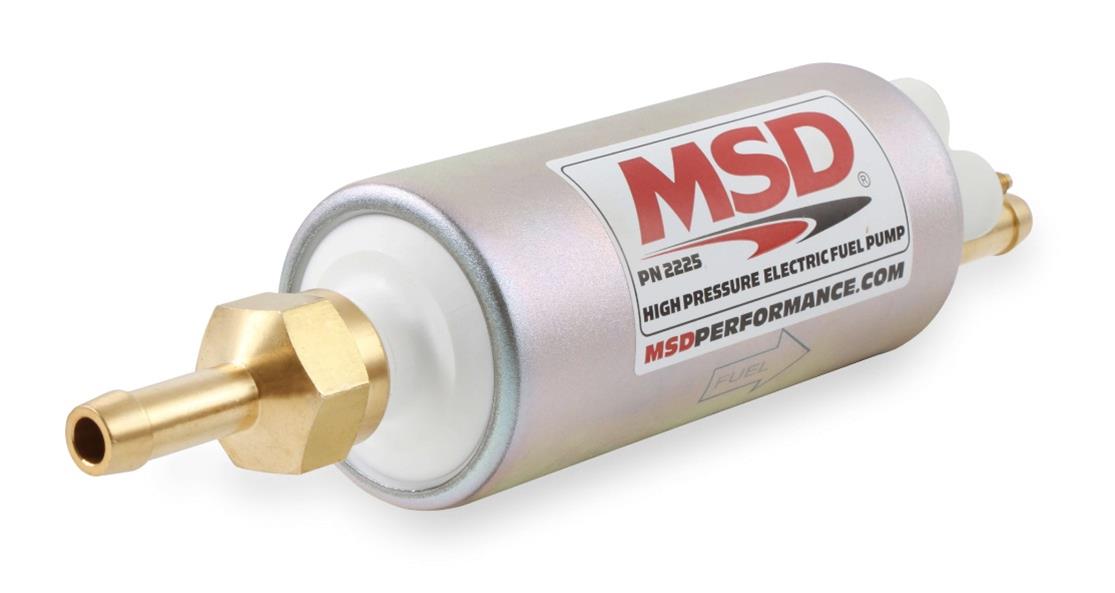

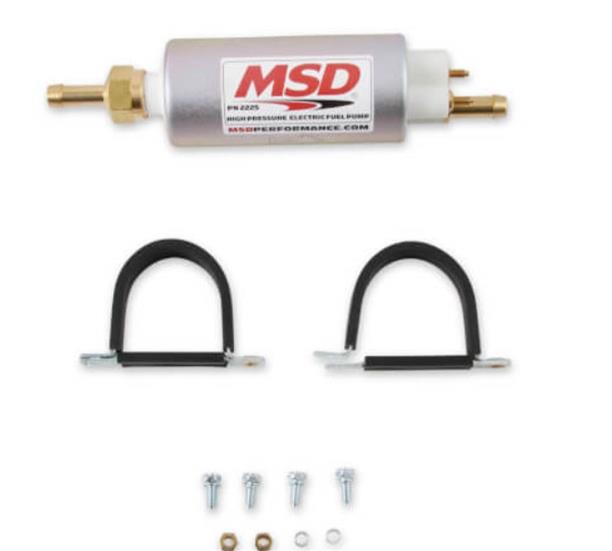

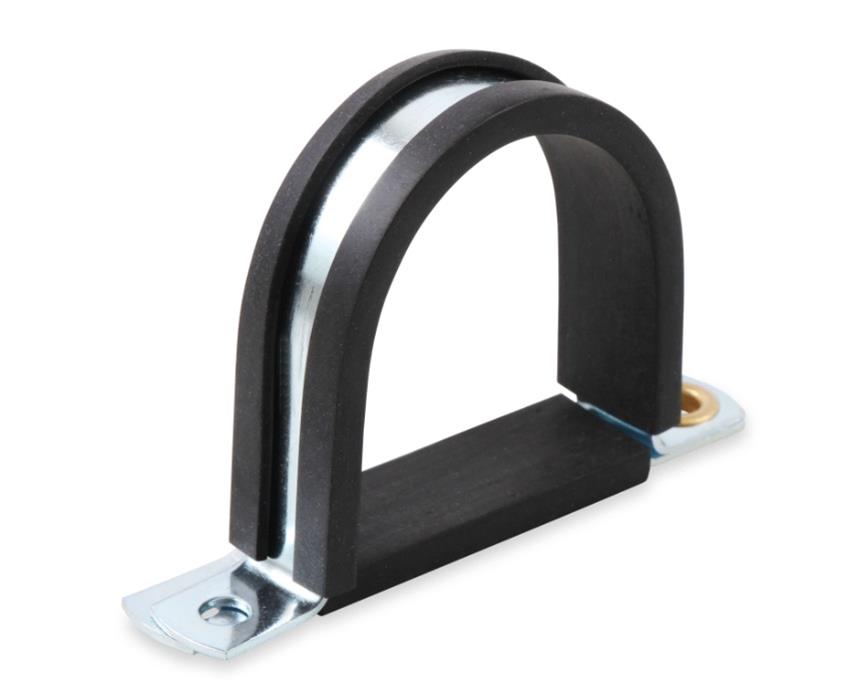

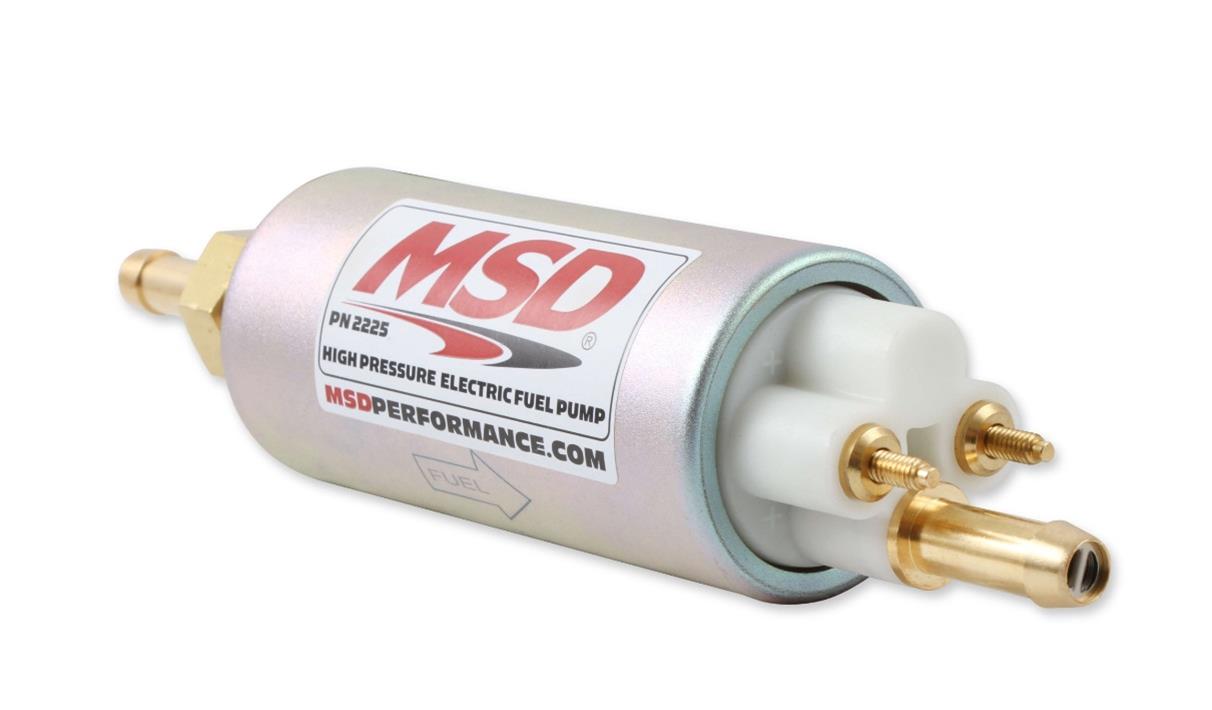

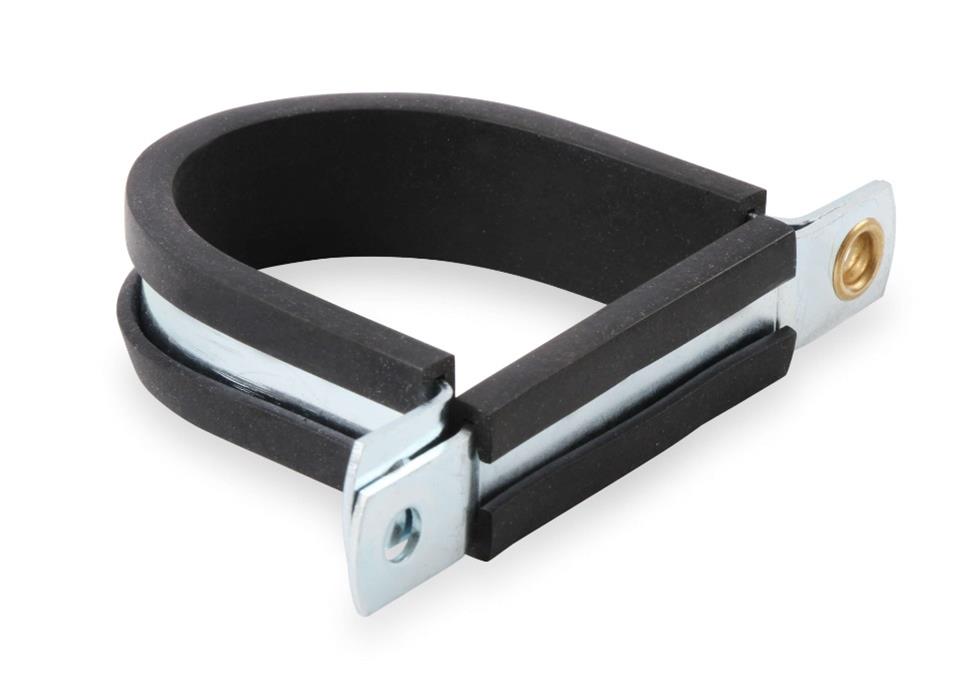

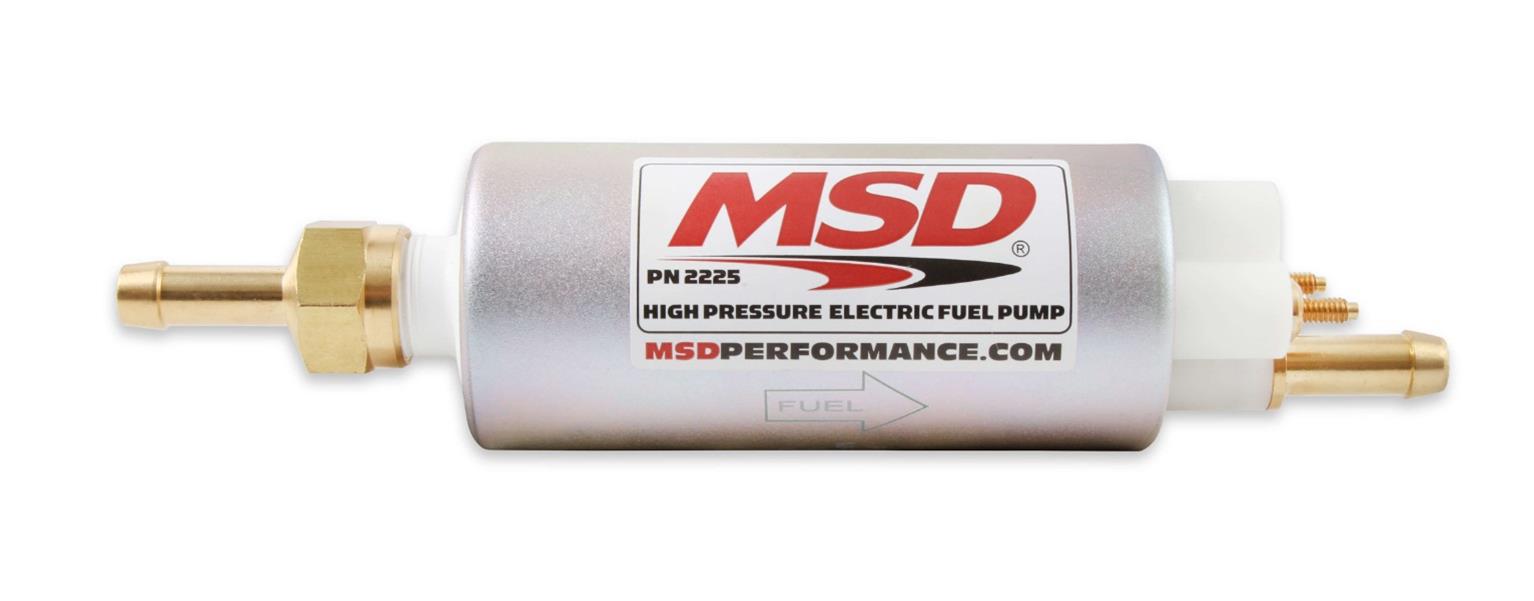

MSD high-pressure, high-flow fuel pumps feature a roller vane pump mechanism, which is extremely resistant to clogging and jamming. The pumps mount in-line (out of the tank) with two supplied cushioned clamps for a quick and sturdy installation. The wire terminals feature brass studs for secure connections. These MSD pumps are ideal as "boosters" for nitrous oxide applications, or as stand-alone pumps for multi-port EFI systems on engines up to approximately 500 hp.Brand: MSD Ignition
Manufacturer's Part Number: 2225
Part Type: Fuel Pumps
Product Line: MSD High-Pressure Electric Fuel Pumps
HP Direct Part Number: MSD-2225
UPC: 085132022250
Fuel Pump Type: Electric external
Flow Rate: 45 gph/170 lph
Fuel Pressure (psi): 60 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: 3/8 in.
Inlet Quantity: 1
Inlet Attachment: Hose barb
Fuel Pump Outlet Size: 3/8 in.
Outlet Quantity: 1
Outlet Attachment: Hose barb
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
MSD high-pressure, high-flow fuel pumps feature a roller vane pump mechanism, which is extremely resistant to clogging and jamming. The pumps mount in-line (out of the tank) with two supplied cushioned clamps for a quick and sturdy installation. The wire terminals feature brass studs for secure connections. These MSD pumps are ideal as "boosters" for nitrous oxide applications, or as stand-alone pumps for multi-port EFI systems on engines up to approximately 500 hp.Brand: MSD Ignition
Manufacturer's Part Number: 2225
Part Type: Fuel Pumps
Product Line: MSD High-Pressure Electric Fuel Pumps
HP Direct Part Number: MSD-2225
UPC: 085132022250
Fuel Pump Type: Electric external
Flow Rate: 45 gph/170 lph
Fuel Pressure (psi): 60 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: 3/8 in.
Inlet Quantity: 1
Inlet Attachment: Hose barb
Fuel Pump Outlet Size: 3/8 in.
Outlet Quantity: 1
Outlet Attachment: Hose barb
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
