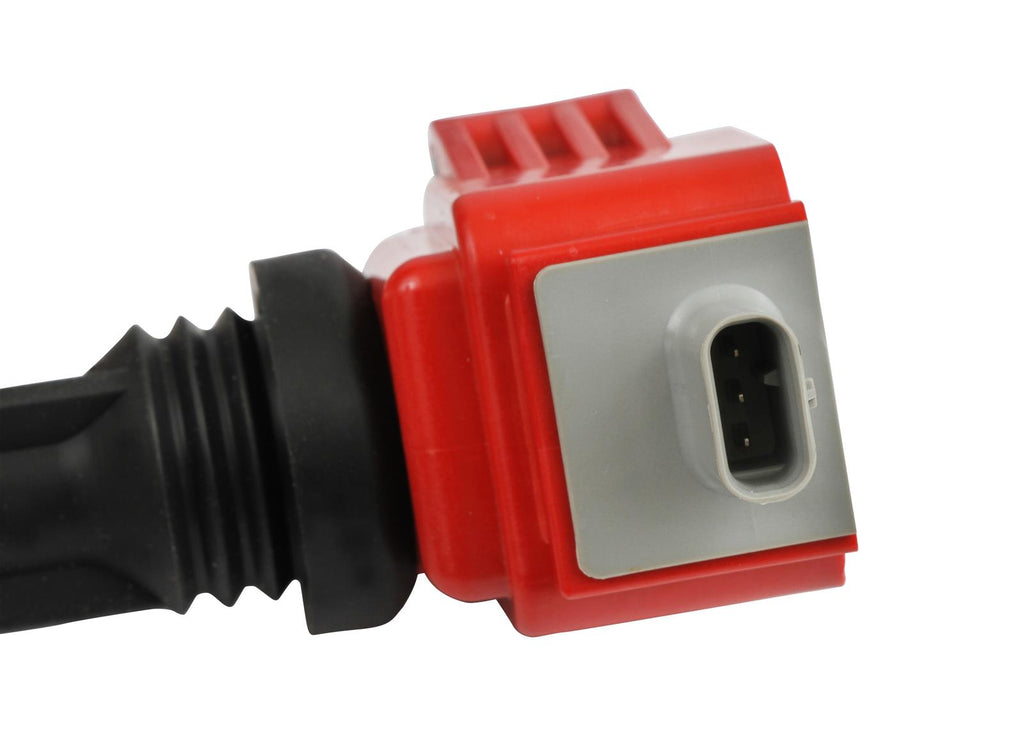

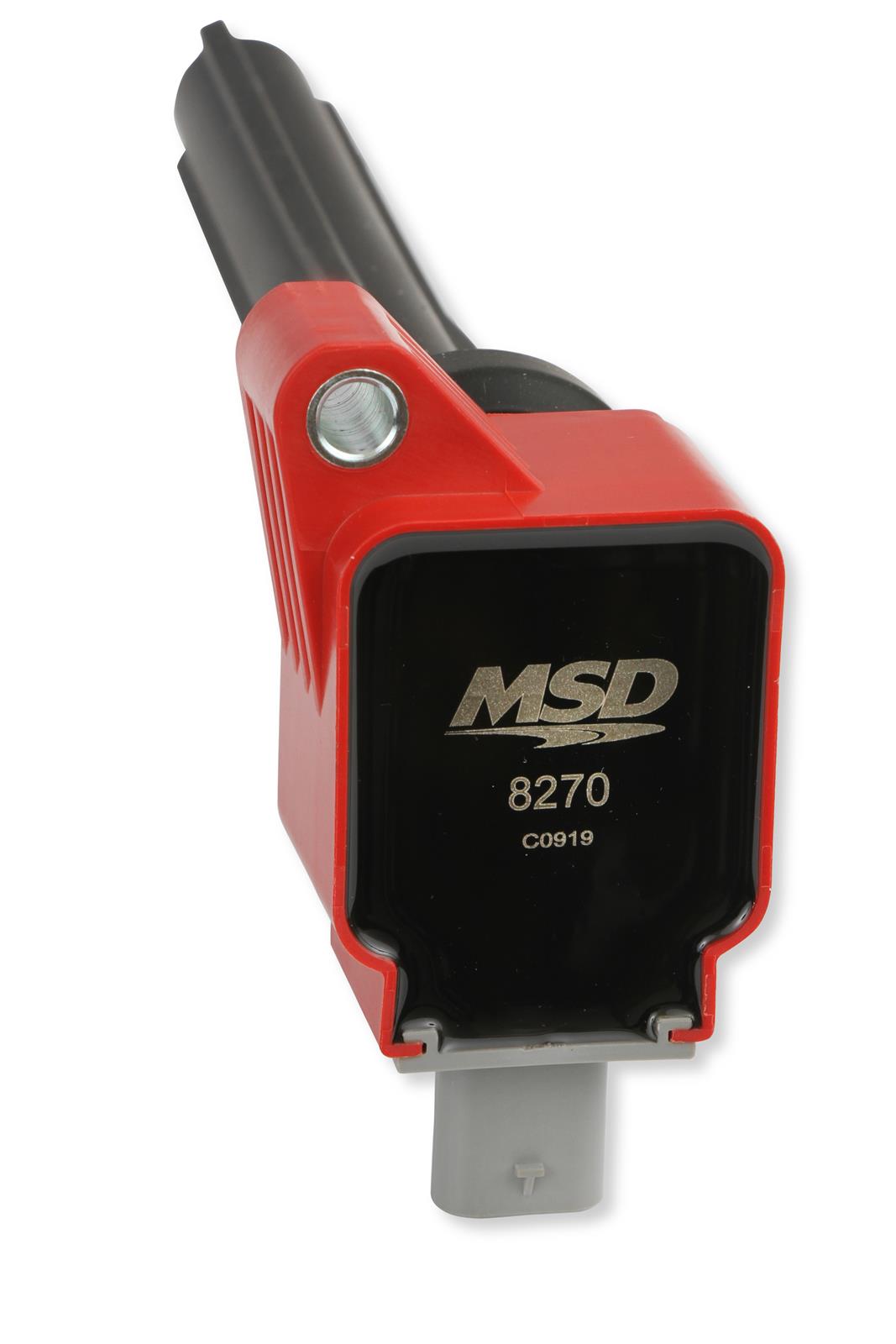

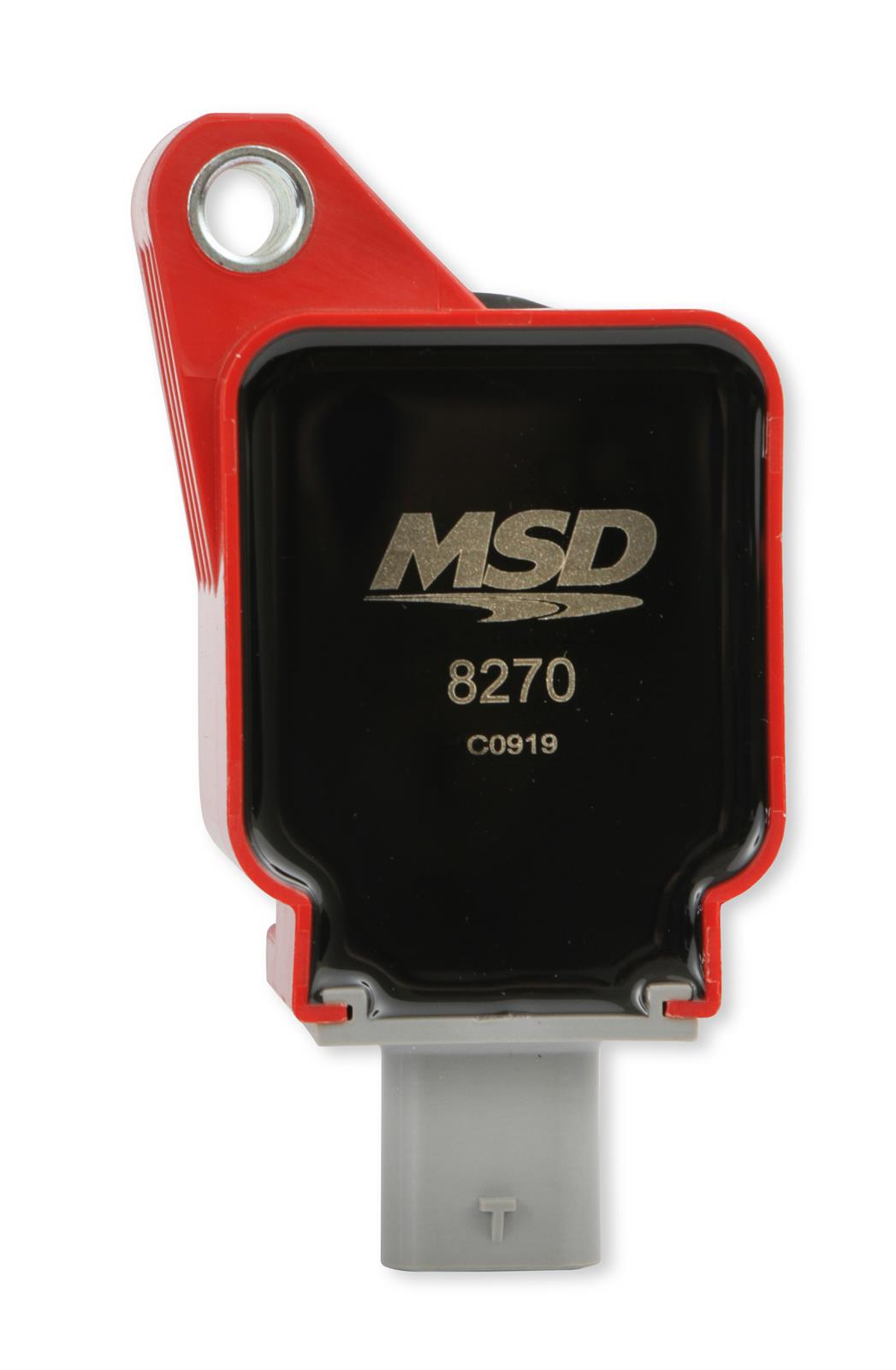

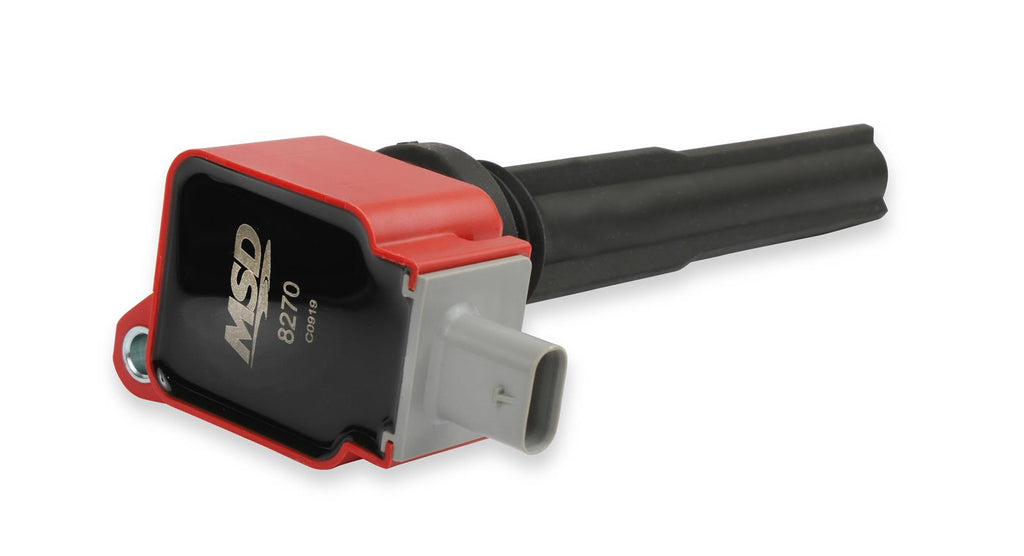

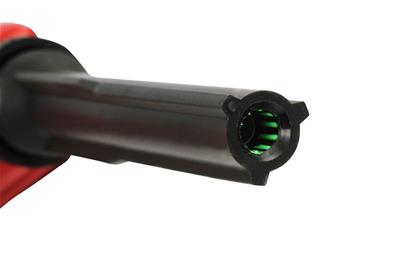

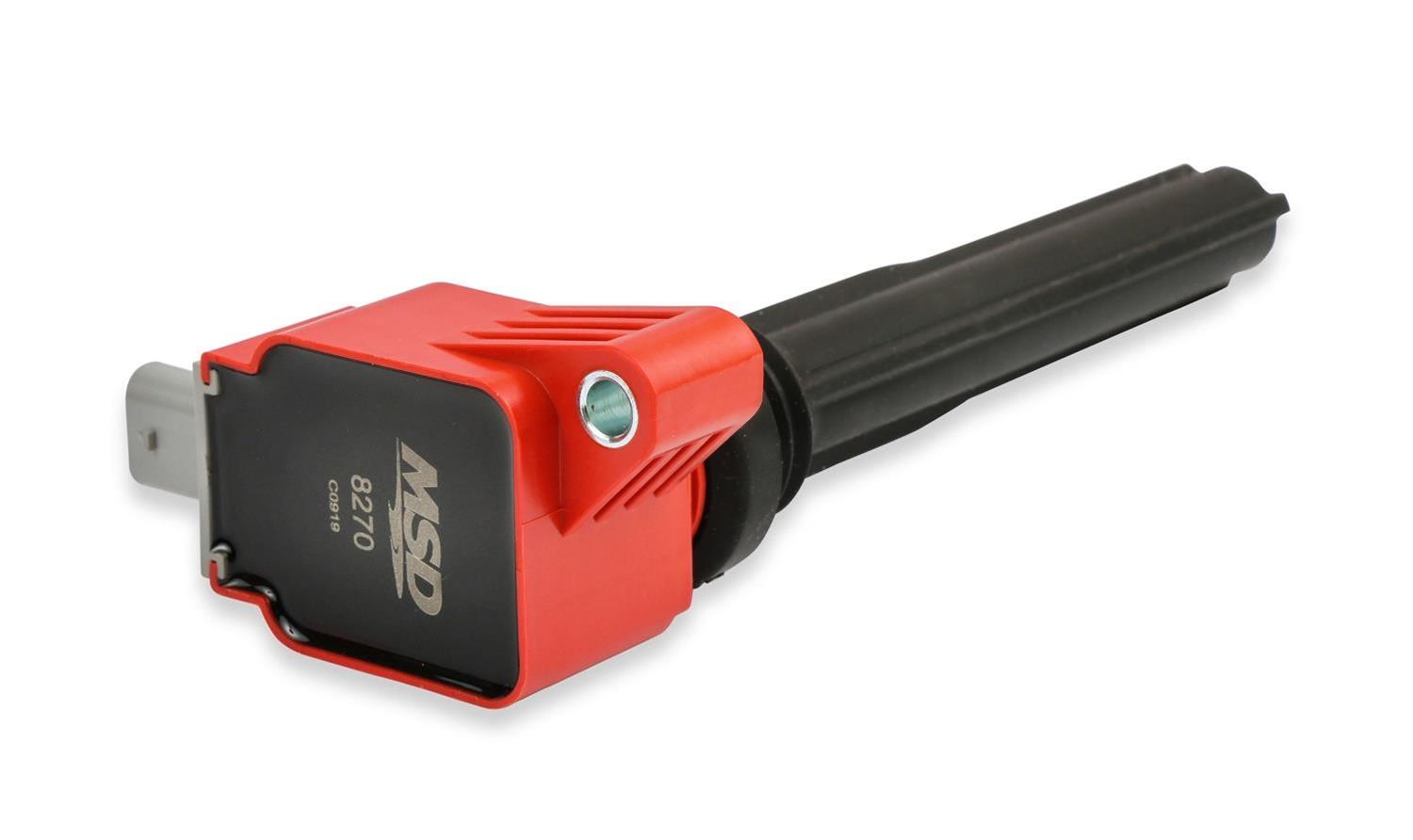

MSD Ford Blaster Coil-on-Plug Ignition Coil Packs 8270

Brand: MSD Ignition
Manufacturer's Part Number: 8270
Part Type: Ignition Coils
Product Line: MSD Ford Blaster Coil-on-Plug Ignition Coil Packs
Automotive Fittings Part Number: MSD-8270
UPC: 090127070307
Coil Style: Coil pack
Primary Resistance: 0.500 ohms
Coil Internal Construction: Epoxy
Coil Color: Red
Maximum Voltage: 46,000 V
Turns Ratio: 101:1
Secondary Resistance: 6.20K ohms
Inductance: 1.70 mH
Peak Current: 108 mA
Spark Duration: 2,300 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular
Quantity: Sold individually.
Description:
These MSD Ford Blaster Coil-on-Plug ignition coil packs feature a patented winding design and direct bolt-in replacement. The improved spark energy and voltage of the coil packs, combined with their reliability, have made them a favorite of performance enthusiasts. They are designed as direct bolt-in replacement coils for many SOHC Ford V8 modular engines. The housing and installation are the same as the factory coils, but that is where the similarity ends. Inside the MSD coil packs, engineers used better quality materials to assemble the primary and secondary windings. The MSD Ford Blaster Coil-on-Plug ignition coil packs take the spark energy right out of the coil and put it across the plug gap to improve the combustion and output of the engine.
