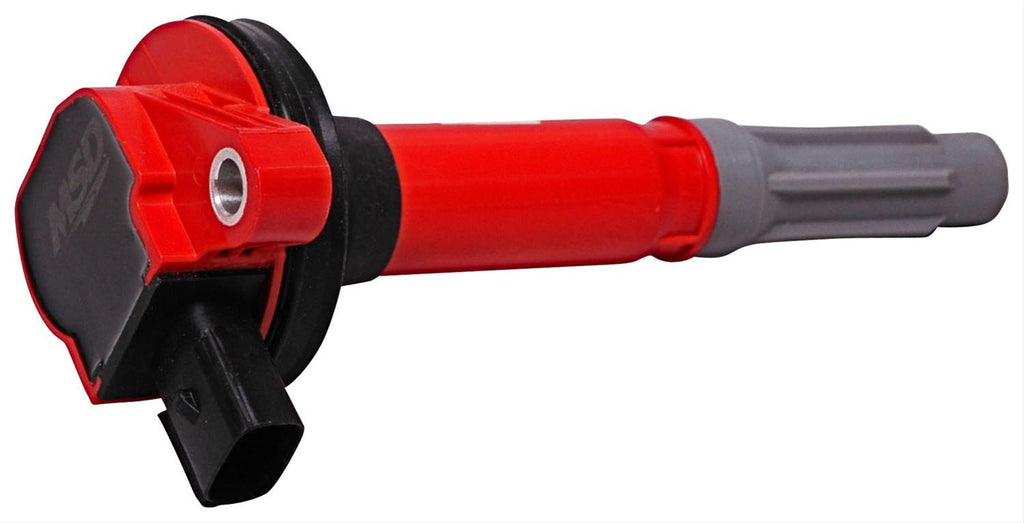

MSD Ford Blaster Coil-on-Plug Ignition Coil Packs 8248

These MSD Ford Blaster Coil-on-Plug ignition coil packs feature a patented winding design and direct bolt-in replacement. The improved spark energy and voltage of the coil packs, combined with their reliability, have made them a favorite of performance enthusiasts. They are designed as direct bolt-in replacement coils for many SOHC Ford V8 modular engines. The housing and installation are the same as the factory coils, but that is where the similarity ends. Inside the MSD coil packs, engineers used better quality materials to assemble the primary and secondary windings. The MSD Ford Blaster Coil-on-Plug ignition coil packs take the spark energy right out of the coil and put it across the plug gap to improve the combustion and output of the engine.Brand: MSD Ignition
Manufacturer's Part Number: 8248
Part Type: Ignition Coils
Product Line: MSD Ford Blaster Coil-on-Plug Ignition Coil Packs
HP Direct Part Number: MSD-8248
UPC: 085132082483
Coil Style: Coil pack
Primary Resistance: 0.510 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Red
Maximum Voltage: 44,000 V
Turns Ratio: 80:1
Inductance: 1.90 mH
Peak Current: 100 mA
Spark Duration: 1.2 mS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: Does not fit engines built after 2/23/16 do to electrical connector change, including crate engines.
