MSD Digital E-Curve Pro Billet Distributors 8394

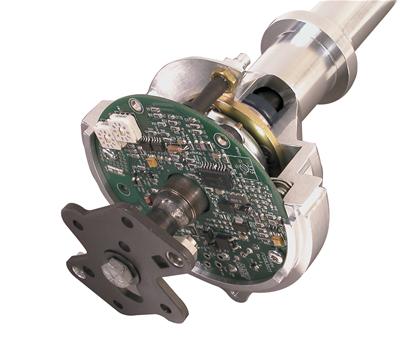

MSD Digital E-Curve distributors will drop right into your engine and fire up with three simple connections! Not only are there no external controls or boxes to mount and connect, but you can set a timing curve with the twist of a rotary dial! That's right, no more springs or stop bushings to fumble with. A new digital module lets you select from 20 different "centrifugal" curves and five vacuum curves--that's 100 combinations! Simply remove the cap to access the rotary dials and select a curve to match your application. You can also set an rpm limit that will protect your engine from over-rev damage caused by a missed shift or driveline failure.Brand: MSD Ignition
Manufacturer's Part Number: 8394
Part Type: Distributors
Product Line: MSD Digital E-Curve Pro Billet Distributors
HP Direct Part Number: MSD-8394
UPC: 085132083947
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Small cap
Ignition Coil Included: No
Ignition Module Included: Yes
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Electronic and vacuum
Ignition Box Required: No
Mechanical Tach Drive: No
Slip Collar: No
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Housing Material: Aluminum
Housing Finish: Polished
Marine Use: No
Remanufactured: No
Quantity: Sold individually.
Notes: Distributor is 8.5 in. tall from engine to top of distributor cap.
