Description

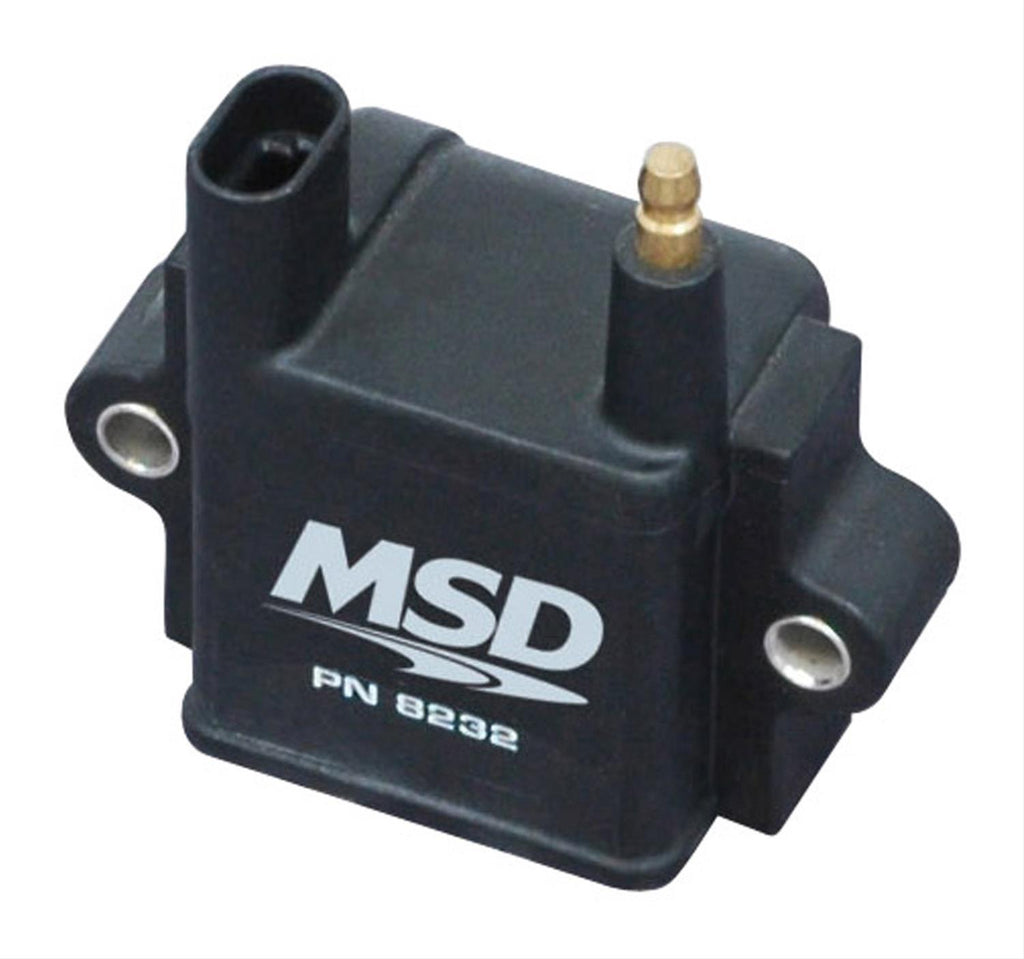

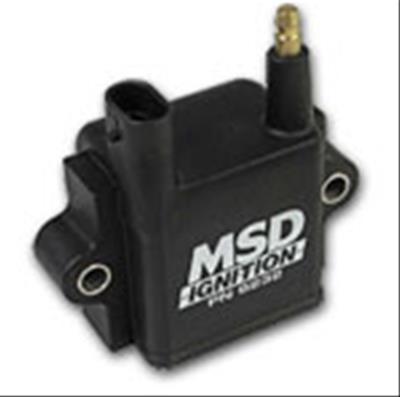

These coils are designed to work with your MSD Digital CPC ignition system. They're direct replacements, so you can be assured of continued accuracy at any rpm, and consistent performance from your setup.Brand: MSD Ignition
Manufacturer's Part Number: 8232
Part Type: Ignition Coils
Product Line: MSD Digital CPC Replacement Ignition Coils
HP Direct Part Number: MSD-8232
UPC: 085132082322
Coil Style: Coil pack
Primary Resistance: 0.090 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 43,000 V
Turns Ratio: 85:1
Secondary Resistance: 988.00K ohms
Inductance: 3.70 mH
Peak Current: 800 mA
Spark Duration: 380 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 4.000 in.
Length (in.): 4.000 in.
Width (in.): 3.000 in.
Quantity: Sold individually.
Manufacturer's Part Number: 8232
Part Type: Ignition Coils
Product Line: MSD Digital CPC Replacement Ignition Coils
HP Direct Part Number: MSD-8232
UPC: 085132082322
Coil Style: Coil pack
Primary Resistance: 0.090 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 43,000 V
Turns Ratio: 85:1
Secondary Resistance: 988.00K ohms
Inductance: 3.70 mH
Peak Current: 800 mA
Spark Duration: 380 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 4.000 in.
Length (in.): 4.000 in.
Width (in.): 3.000 in.
Quantity: Sold individually.
