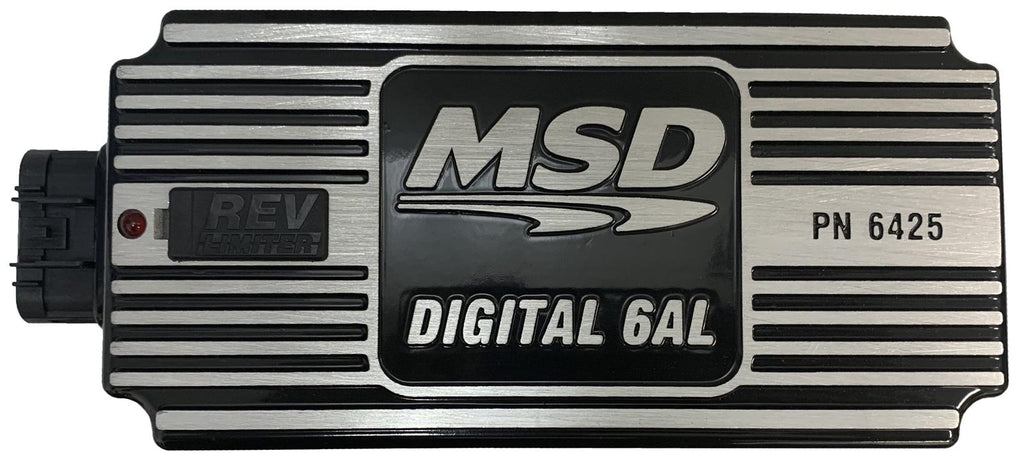

MSD Digital 6AL Ignition Controllers 64253

Advance with the digital power of your popular favorite--MSD 6AL ignitions. With less power draw and higher output, MSD moves you with "the fire to drive" in a digital powerhouse! Inside microprocessors, updated circuits and efficient components monitor and handle every firing and rev limit to produce more power while pulling less current. Don't worry; features that made their 6AL boxes your first choice remain but with improved output--more than135mJ of spark energy for every firing with 530+ volts to the coil! And, to go with the new power, a new look. These digital 6AL ignition controllers are sleek with a lower profile. Wiring is routed out one end through a sealed and locked connector and two rotary dials to set rpm limit are positioned right on top--easier installation, super easy access and a clean, neat appearance under the hood. Controllers are supplied with wiring harness and components you need for install plus, vibration mounts. Increased output and proven multiple-spark power--MSD digital 6AL ignition controllers are a definite win-win!Brand: MSD Ignition
Manufacturer's Part Number: 64253
Part Type: Ignition Boxes
Product Line: MSD Digital 6AL Ignition Controllers
HP Direct Part Number: MSD-64253
UPC: 085132642533
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 520-540 V
Current Draw: 1.1 amps per 1,000 rpm
Spark Output (millijoules): 135-145 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 15 V
Length (in.): 8.000 in.
Height (in.): 1.875 in.
Width (in.): 4.000 in.
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
CARB EO Number(s): D-40-43
Emissions: California EO Approved
