Description
Brand: MSD Ignition
Manufacturer's Part Number: 825683
Part Type: Ignition Coils
Product Line: MSD Blaster OEM Replacement Coils
Automotive Fittings Part Number: MSD-825683
UPC: 085132130115
Coil Style: Coil pack
Primary Resistance: 0.600 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 35,000 V
Turns Ratio: 63:1
Secondary Resistance: 7.20K ohms
Inductance: 3.60 mH
Peak Current: 72 mA
Spark Duration: 1,150 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square

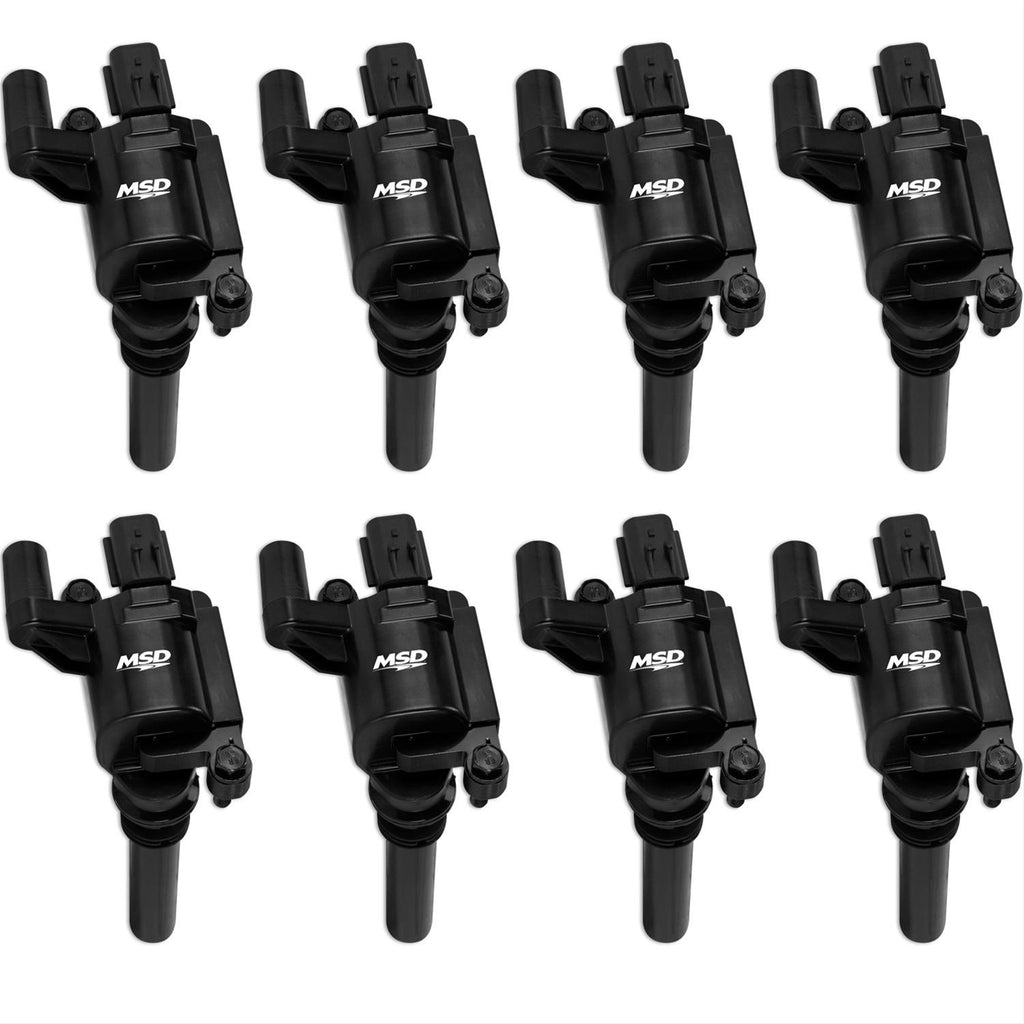

Quantity: Sold as a set of 8.
Notes: All specifications listed are measured at 14 V.
CARB EO Number(s): D-40-42
Emissions: California EO Approved
Description:
When it comes to late model performance parts, nothing beats bolt-on and direct connection components—especially when they improve performance like these new replacement MSD Blaster ignition coils. They're designed with improved materials and windings to produce a stronger spark. This improved spark helps burn the fuel mixture more efficiently, resulting in smooth idle and heightened mid-range rpm power. Choose the OEM replacement designed for your year/make/model application.
Manufacturer's Part Number: 825683
Part Type: Ignition Coils
Product Line: MSD Blaster OEM Replacement Coils
Automotive Fittings Part Number: MSD-825683
UPC: 085132130115
Coil Style: Coil pack
Primary Resistance: 0.600 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 35,000 V
Turns Ratio: 63:1
Secondary Resistance: 7.20K ohms
Inductance: 3.60 mH
Peak Current: 72 mA
Spark Duration: 1,150 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold as a set of 8.
Notes: All specifications listed are measured at 14 V.
CARB EO Number(s): D-40-42
Emissions: California EO Approved
Description:
When it comes to late model performance parts, nothing beats bolt-on and direct connection components—especially when they improve performance like these new replacement MSD Blaster ignition coils. They're designed with improved materials and windings to produce a stronger spark. This improved spark helps burn the fuel mixture more efficiently, resulting in smooth idle and heightened mid-range rpm power. Choose the OEM replacement designed for your year/make/model application.
