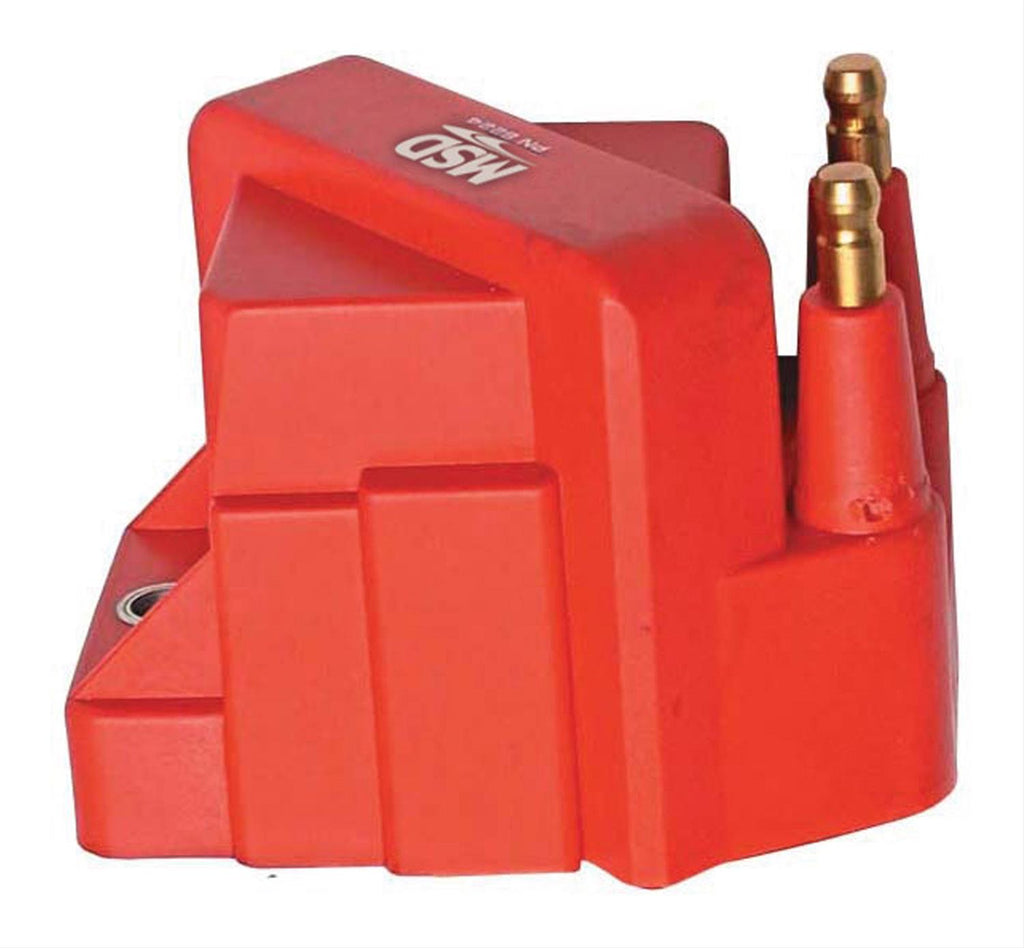

MSD Blaster OEM Replacement Coils 8224

When it comes to late model performance parts, nothing beats bolt-on and direct connection components—especially when they improve performance like these new replacement MSD Blaster ignition coils. They're designed with improved materials and windings to produce a stronger spark. This improved spark helps burn the fuel mixture more efficiently, resulting in smooth idle and heightened mid-range rpm power. Choose the OEM replacement designed for your year/make/model application.Brand: MSD Ignition
Manufacturer's Part Number: 8224
Part Type: Ignition Coils
Product Line: MSD Blaster OEM Replacement Coils
HP Direct Part Number: MSD-8224
UPC: 085132082247
Coil Style: Coil pack
Primary Resistance: 0.350 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 40,000 V
Turns Ratio: 80:1
Secondary Resistance: 7.80K ohms
Inductance: 4.20 mH
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 4.000 in.
Length (in.): 4.000 in.
Width (in.): 3.000 in.
Quantity: Sold individually.
Notes: Designed specifically for General Motors two tower DIS ignitions.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
