Description

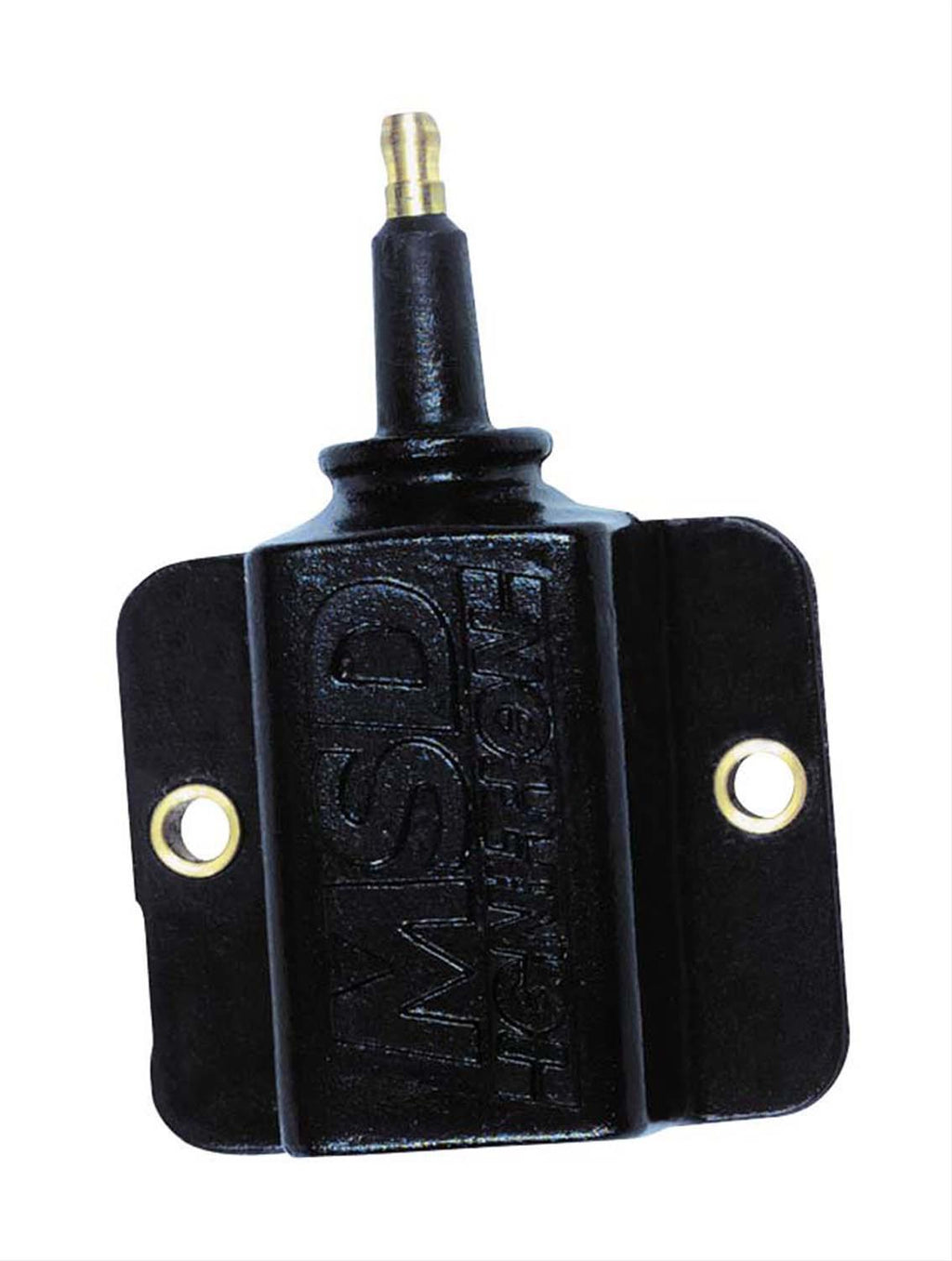

MSD Blaster DIS ignition coils equip your racing machine with the voltage power it needs! Designed for their DIS ignition systems, these multi-channel coil drivers provide the incredible voltage for all-out racecars. They feature a quick rise time and low resistance, plus they can produce a spark with enough energy to ignite the fuel mix in any cylinder.
Brand: MSD Ignition
Manufacturer's Part Number: 8230
Part Type: Ignition Coils
Product Line: MSD Blaster DIS Racing Ignition Coils
HP Direct Part Number: MSD-8230
UPC: 085132082308
Coil Style: Remote mount
Primary Resistance: 0.080 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 37,000 V
Turns Ratio: 70:1
Secondary Resistance: 1.80K ohms
Peak Current: 570 mA
Spark Duration: 130 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 4.000 in.
Length (in.): 3.000 in.
Width (in.): 3.000 in.
Quantity: Sold individually.
Notes: Designed for engines equipped with an MSD DIS ignition system ONLY.
Brand: MSD Ignition
Manufacturer's Part Number: 8230
Part Type: Ignition Coils
Product Line: MSD Blaster DIS Racing Ignition Coils
HP Direct Part Number: MSD-8230
UPC: 085132082308
Coil Style: Remote mount
Primary Resistance: 0.080 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Black
Maximum Voltage: 37,000 V
Turns Ratio: 70:1
Secondary Resistance: 1.80K ohms
Peak Current: 570 mA
Spark Duration: 130 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 4.000 in.
Length (in.): 3.000 in.
Width (in.): 3.000 in.
Quantity: Sold individually.
Notes: Designed for engines equipped with an MSD DIS ignition system ONLY.
