Description

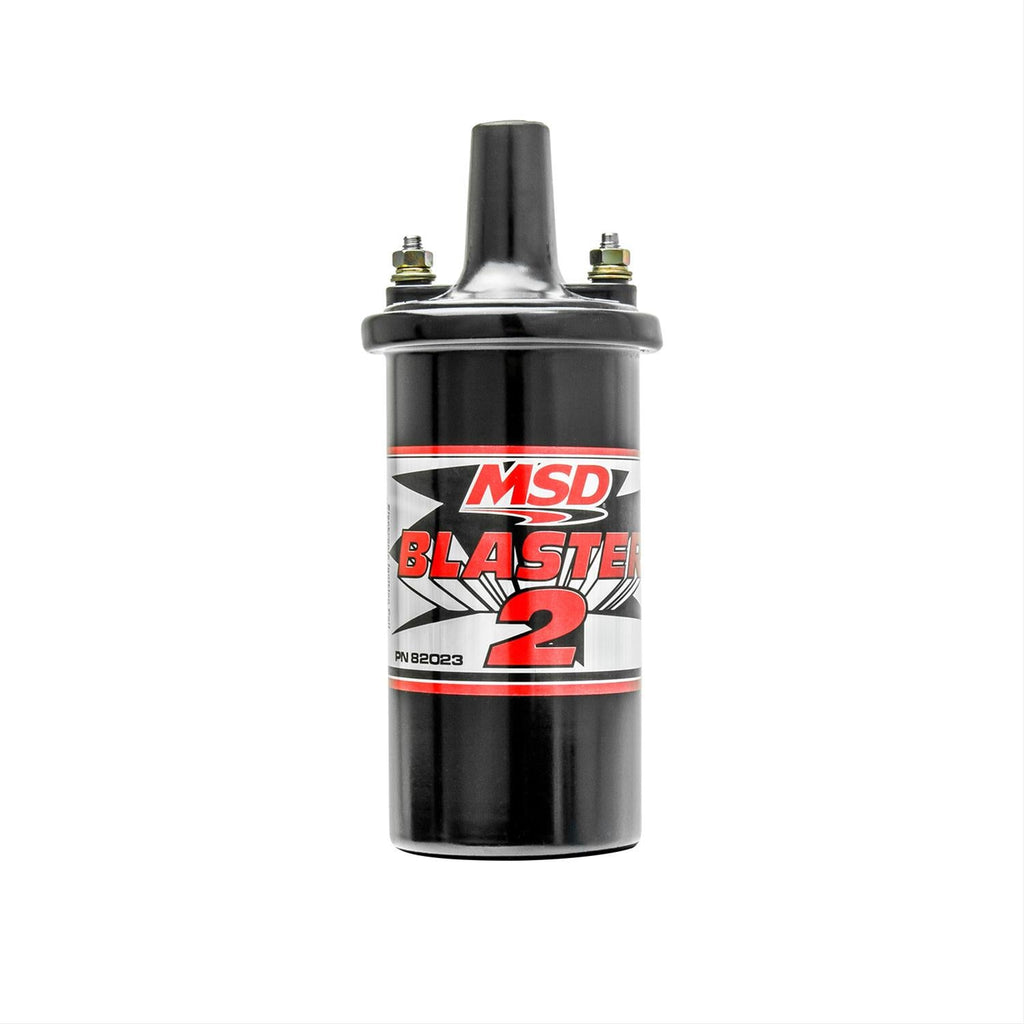

MSD Blaster coils put out 45,000 V, which are 15,000 more than stock. They also have an oil-filled metal canister and will fit stock mounting brackets.Brand: MSD Ignition
Manufacturer's Part Number: 82023
Part Type: Ignition Coils
Product Line: MSD Blaster 2 Ignition Coils
HP Direct Part Number: MSD-82023
UPC: 085132820238
Coil Style: Remote mount
Primary Resistance: 0.700 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.50K ohms
Inductance: 8.00 mH
Peak Current: 140 mA
Spark Duration: 350 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: Due to its "oil filled" design, this coil should only be mounted in a vertical (upright) position.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
Manufacturer's Part Number: 82023
Part Type: Ignition Coils
Product Line: MSD Blaster 2 Ignition Coils
HP Direct Part Number: MSD-82023
UPC: 085132820238
Coil Style: Remote mount
Primary Resistance: 0.700 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.50K ohms
Inductance: 8.00 mH
Peak Current: 140 mA
Spark Duration: 350 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: Due to its "oil filled" design, this coil should only be mounted in a vertical (upright) position.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
