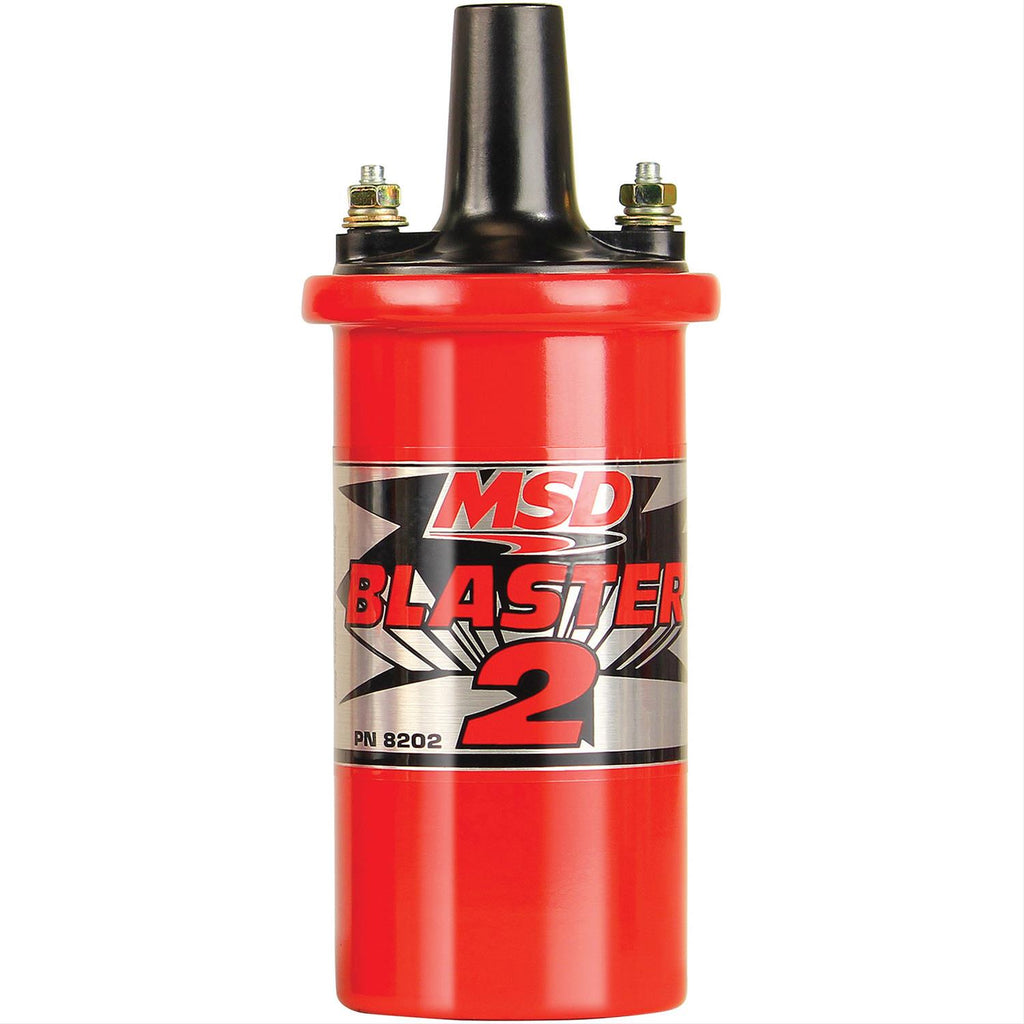

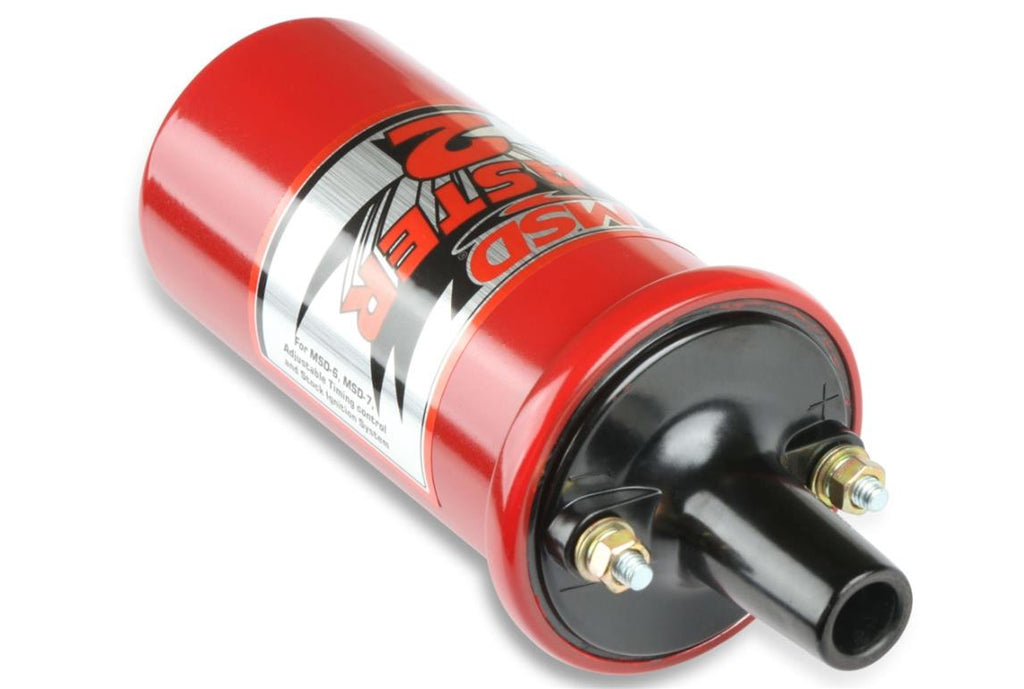

MSD Blaster 2 Ignition Coils 8202

The MSD Blaster 2 coil (MSD 8202) is engineered to significantly improve spark output over stock ignition coils, offering a maximum output of 45,000 volts. The coil, which pairs well with stock or MSD performance ignition systems, features special 100:1 windings for excellent voltage build-up. Each coil’s alkyd tower assembly offers high dielectric characteristics, while wide-spaced brass primary terminals are designed to prevent the possibility of a spark. The coil also is CARB compliant.Brand: MSD Ignition
Manufacturer's Part Number: 8202
Part Type: Ignition Coils
Product Line: MSD Blaster 2 Ignition Coils
HP Direct Part Number: MSD-8202
UPC: 085132082025
Coil Style: Remote mount
Primary Resistance: 0.700 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Female/Socket
Coil Color: Red
Maximum Voltage: 45,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.50K ohms
Inductance: 8.00 mH
Peak Current: 140 mA
Spark Duration: 350 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: This coil should only be mounted in a vertical upright position, use with an MSD ignition box.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
